Description

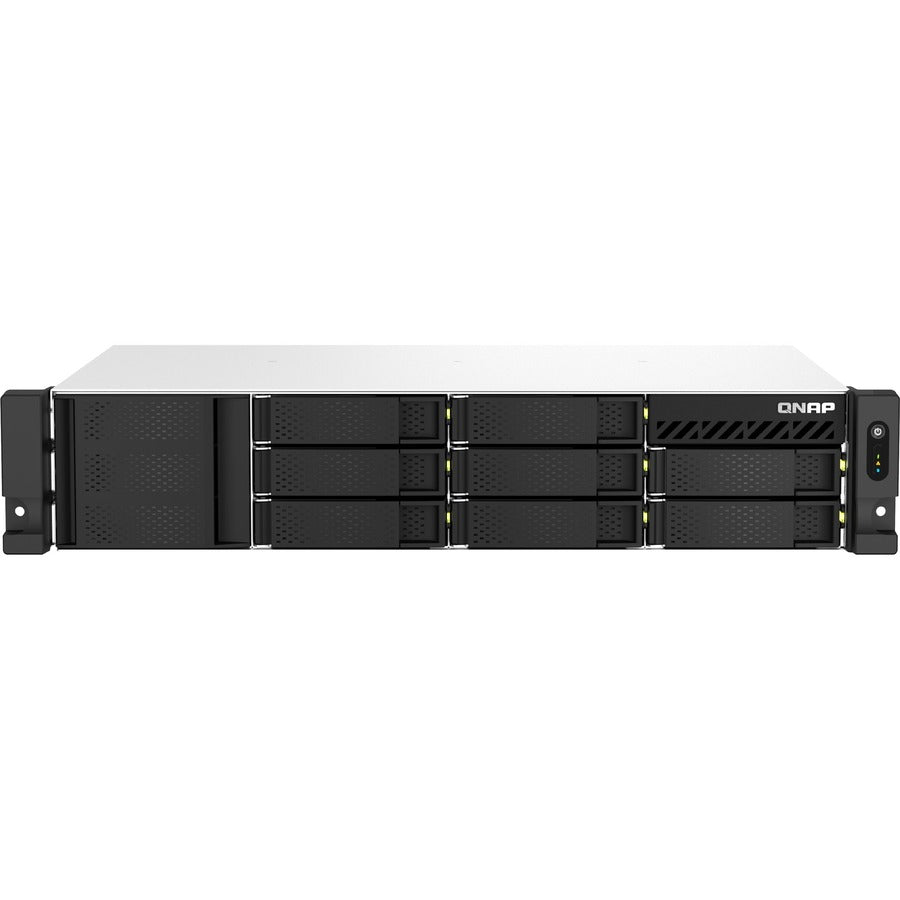

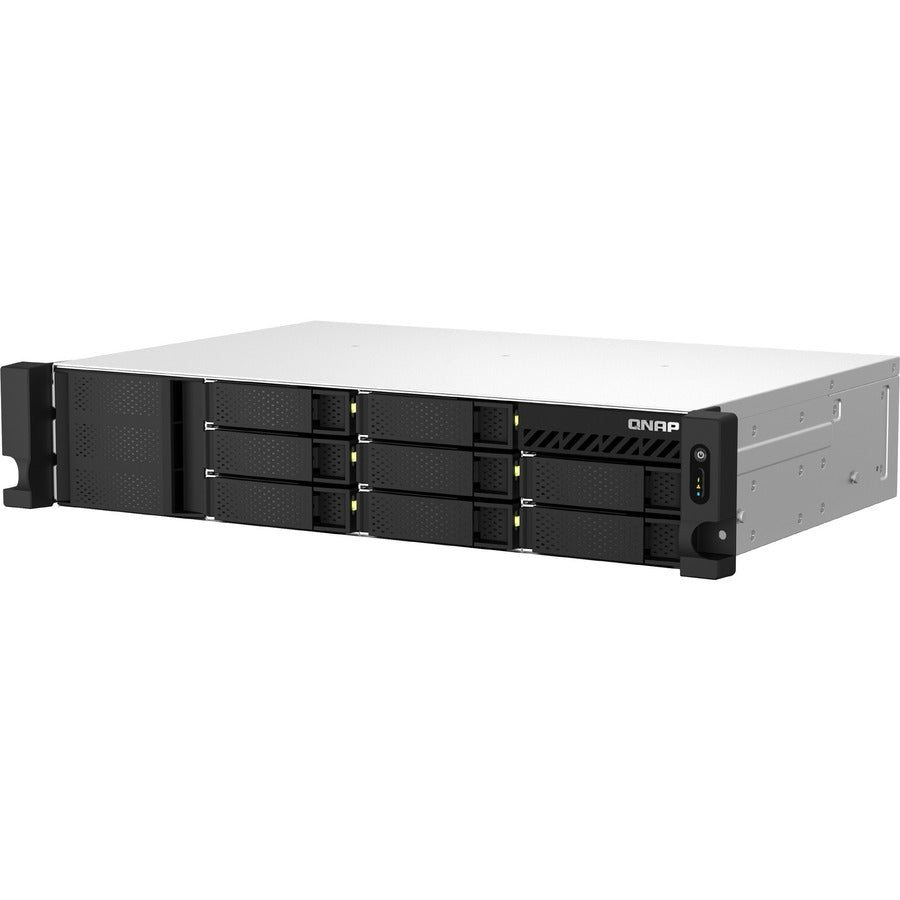

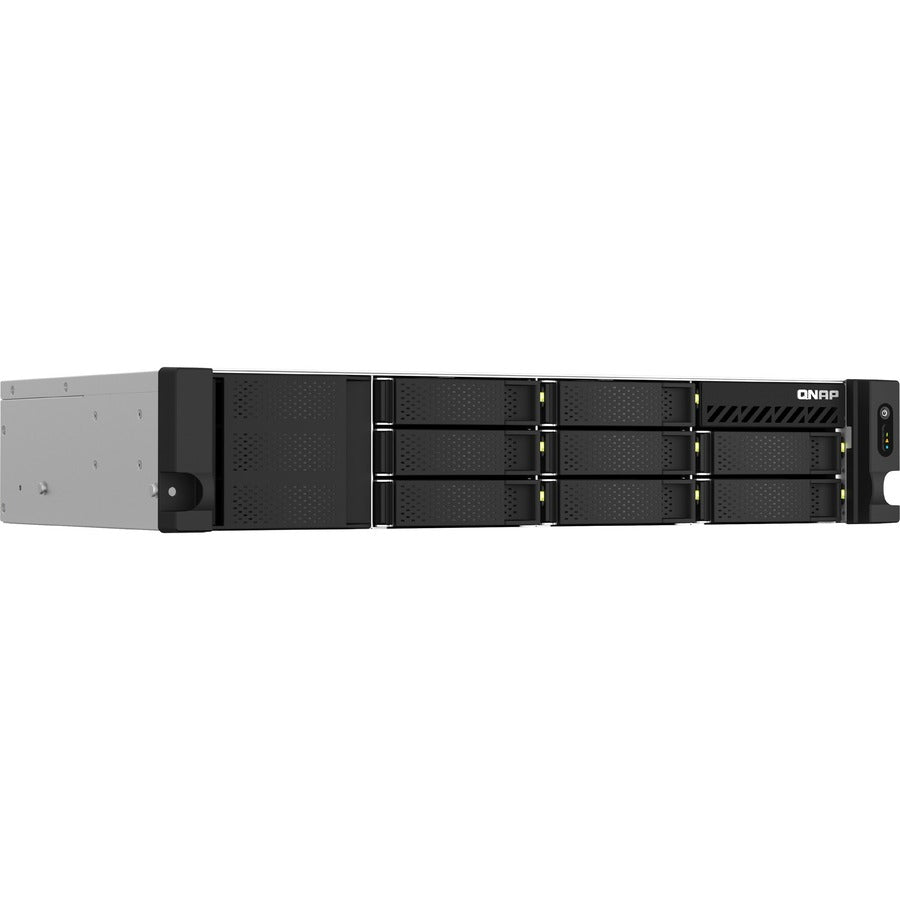

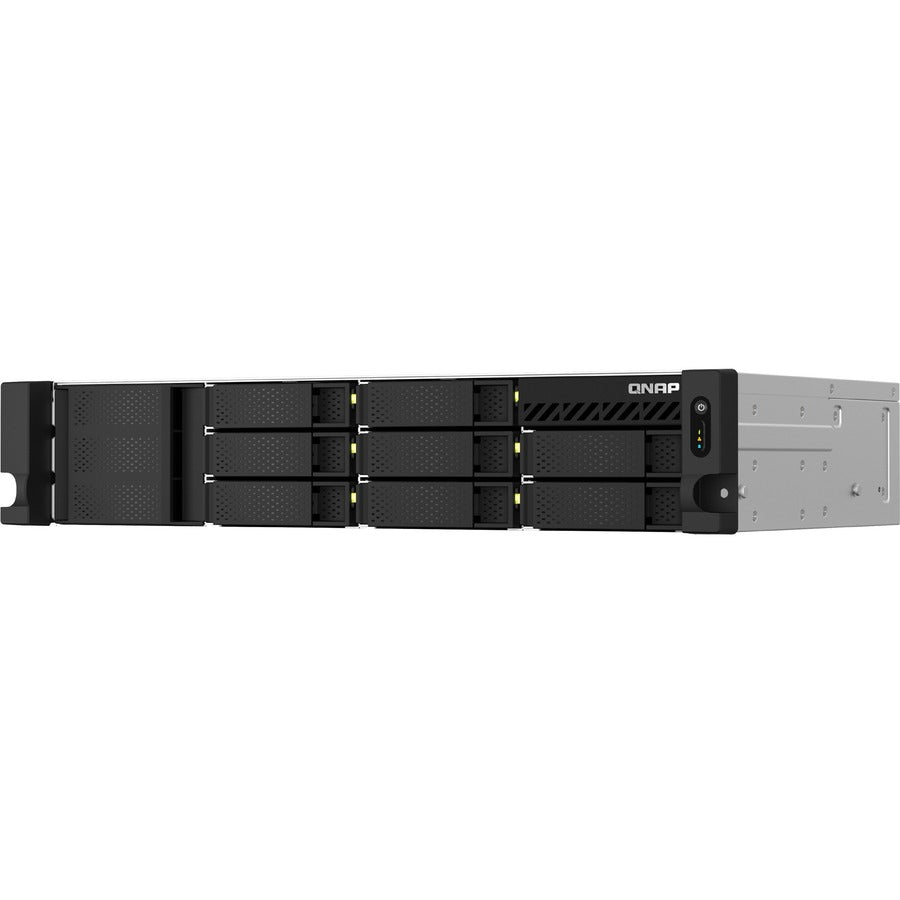

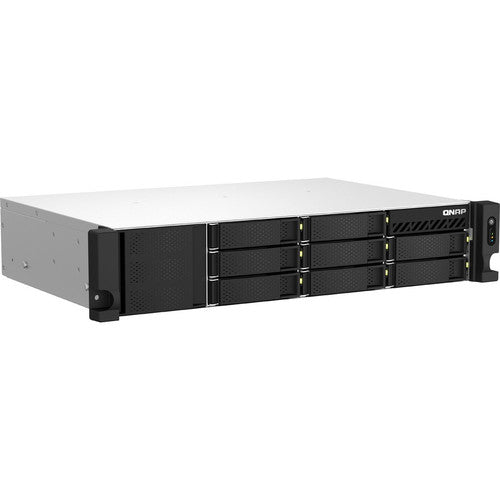

The compact 2U rackmount TS-873AeU combines an AMD Ryzen™ V1000 series V1500B quad-core/eight-thread 2.2 GHz processor and dual-2.5GbE connectivity in one chassis. Compared to its previous generation, the TS-873AeU is enhanced with two M.2 PCIe Gen3 x 1 ports for NVMe SSD caching or Edge TPU empowered AI image recognition. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-873AeU the preeminent choice to tackle resource-demanding applications and tasks, such as virtual machines or multi-user intensive access. The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling.
-
Dual-2.5GbE connectivity
Features two 2.5GbE ports. Up to 5 Gbps transfer speeds can be achieved by using port trunking.
-
PCIe expandability
Features one PCIe Gen3 x 8 port. Add extra functionality with PCIe cards, including 10/25GbE ports, QM2, or Fibre Channel.
-
Optimized SSD performance
Features two M.2 PCIe Gen3 ports to install NVMe SSDs and empower Qtier™ and SSD caching technology.
-
Hybrid cloud storage
Supports block-based and file-based cloud storage gateways with local caching for low-latency access to cloud data.
-
Virtual machine applications
Host multiple virtual machines and containers to run a wide range of applications.
-
2U Short depth design
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.
2U Short depth design for up to 38% reduction in size

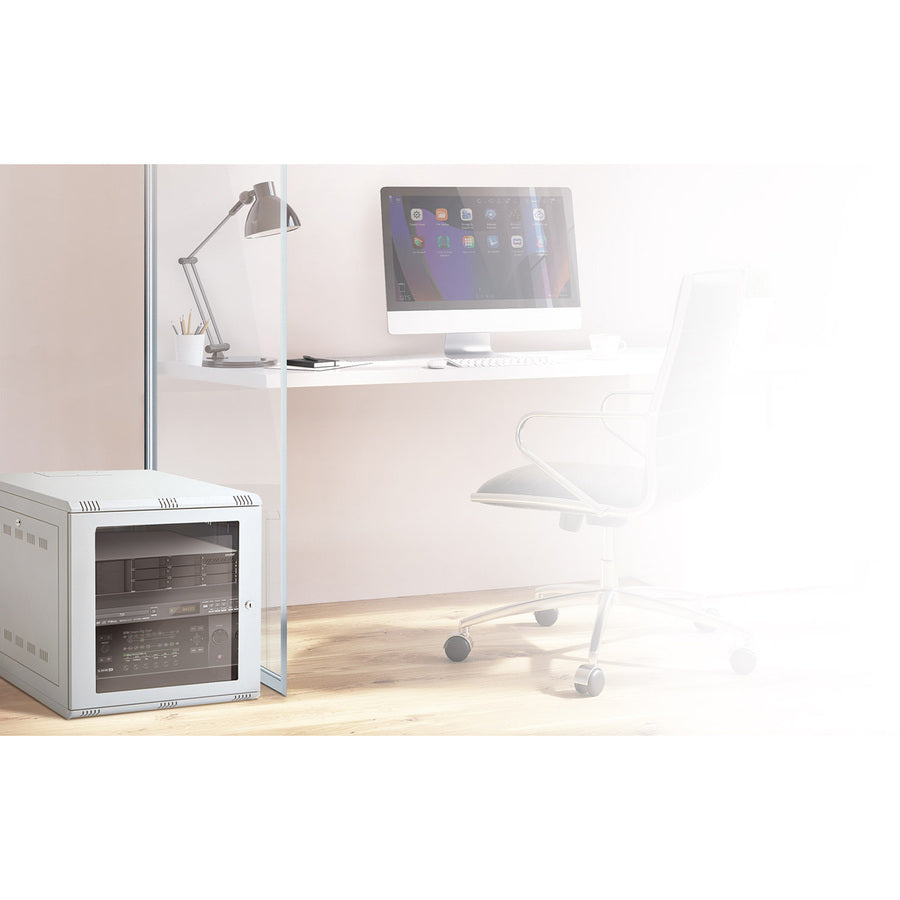

The 2U rackmount TS-873AeU has a short depth design of only 11.7 inches (297.4 mm), making it an excellent choice for smaller racks, wall-mount AV rack cabinets, and network rack cabinets. The space saved by the short depth design can be reserved for cabling or ventilation. The TS-873AeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.
-
CPU
AMD Ryzen™ V1500B 4 cores/8 threads 2.2 GHz processor
-
Memory
4 GB DDR4 SODIMM (up to 64 GB)
Note: Supports ECC RAM (cannot be used together with non-ECC RAM)
Upgrade to 2.5GbE networking

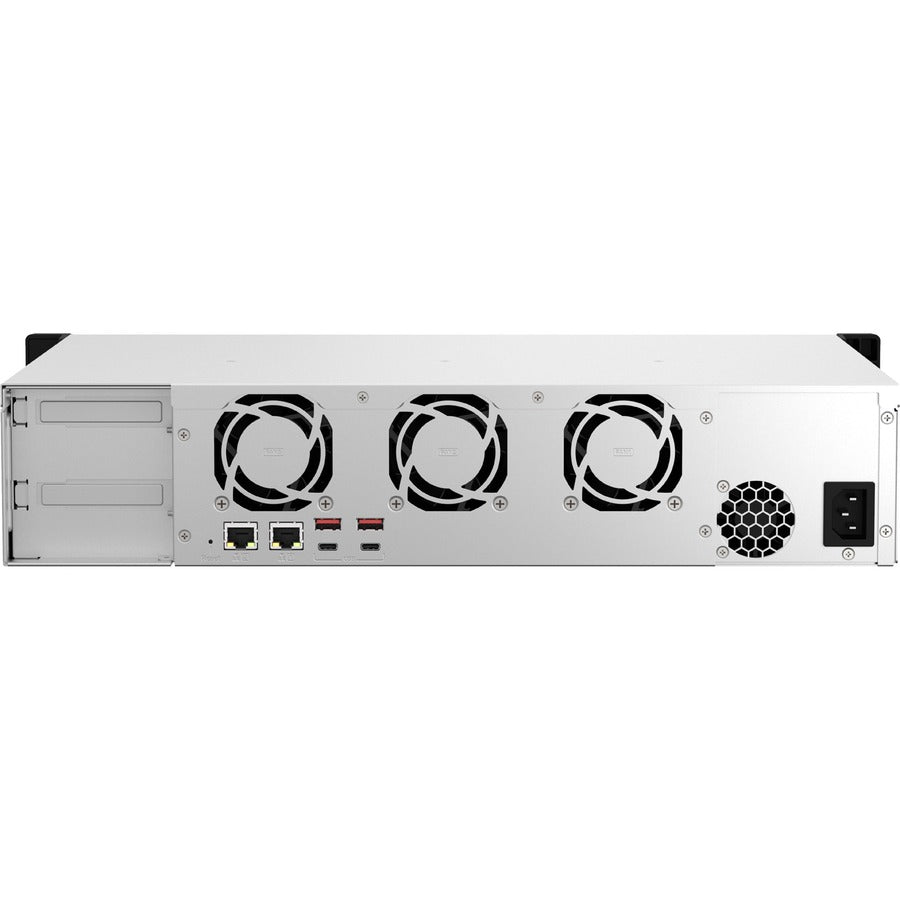

The TS-873AeU comes with two 2.5GbE RJ45 LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. 5GbE speeds can also be attained by using Port Trunking.
- Perform computational tasks effectively accrediting the amd ryzen 2.20 ghz processor
- Through RAID levels (0, 1, 5, 6, 10, 50, 60), RAID provides data reliability, fault tolerance and improves overall performance
- Protocols : LDAP,HTTPS,L2TP,SFTP,DHCP,SSH,IPSec,FTPS,AFP,CIFS/SMB,FTP,SNMPv2,IPv4,WEBDAV,Telnet,SSL,iSCSI,TLS,NFS,TFTP,HTTP,FXP,DDNS,IPv6,PPTP
- Flash Memory Capacity : 5 GB
- Maximum Power Supply Wattage : 250 W
- Number of Hard Drives Installed : 0
- Controller Type : Serial ATA/600
- Total Number of USB Ports : 4
- Processor Type : Ryzen
- Processor Core : Quad-core (4 Core)
- RAID Supported : Yes
- Form Factor : Rack-mountable
- Memory Technology : DDR4 SDRAM
- Package Contents :
- TS-873AEU-4G SAN/NAS Storage System
- 1 x Ethernet Cable
- 1 x Power Cord
- 32 x Flat head screw (for 3.5" HDD)
- 24 x Flat head screw (for 2.5" HDD)
- Quick Installation Guide (QIG)
- Manufacturer Website Address : http://www.qnap.com
- Processor Manufacturer : AMD
- Number of Solid State Drive Installed : 0
- Manufacturer : QNAP Systems
- Product Model : TS-873AEU-4G
- Processor Model : V1500B
- Number of Total Expansion Bays : 8
- Operating System : QuTS hero h5.0.0
- RAID Levels : 0, 1, 5, 6, 10, 50, 60
- Rack Height : 2U
- Standard Memory : 4 GB
- Ethernet Technology : 2.5 Gigabit Ethernet
- Number of Hard Drives Supported : 8
- Number of 2.5"/3.5" Bays : 8
- Number of USB 3.2 Gen 2 Ports : 4
- Number of Solid State Drive Supported : 8
- Limited Warranty : 3 Year
- Processor Speed : 2.20 GHz
- Network (RJ-45) : Yes
- Product Type : SAN/NAS Storage System
- Number of Total Expansion Slots : 1
- Number of Network (RJ-45) Ports : 2
- Expansion Slot Type : PCI Express 3.0 x8
