Description

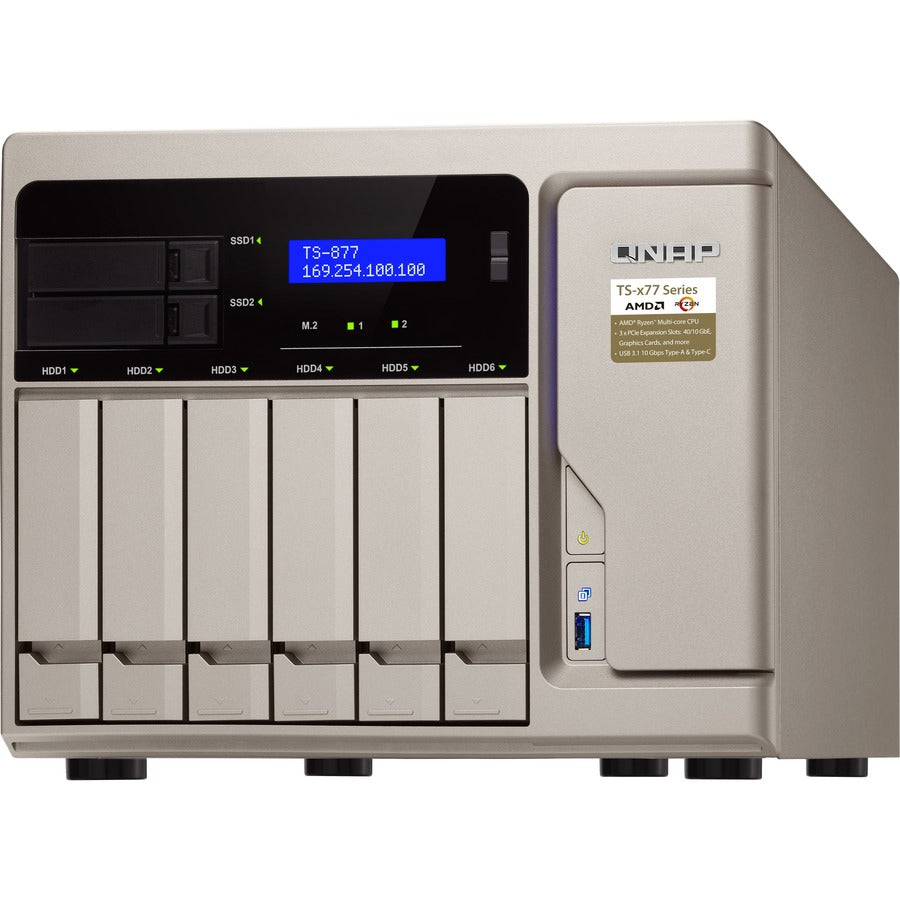

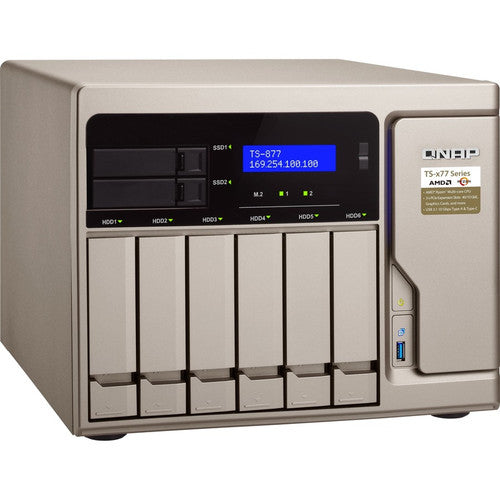

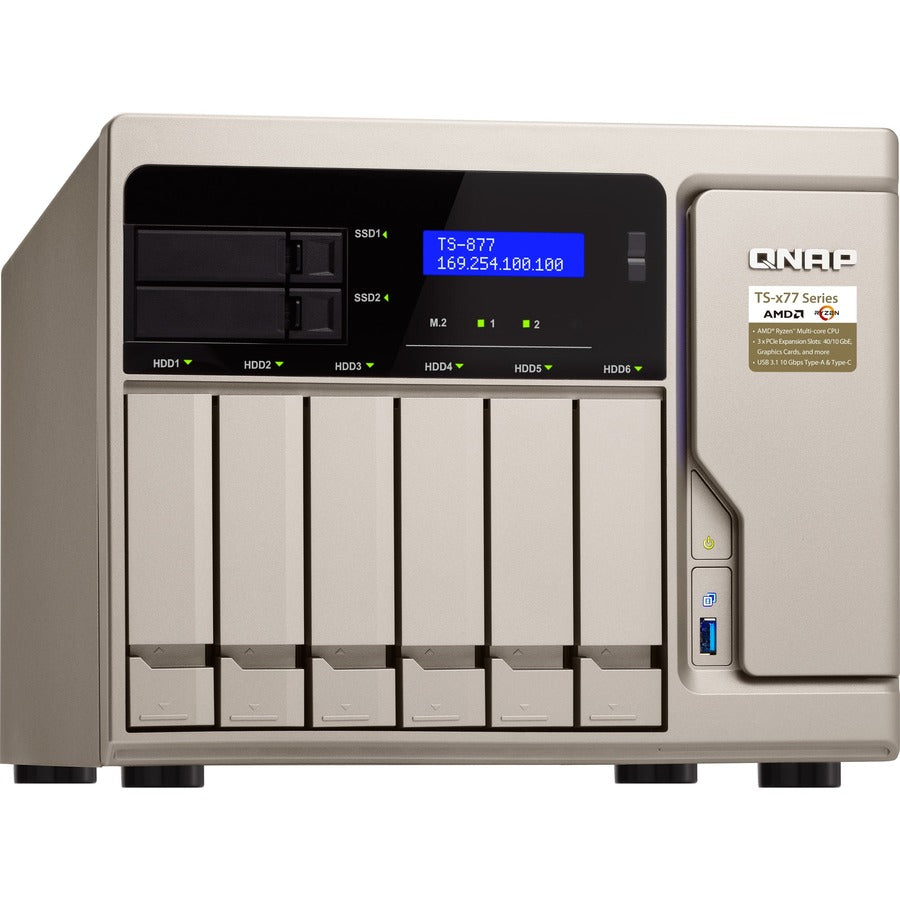

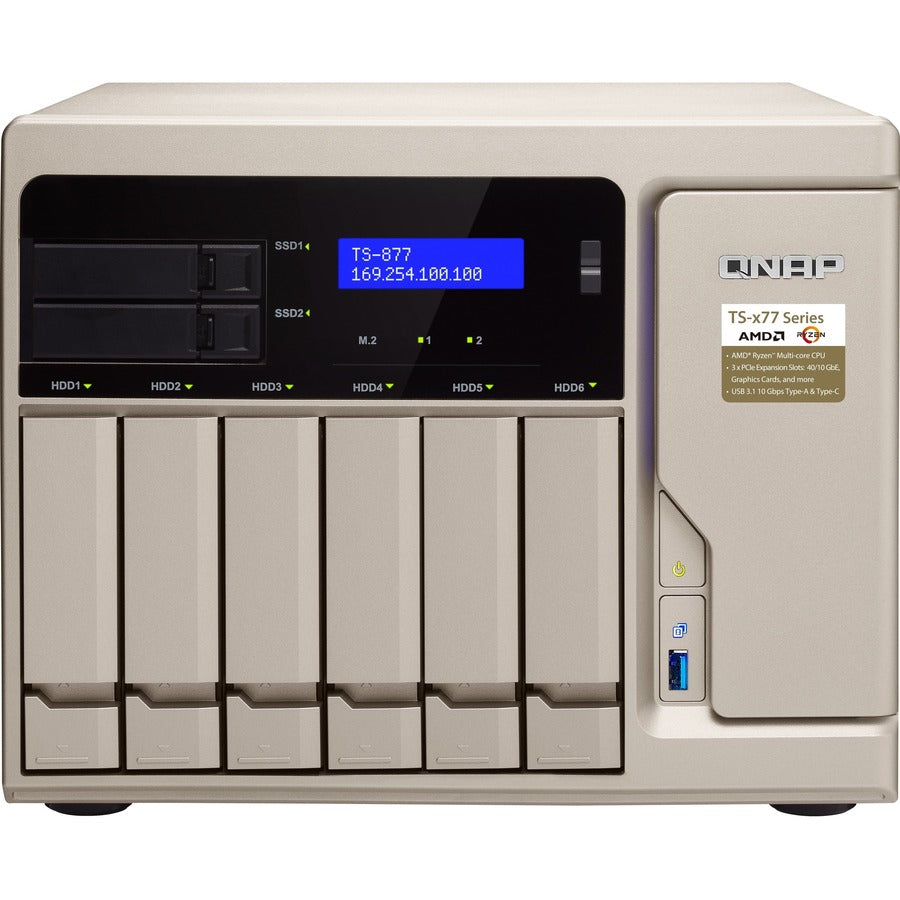

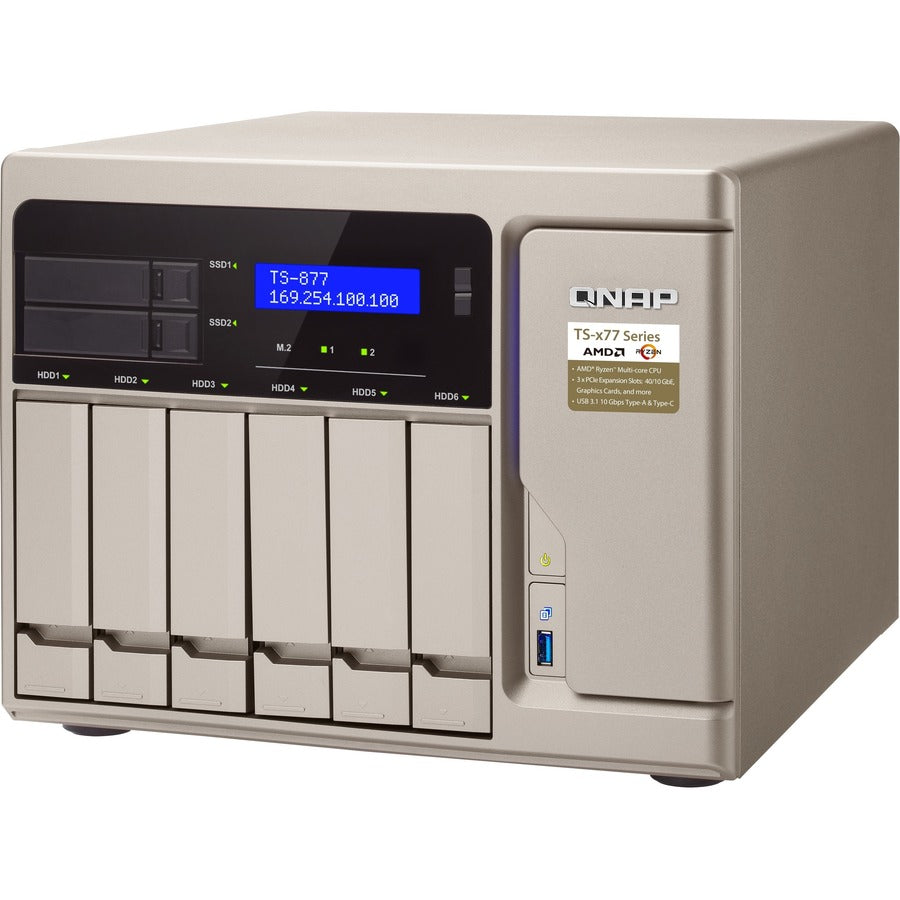

TS-877
The first Ryzen™-based NAS with up to 8 cores and 16 threads and graphics card support to redefine your virtualization and 4K processing experiences
The TS-877 powered by AMD's new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 8 cores/16 threads native processing and Turbo Core up to 3.7 GHz. Cutting-edge hardware integrated with multitasking software makes the TS-877 the preeminent choice to tackle resource-demanding applications and tasks.
Two M.2 SATA 6Gb/s SSD slots for caching or caching pools to accelerate system performance.
PCIe expandability allows for 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.1 10Gbps cards, or wireless network cards.
Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.
Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.
Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.
RAID 50/60 is recommended for NAS with over 10 disks to strike a balance between capacity, protection, and performance.
Absolute performance with AMD Ryzen™ and up to 64GB RAM
Powered by a high-performance AMD Ryzen™ 7 1700 or AMD Ryzen™ 5 1600 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877 delivers aggressive yet power-smart performance to meet your multitasking demands and is capable of running up to 7 virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-877 with gold-standard performance is your ideal choice.
Top-class hardware engineering
The feature-packed hardware of the TS-877 bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-877 fulfills diversified application needs.
Extend NAS functionality with PCIe slots
The TS-877 features three PCIe slots (1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x4) that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.
Fuel GPU-accelerated computing with a 450W power supply
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power compared to other hardware. The TS-877 offers PCIe slots to support AMD Radeon™ or NVIDIA® graphics cards and a 450 watt power supply that is capable of powering a graphics card for boosting imaging processing in QTS and performance of virtual machines via GPU passthrough. When enjoying videos with the TS-877, you can use the remote control (RM-IR004, optional purchase) that supports QButton for a more convenient control of your multimedia experience.
- Perform computational tasks effectively accrediting the amd ryzen 7 3 ghz processor
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, hot spare, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Memory Technology : DDR4 SDRAM
- Standard Memory : 16 GB
- Manufacturer Website Address : http://www.qnap.com
- Flash Memory Capacity : 512 MB
- Number of Total Expansion Bays : 8
- Processor Core : Octa-core (8 Core)
- Processor Manufacturer : AMD
- Number of 2.5" Bays : 2
- Product Series : TS-x77
- Controller Type : Serial ATA/600
- RAID Supported : Yes
- Operating System : QTS 4.3
- Processor Type : Ryzen 7
- Number of Solid State Drive Supported : 2
- Number of Solid State Drive Installed : No
- Package Contents :
- TS-877 SAN/NAS Storage System
- 2 x Ethernet Cables
- Quick Installation Guide (QIG)
- Flat Head Screws (For 2.5" HDD)
- Flat Head Screw (For M.2 SSD)
- 1 x Power Cord
- 2 x M.2 SSD Cooling Module
- Protocols : DNS,Telnet,DLNA,IPv6,FTPS,WEBDAV,SSL/TLS,AFP,CIFS,HTTPS,FTP,SSH,DHCP,SMTP,FXP,LDAP,iSCSI,IPv4,UPnP,PPTP,TCP/IP,HTTP,DDNS,CIFS/SMB,SNMP,RSync
- RAID Levels : 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
- Number of Hard Drives Supported : 8
- Number of Hard Drives Installed : No
- Number of Total Expansion Slots : 3
- Form Factor : Tower
- Manufacturer : QNAP Systems
- Number of USB 3.0 Ports : 6
- Product Type : SAN/NAS Storage System
- Limited Warranty : 2 Year
- Number of 3.5" Bays : 6
- Ethernet Technology : Gigabit Ethernet
- Product Model : TS-877
- Network (RJ-45) : Yes
- HDMI : Yes
- Processor Model : 1700
- Processor Speed : 3 GHz
- Total Number of USB Ports : 8
