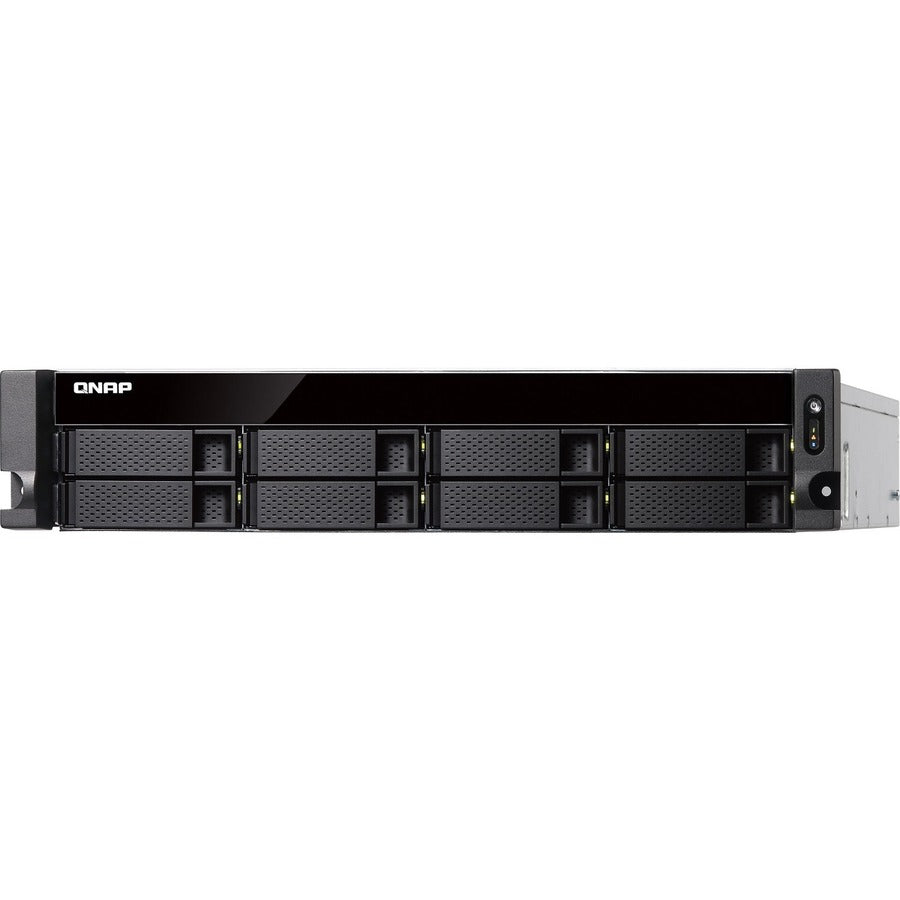

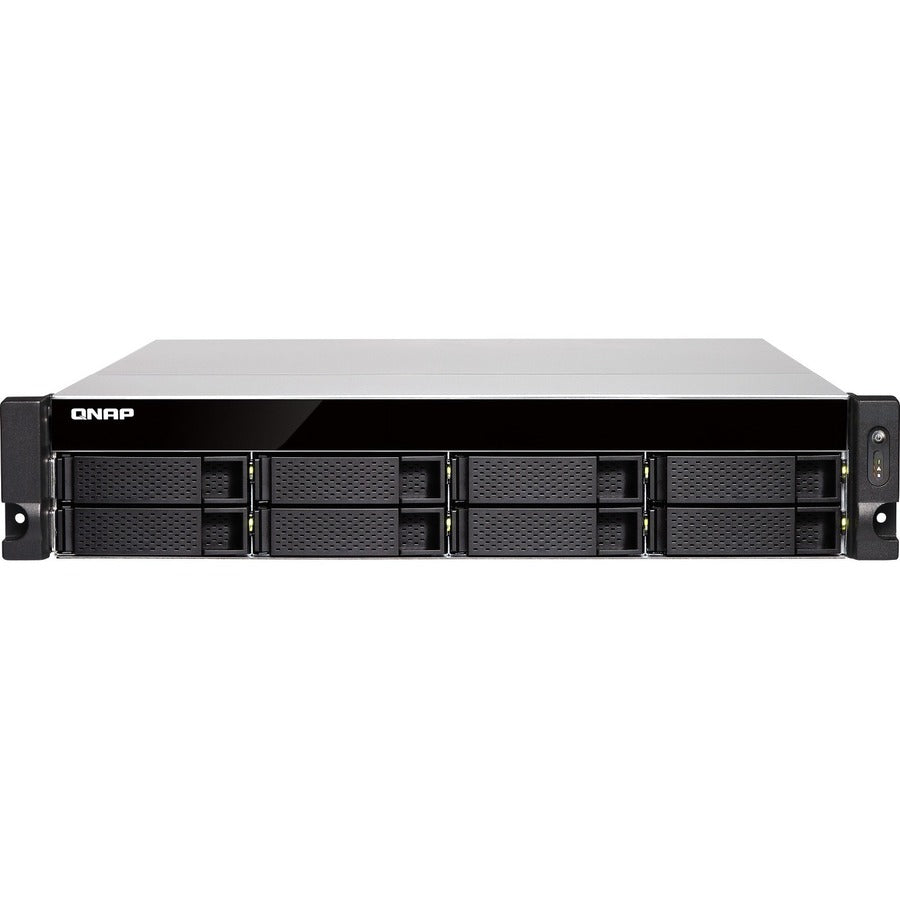

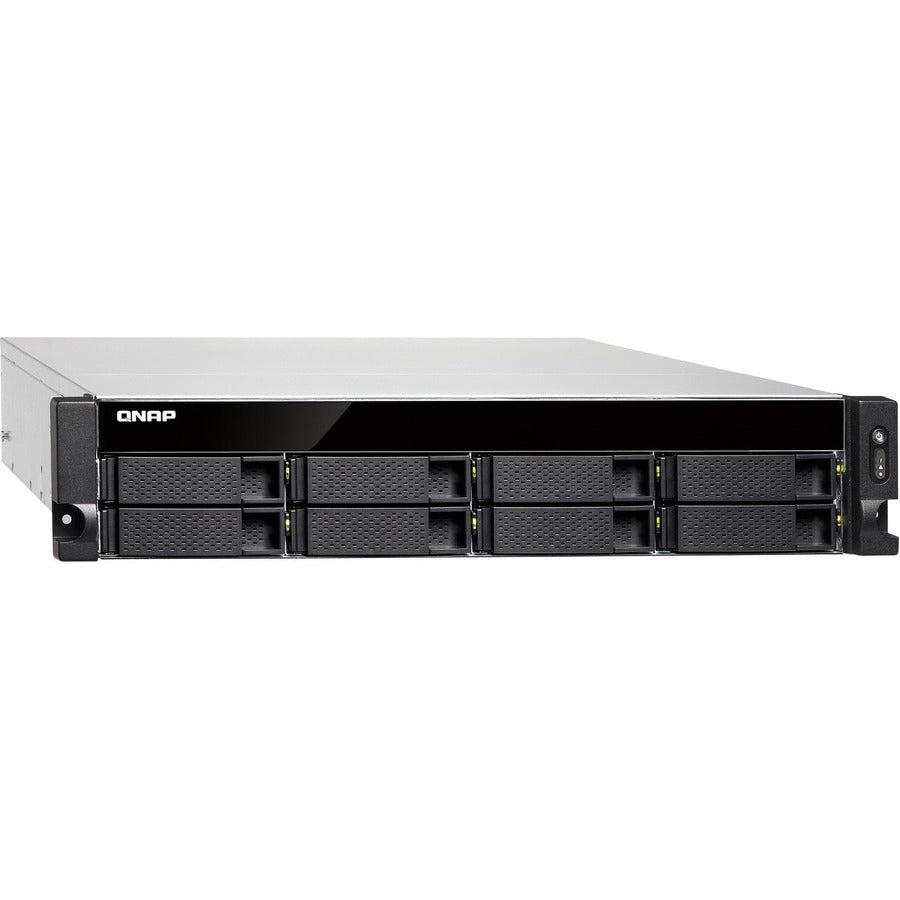

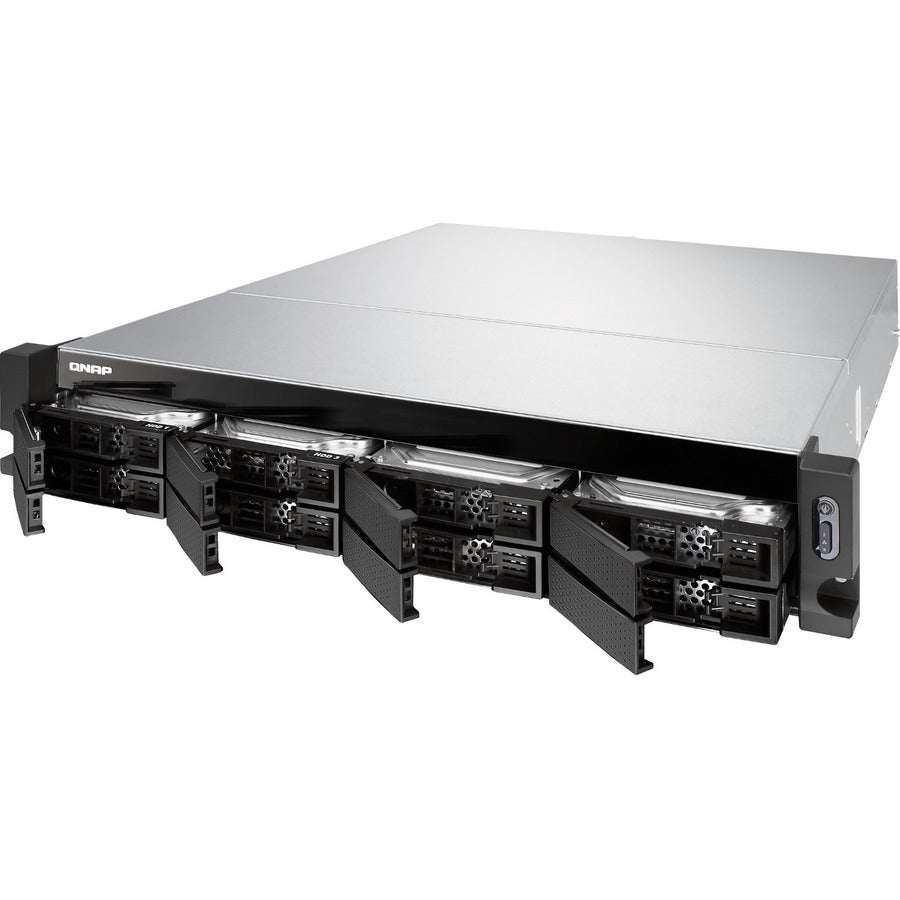

QNAP TS-877XU-RP-3600-8G Système de stockage SAN/NAS TS-877XU-RP-36008GUS

Ryzen™-based rackmount NAS with up to 6 cores/12 threads and integrated dual 10GbE SFP+ ports to optimize system performance

Powered by AMD's powerful Ryzen™ processor, the TS-877XU-RP is capable of boosting virtual machine performance with up to 6 cores/12 threads and Turbo Core up to 3.9 GHz. Four PCIe Gen.3 slots provides expandability to provide more potential applications and functionality for the TS-877XU-RP. The TS-877XU-RP also features a redundant power supply to ensure maximum system uptime.

• Two 10GbE SFP+ ports provide higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

• PCIe expandability allows for installing 10GbE/40GbE adapters, PCIe NVMe SSD, graphics cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless network cards.

• Supports AMD Radeon™ and NVIDIA® graphics cards for video processing or GPU-passthrough to VMs.

• Qtier™ technology and SSD caching enable 24/7 optimized storage efficiency.

• Scalable storage supporting virtualization, containerized apps, centralized storage, backup, sharing, and disaster recovery.

• RAID 50/60 is recommended for NAS with over 6 disks to strike a balance between capacity, protection, and performance

Top-class hardware engineering with high I/O expandability

The hardware design of the TS-877XU-RP provides exceptional system performance and expandability to fulfill diverse application requirements.

Absolute performance with AMD Ryzen™ and up to 64GB RAM

Powered by a high-performance AMD Ryzen™ 5 2600 or AMD Ryzen™ 3 1200 processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-877XU-RP delivers aggressive yet power-smart performance to meet your multitasking demands. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-877XU-RP.

Dual-channel Memory to deliver power-smart performance

The TS-877XU-RP supports dual-channel DDR-4 memory and four Long-DIMM slots. When using paired memory modules, the TS-877XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the memory configuration (supports up to 64GB RAM) of the TS-877XU-RP, making it the most ideal and cost-efficient storage solution for environments like virtualization that contain dynamically-changing workloads.

Extend NAS functionality with PCIe slots

The TS-877XU-RP features four PCIe slots that allow for installing 10GbE/40GbE network cards, QM2 M.2 SSD/10GbE PCIe cards, or compatible wireless network cards for greater application potential.

• 10GbE/ 40GbE adapters

  Install 10GbE/40GbE adapters to support lightning-fast throughput for bandwidth-demanding tasks such as virtualization and fast backup/restoration for an ever-growing amount of data.

• QM2 card with M.2 SSD/10GbE support

  Install QNAP's innovative QM2 card to add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS to enjoy optimal performance.

• Wireless network cards

  Install QNAP's wireless network card (QWA-AC2600) to work with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

• Perform computational tasks effectively accrediting the amd ryzen 5 3.60 ghz processor
• Optimize business network's performance with 10 Gigabit Ethernet connectivity
• RAID technology - data reliability, fault tolerance and improved overall performance

• Memory Technology : DDR4 SDRAM
• Standard Memory : 8 GB
• Manufacturer Website Address : http://www.qnap.com
• Number of Power Supplies Installed : 2
• Flash Memory Capacity : 5 GB
• Number of Total Expansion Bays : 8
• Country of Origin : Taiwan
• Number of 2.5"/3.5" Bays : 8
• Processor Core : Hexa-core (6 Core)
• Processor Manufacturer : AMD
• Product Series : TS-x77XU
• Controller Type : Serial ATA/600
• RAID Supported : Yes
• Operating System : QTS 4.3.4
• Rack Height : 2U
• Processor Type : Ryzen 5
• Number of Solid State Drive Supported : 8
• Expansion Slot Type : SFP+,PCI Express 3.0 x4,PCI Express 3.0 x8
• Number of Solid State Drive Installed : 0
• Package Contents :
  • TS-877XU-RP-3600-8G SAN/NAS Storage System
  • 2 x Ethernet Cables
  • 2 x Power Cords
  • 32 x Flat Head Screws (for 3.5" HDD)
  • 24 x Flat Head Screws (for 2.5" HDD)
  • Quick Installation Guide (QIG)
• Protocols : TCP/IP,IPv4,IPv6,DHCP,NAT,STP,HTTP,HTTPS,Telnet,FTP,CIFS/SMB,AFP,SSL,iSCSI,SNMP,WEBDAV,DDNS,UPnP,DNS,SSL/TLS,FXP,MTP,RSync,DLNA,PPTP,L2TP,IPSec,SMTP,FTPS
• RAID Levels : 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD
• Number of Hard Drives Supported : 8
• Number of USB 3.2 Gen 1 Ports : 4
• Number of Hard Drives Installed : 0
• Number of Total Expansion Slots : 6
• Form Factor : Rack-mountable
• Manufacturer : QNAP Systems
• Product Type : SAN/NAS Storage System
• Limited Warranty : 3 Year
• Ethernet Technology : 10 Gigabit Ethernet
• Product Model : TS-877XU-RP-3600-8G
• Number of Network (RJ-45) Ports : 2
• Network (RJ-45) : Yes
• Maximum Power Supply Wattage : 300 W
• Processor Model : 3600
• Processor Speed : 3.60 GHz
• Total Number of USB Ports : 6
• Redundant Power Supply : Yes
