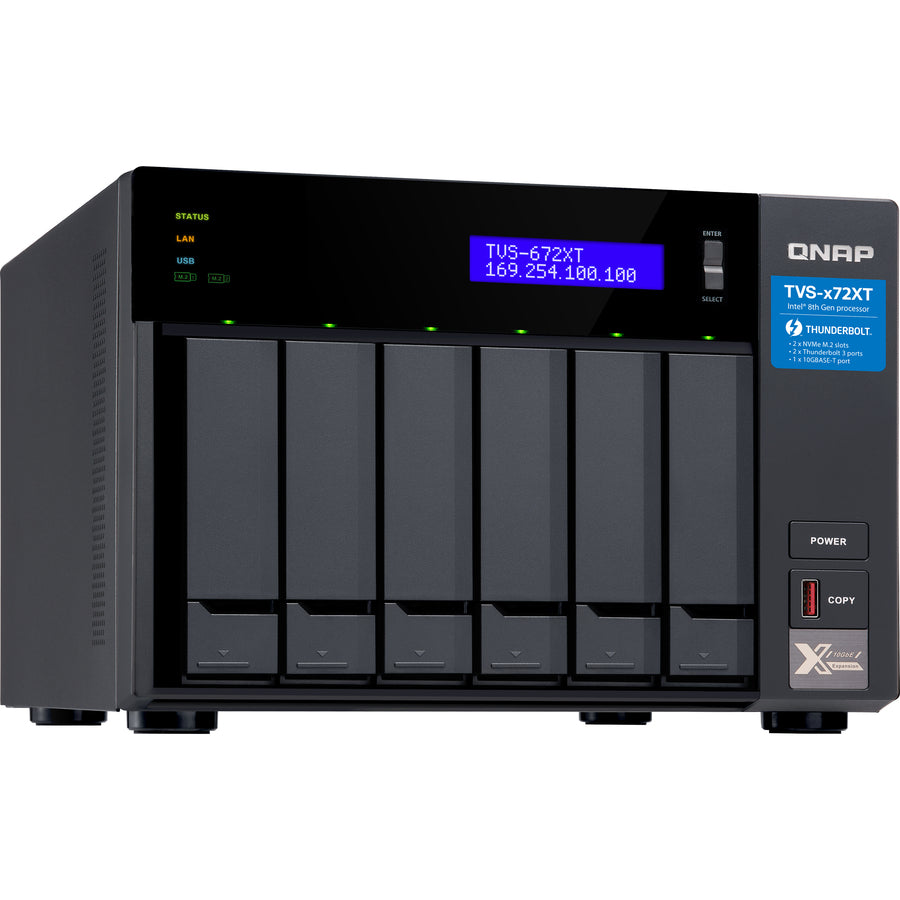

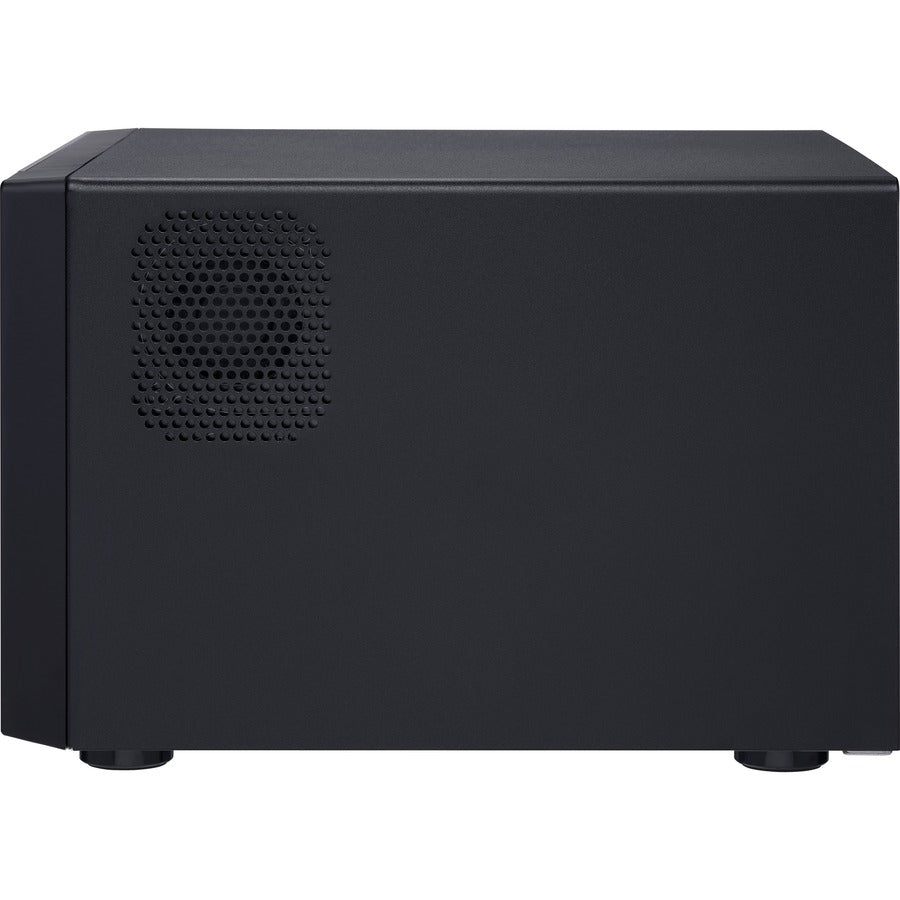

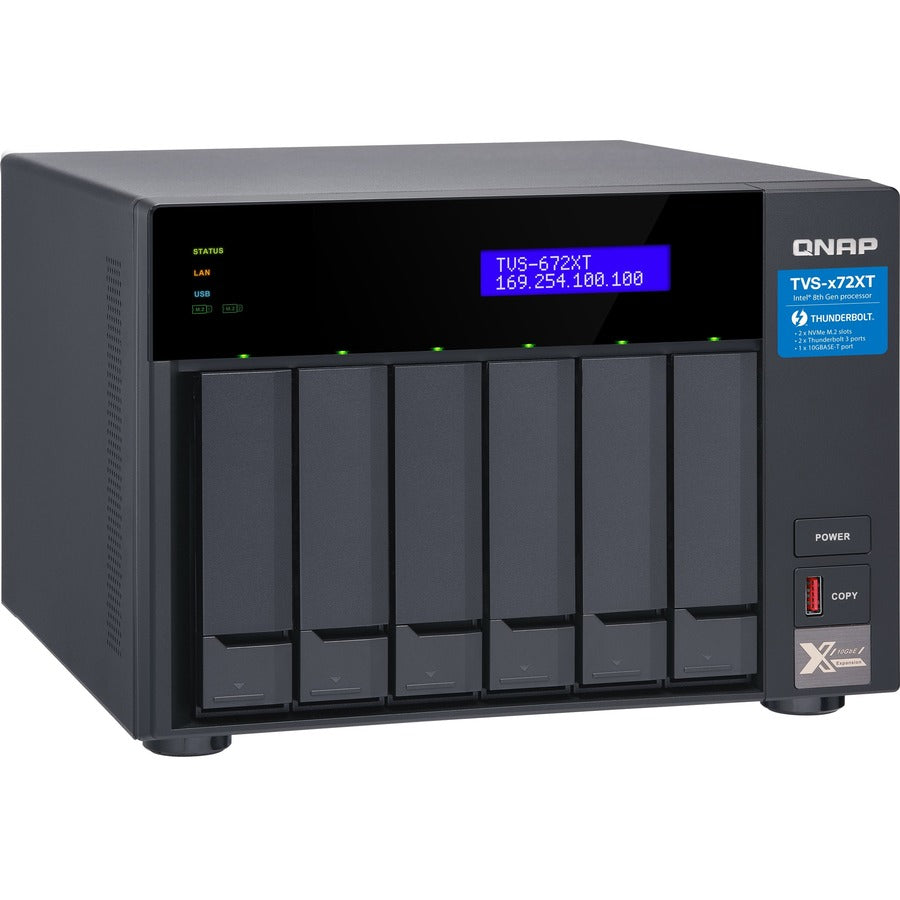

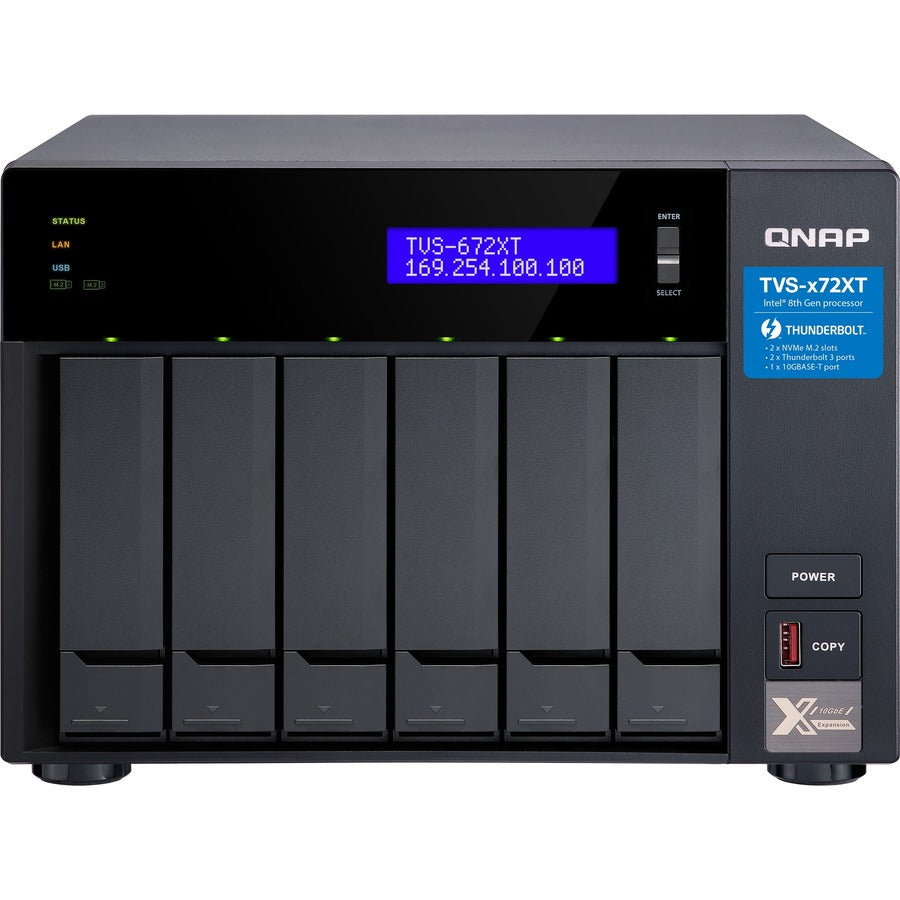

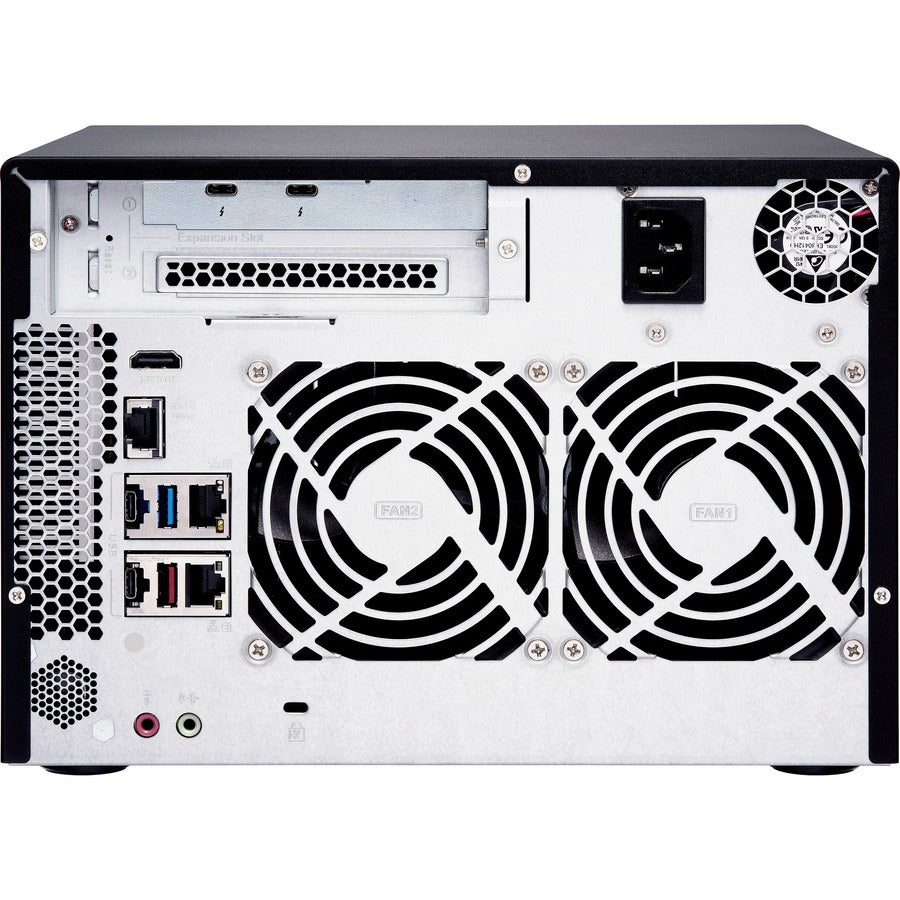

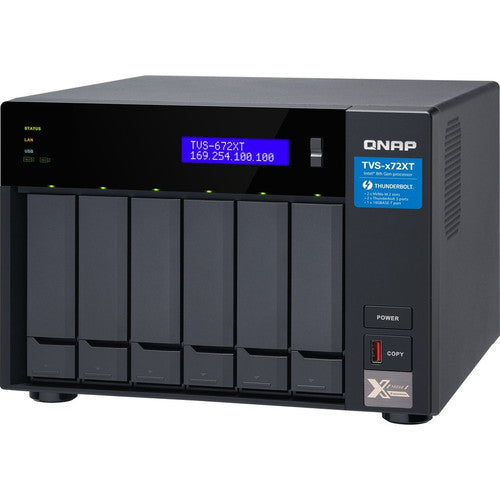

QNAP TVS-672XT-I3-8G Système de stockage SAN/NAS/DAS TVS-672XT-I3-8G-US

Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots

Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-672XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-672XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-672XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

• High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing.

• 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.

• PCIe expandability allows the use of an entry-level graphics card to accelerate NAS video processing and GPU computing.

• Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.

• 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.

• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity

The TVS-672XT adopts the powerful 8th generation Intel® Core™ i3 8100T quad-core 3.1 GHz processor with 8 GB dual-channel DDR4 memory (upgradable to 32 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.

Extend NAS functionality with a graphics card and other PCIe devices

The TVS-672XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.

• Graphics cards

  Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.

• QM2 M.2 SSD/10GbE cards

  Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

• 10GbE/ 40GbE adapters

  Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.

• Wireless network cards

  Use the QNAP QWA-AC2600 wireless adapter with WirelessAP Station to transform the TVS-672XT into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.

Obtain performance benefits from M.2 SSD caching

Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-672XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).

• Smart and responsive Intel Core i3 3.10 ghz, now switch between multiple applications in a swift second
• Through RAID levels (0, 1, 5, 6, 10, 50, jbod), RAID provides data reliability, fault tolerance and improves overall performance
• Optimize business network's performance with 10 Gigabit Ethernet connectivity

• Processor Model : i3-8100T
• Number of Total Expansion Bays : 6
• Operating System : QTS 4.3.5
• RAID Levels : 0, 1, 5, 6, 10, 50, JBOD
• Standard Memory : 8 GB
• Ethernet Technology : 10 Gigabit Ethernet
• Number of Hard Drives Supported : 6
• Number of 2.5"/3.5" Bays : 6
• Number of Solid State Drive Supported : 6
• Processor Speed : 3.10 GHz
• Network (RJ-45) : Yes
• Host Interface : Thunderbolt 3
• Product Type : SAN/NAS/DAS Storage System
• Number of Total Expansion Slots : 2
• HDMI : Yes
• Expansion Slot Type : PCI Express 3.0 x16,PCI Express 3.0 x4
• Protocols : DNS,Telnet,DLNA,IPv6,FTPS,SSL,WEBDAV,IPMI,SSL/TLS,AFP,Bonjour,HTTPS,FTP,SMSC,SSH,DHCP,SMTP,FXP,SFTP,LDAP,iSCSI,SMB,TFTP,IPv4,UPnP,TCP/IP,PPTP,HTTP,CIFS/SMB,NFS,DDNS,RSync,SNMP
• Flash Memory Capacity : 4 GB
• Maximum Power Supply Wattage : 250 W
• Number of Hard Drives Installed : No
• Controller Type : Serial ATA/600
• Total Number of USB Ports : 5
• Processor Type : Core i3
• Number of USB 3.0 Ports : 1
• Processor Core : Quad-core (4 Core)
• RAID Supported : Yes
• Form Factor : Tower
• Memory Technology : DDR4 SDRAM
• Package Contents :
  • TVS-672XT-I3-8G SAN/NAS/DAS Storage System
  • 2 x Gigabit Ethernet Cables
  • 1 x 10Gbase-T Ethernet Cable
  • Flat Head Screw (for 2.5" HDD )
  • Flat Head Screw (for 3.5" HDD)
  • 2 x M.2 SSD Heatsink
  • 1 x Power Cord
  • Quick Installation Guide (QIG)
• Manufacturer Website Address : http://www.qnap.com
• Processor Manufacturer : Intel
• Number of Solid State Drive Installed : No
• Manufacturer : QNAP Systems
• Product Model : TVS-672XT-I3-8G
