StarTech.com Extension PoE+ Gigabit 1 port - 802.3at et 802.3af - 100 m (330 ft) - Extension Power over Ethernet - Extension réseau répéteur PoE POEEXT1GAT

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure.

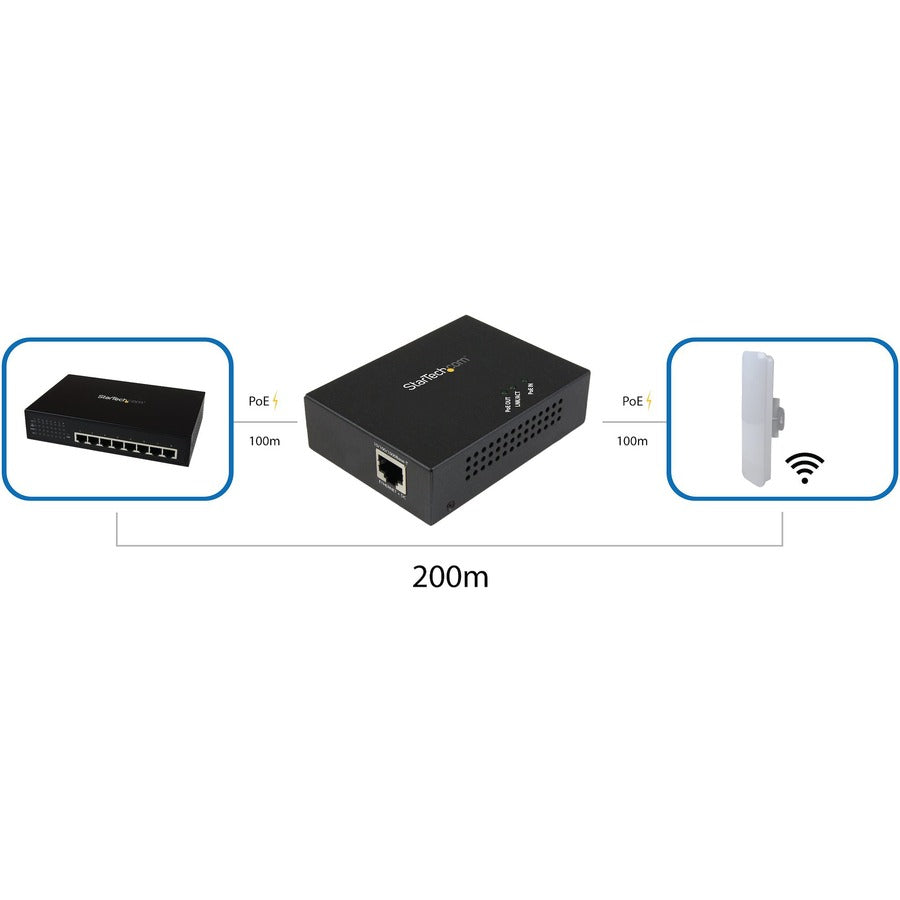

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.

Unrestricted PoE+ range and convenience

Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.

Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ switch (IES81000POE).

Daisy chain for longer distance and flexibility

Still need more distance? If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability.

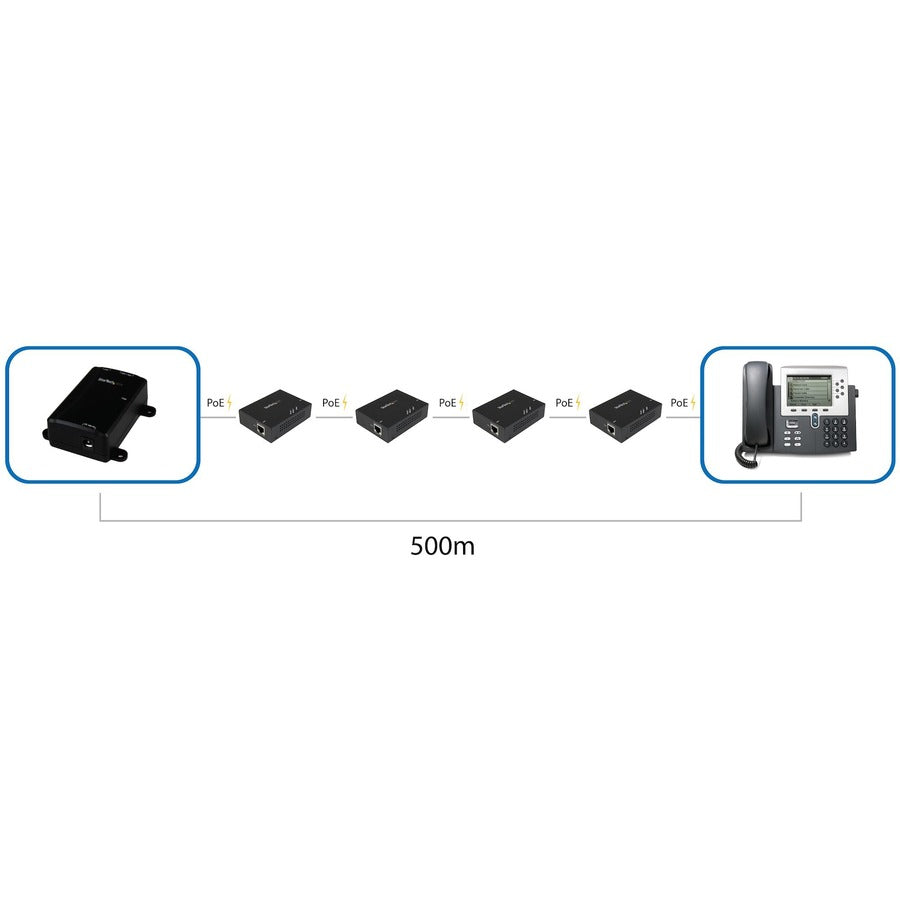

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).

Convenient installation options and durable construction

Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.

You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.

The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

• Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available
• Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities
• Perfect for SOHO, SMB, system integrators, and IT administrators

More from the Manufacturer

• Automatically detects your connected PD to prevent damage if incorrectly installed
• 52V to 56V output voltage
• IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
• Plug-and-play setup with no power adapter required
• 2kV ESD and surge protection
• Compact, wall-mountable, and rugged metal housing for convenience and reliability
• Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
• Deploy and access your Gigabit PoE-powered devices (PD) further away

. .

• Environmental Certification : RoHS,WEEE
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Limited Warranty : 2 Year
• Packaged Quantity : 1
• Manufacturer Website Address : http://www.startech.com
• Package Contents :
  • 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft)
  • 1 x Instruction Manual
• Length : 3.70" (94 mm)
• Manufacturer : StarTech.com
• Product Color : Black
• Certifications & Standards :
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
• Maximum Output Voltage : 56 V DC
• Form Factor : Wall Mountable
• Output Ports : 1 x Gigabit PoE+
• Input Ports : 1 x Gigabit Ethernet
• Protection Type : Surge Protection,ESD Protection
• Maximum Output Power : 24 W
• Compatibility : Compatible Products:
  • Wi-Fi Access Points
  • IP Phones
  • Surveillance Cameras
  • Kiosks
• Minimum Output Voltage : 52 V DC
• Product Type : PoE Extender
