Description

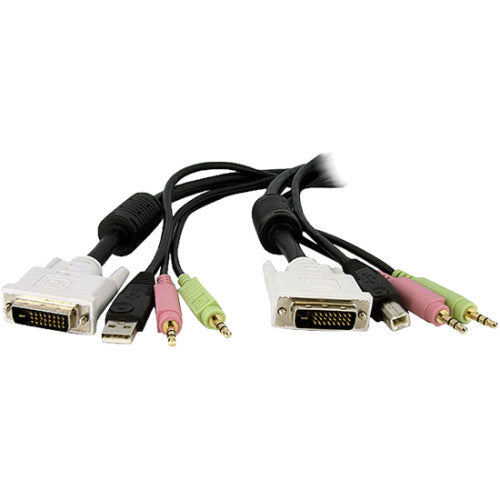

This 10ft four-in-one DVI/USB KVM cable integrates dual link DVI video quality with USB mouse and keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by our Lifetime Warranty, the DVI/USB KVM cable provides guaranteed performance for dependable operation.
Works with: Compatible StarTech.com KVMs can be found under the Accessories section. Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764) Avocent models (2SVDVI10-001, 4SVDVI10-001, SC4UAD, SC420, SC440, SC540) Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L) Cables to go models (52047, 52048)
- Meets and exceeds all DVI-D and USB 2.0 specifications
- Supports DVI-D Maximum clock frequency in dual link mode up to 7.92 Gbps)
- Backwards compatible with DVI-D single link signals and devices
- Supports HDTV quality signal and above (2560 x 1600 @ 60Hz and higher resolutions at lower refresh rates)
- Combines 4 peripheral cables into one
- Dual Link DVI-D signal is supported
- Data Transfer Rate : 7.9 Gbit/s
- Environmental Certification : RoHS,REACH,WEEE
- Cable Type : DVI/Mini-phone/USB
- Environmentally Friendly : Yes
- Device Supported : Audio/Video Device,KVM Switch,Keyboard/Mouse,TV,Microphone,HDTV,Computer
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Supported Resolution : 2560 x 1600
- Manufacturer Website Address : http://www.startech.com
- Product Type : KVM Cable
- Manufacturer : StarTech.com
- Product Model : DVID4N1USB10
- Cable Length : 10 ft
- Compatibility :
StarTech KVM Switches:
- SV431DVIUAHR
- SV231QDVIUA
- SV431DVIDDU
- SV431DDUSB
- SV431UADVI
- SV431DVIUA
- SV231DVIDDU
- SV231DDUSB
- SV231UADVI
Aten KVM Switches:
- CS1642
- CS1644
- CS1784
- CS1782
- CS1762
- CS1764
Avocent KVM Switches:
- 2SVDVI10-001
- 4SVDVI10-001
- SV4UAD
- SC420
- SC440
- SC540
Belkin KVM Switches:
- F1DN102D
- F1DN104D
- F1DD102L
- F1DD104L
Cables to go KVM Switches:
- 52047
- 52048
- Country of Origin : China

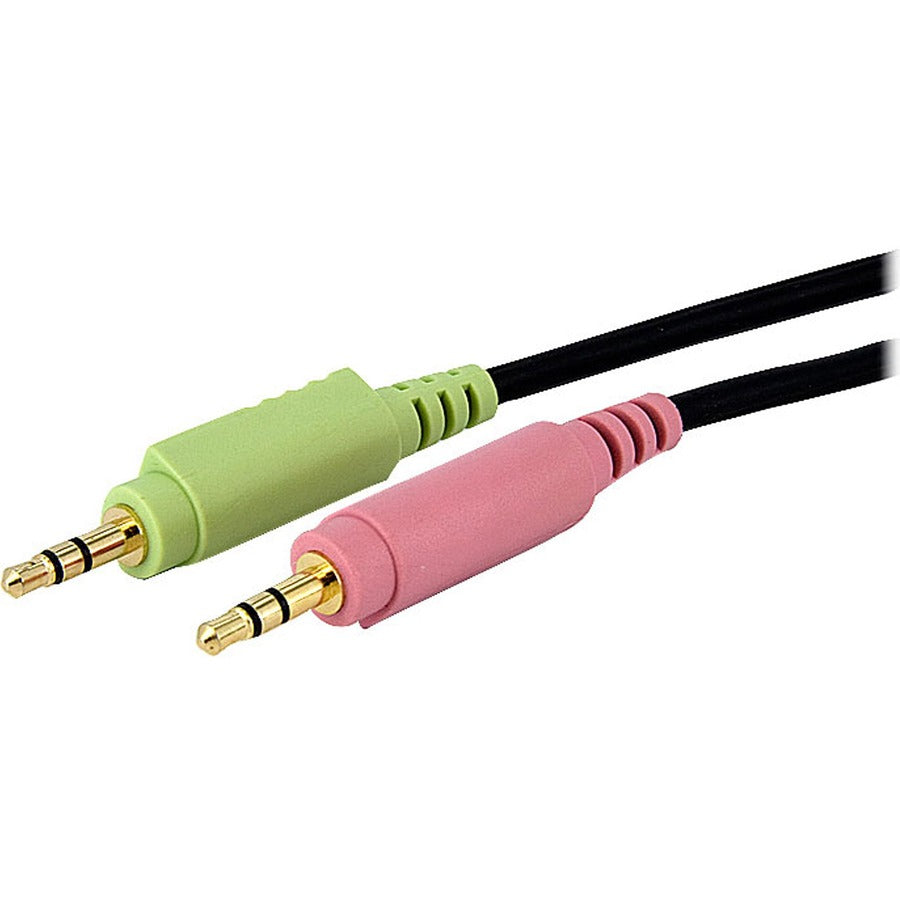

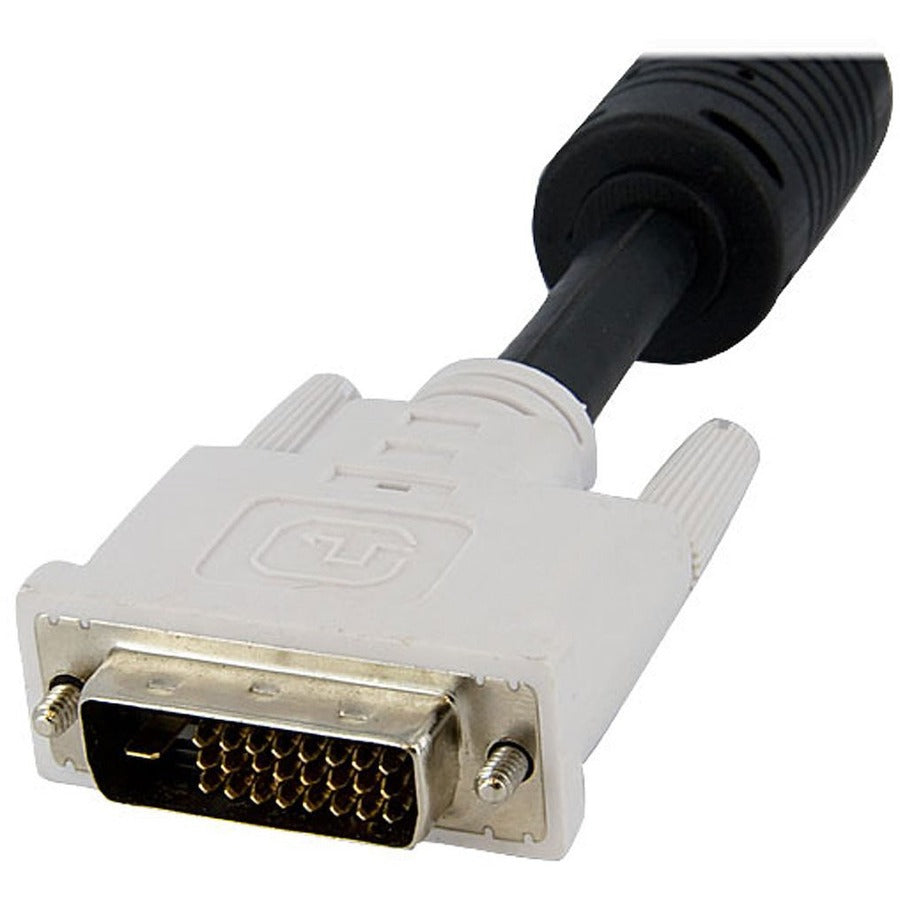

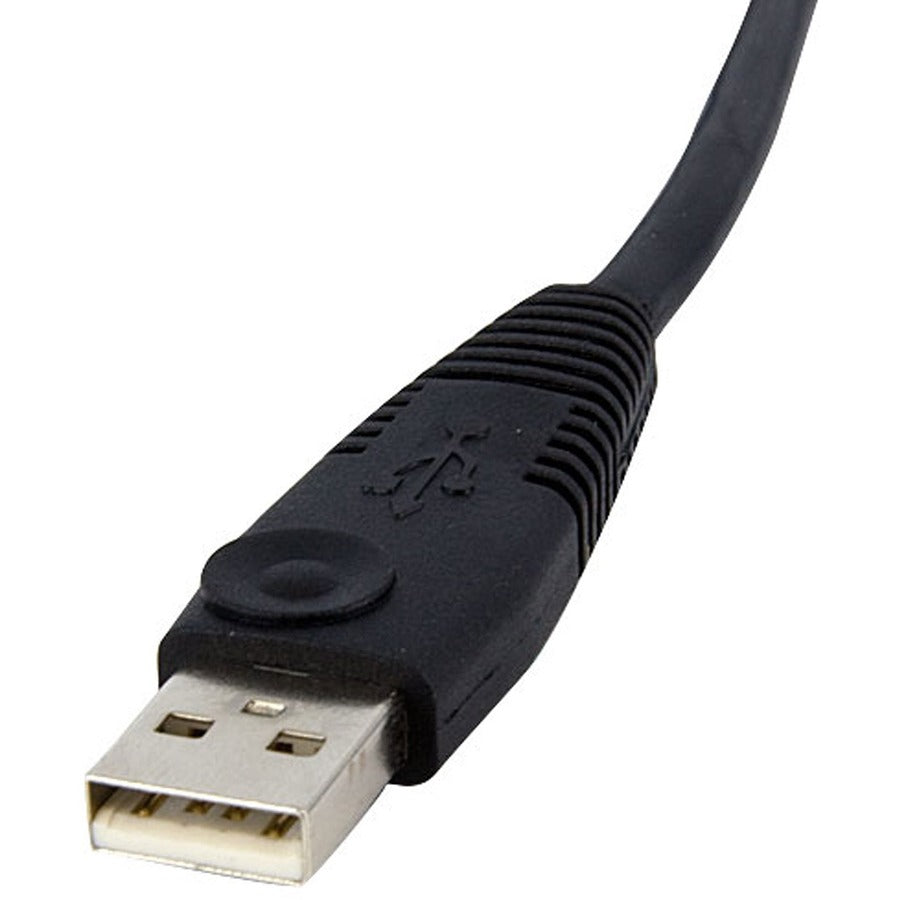

- Connector on First End Details : 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male,2 x Mini-phone Stereo Audio - Male,1 x 4-pin USB 2.0 Type A - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Black

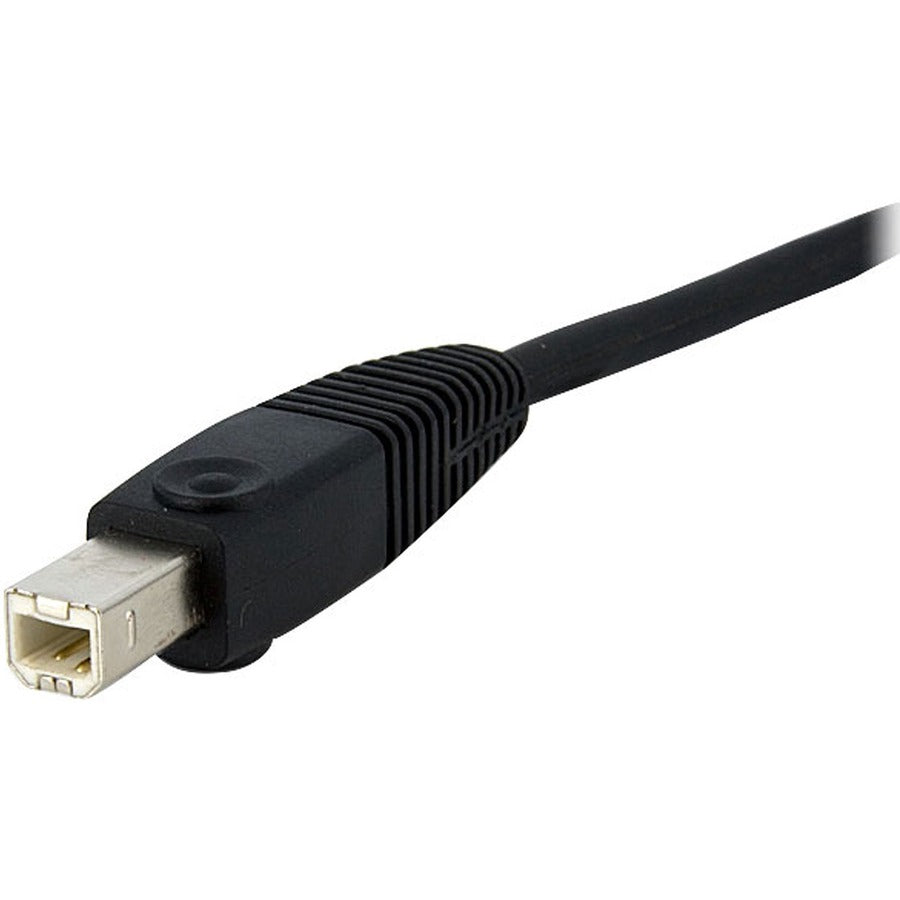

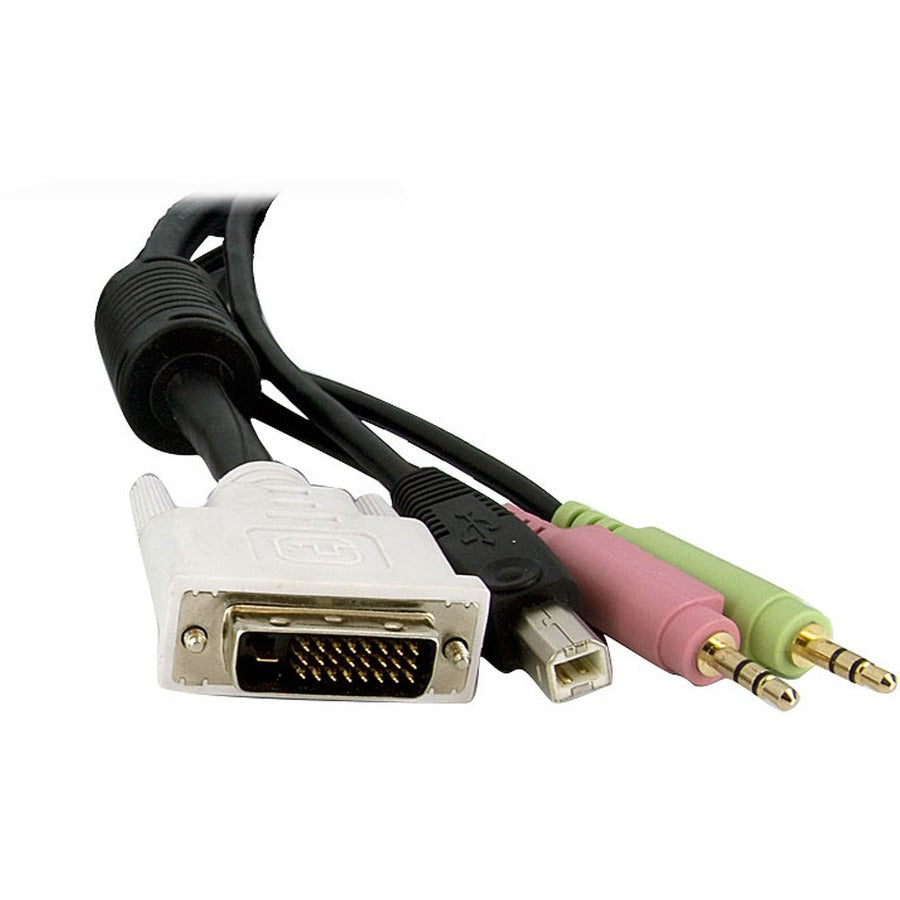

- Connector on Second End Details : 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male,2 x Mini-phone Stereo Audio - Male,1 x 4-pin USB 2.0 Type B - Male
- Connector Type on First End : DVI-D (Dual-Link) Digital Video - Male,Mini-phone Stereo Audio - Male,USB 2.0 Type A - Male
- Connector Type on Second End : DVI-D (Dual-Link) Digital Video - Male,Mini-phone Stereo Audio - Male,USB 2.0 Type B - Male
