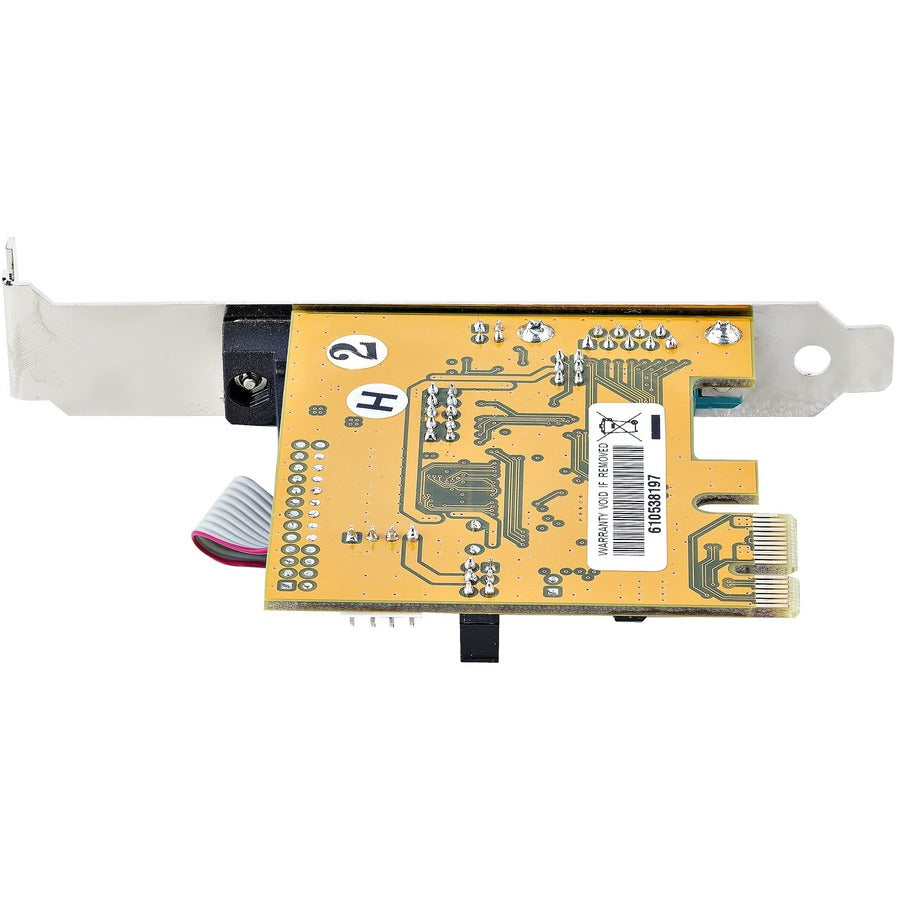

StarTech.com Carte série PCI Express 2 ports, carte série double port PCIe vers RS232 (DB9), 16C1050 UART, rétention COM, Windows et Linux 21050-PC-SERIAL-CARD

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.

Legacy Connectivity

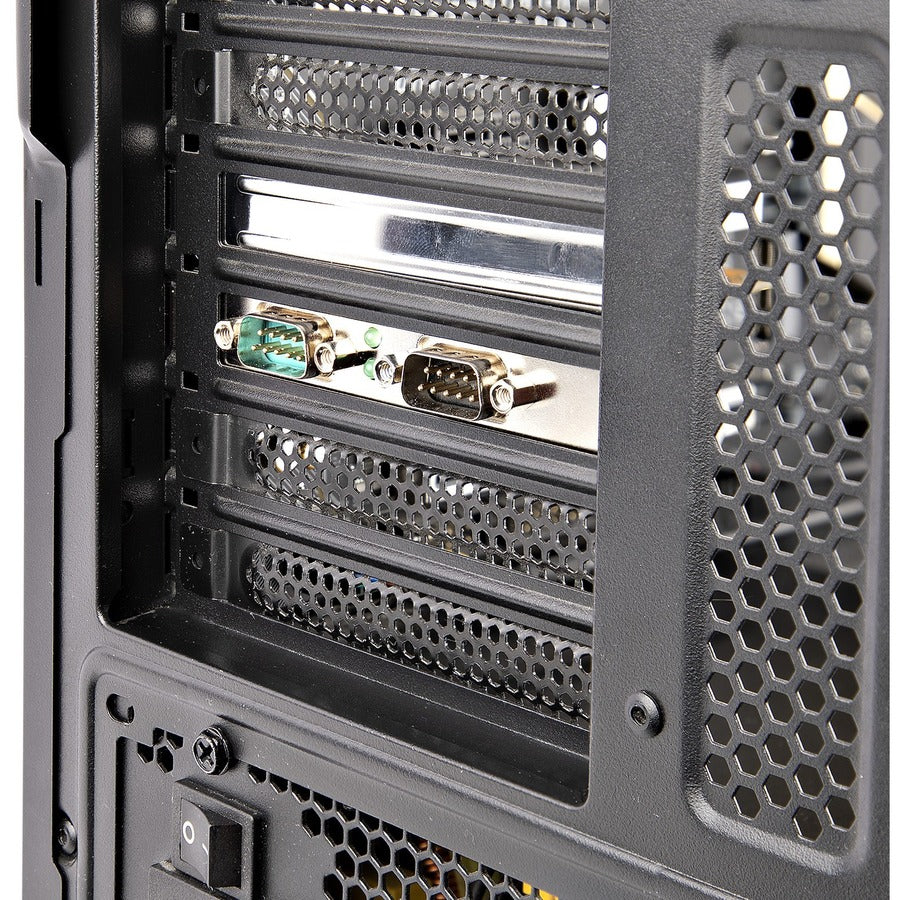

Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

Connect with Ease

The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.

21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

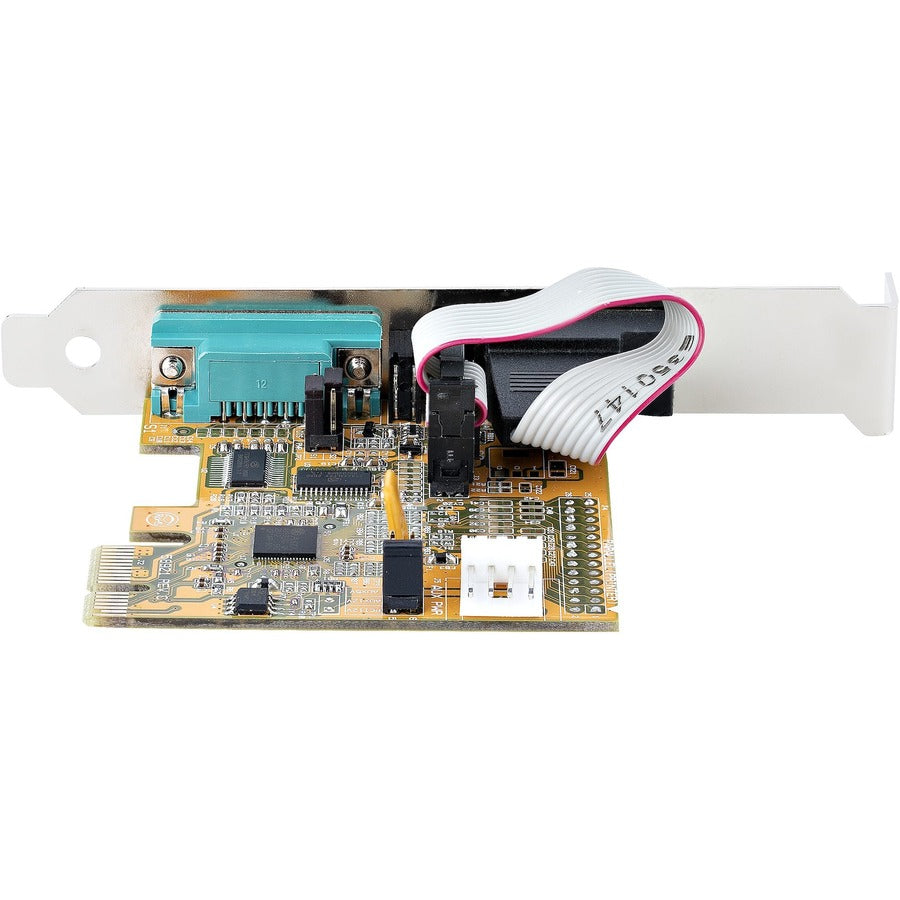

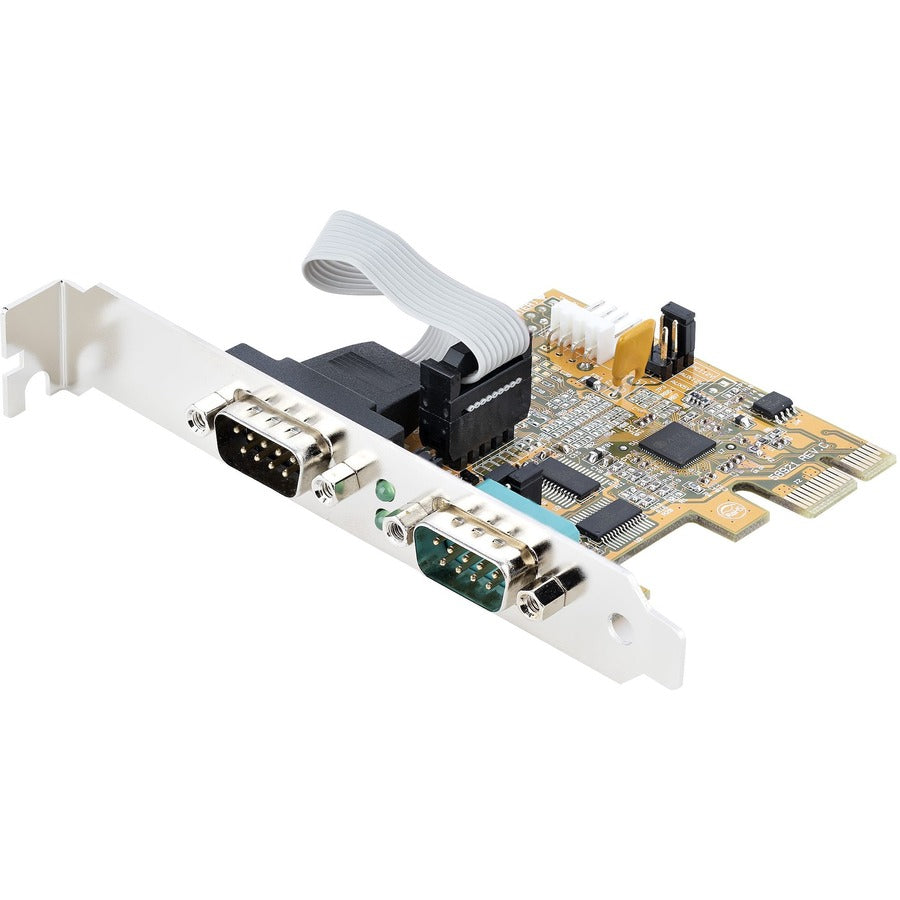

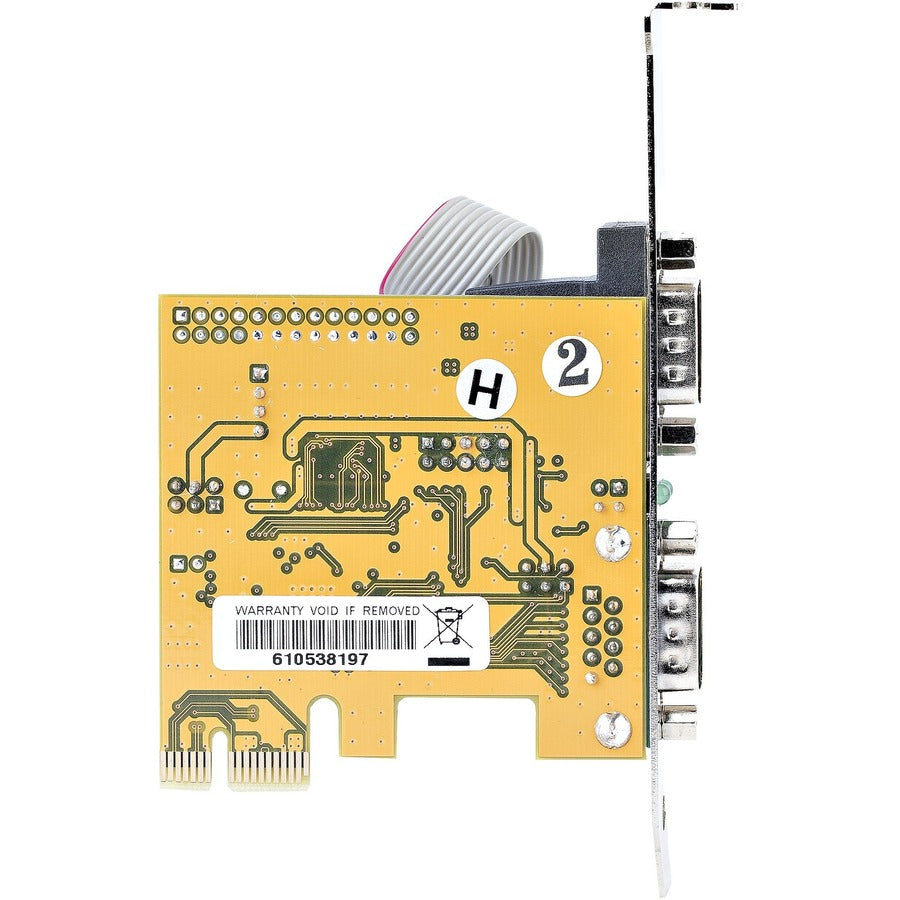

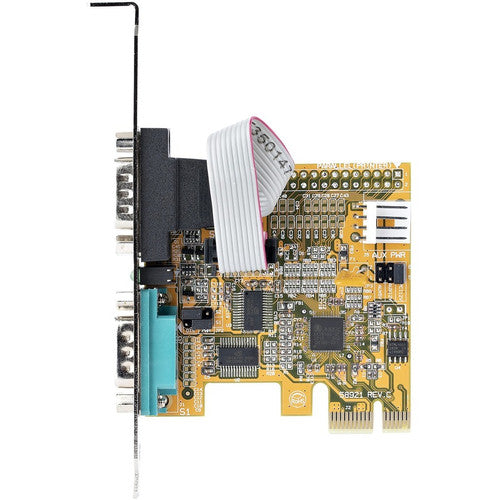

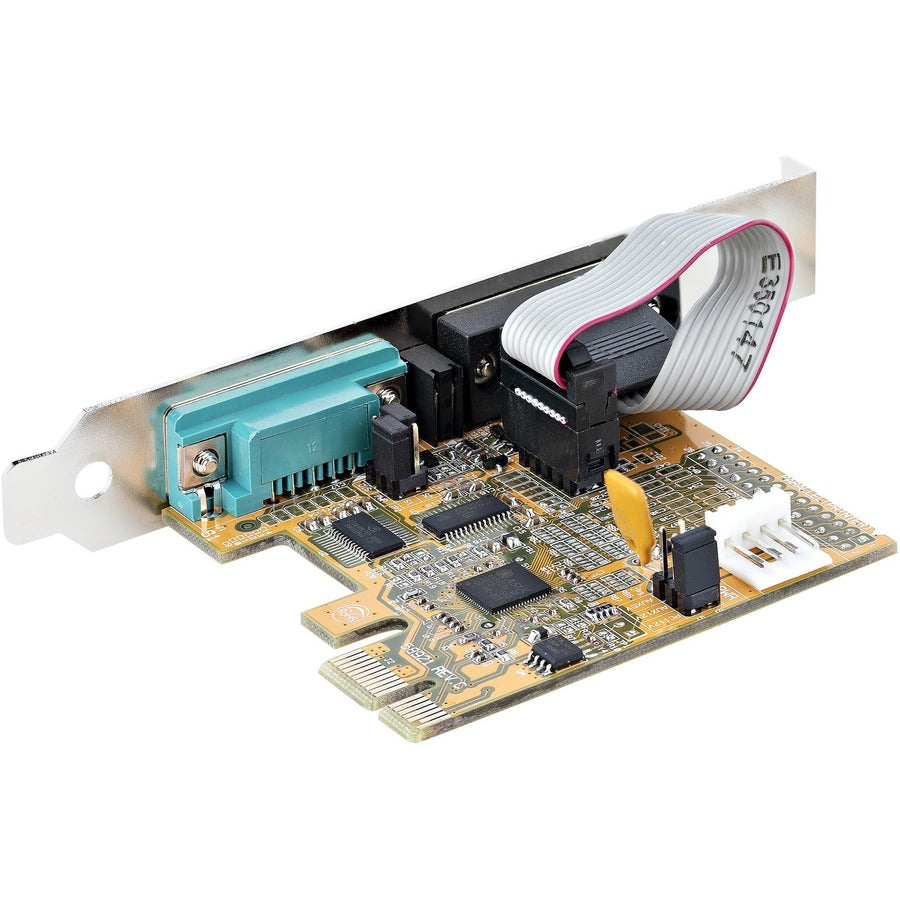

• PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this PC serial card. Features support for high performance 16C1050 UART on both DB9 male ports. Monitor activity with the built-in LED status lights on the PCI express DB9 card
• DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc. The UART PCIe card supplies 5V or 12V power over pin 9. Low-profile brackets are included
• APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories. Continue using legacy hardware with this RS232 PCIe card. DB9 ports accept screw locking serial cables
• DUAL SERIAL PORT CARD SPECS: 16C1050 UART
• Max Baud 921.6 Kbps per Port
• 256 Byte FIFO
• COM Retention
• Supports Windows and Linux
• Asix AX99100 Chipset
• Odd/Even/Mark/Space/None Parity Modes
• 5/6/7/8/9 Data Bits
• PCIe 2.0 x1

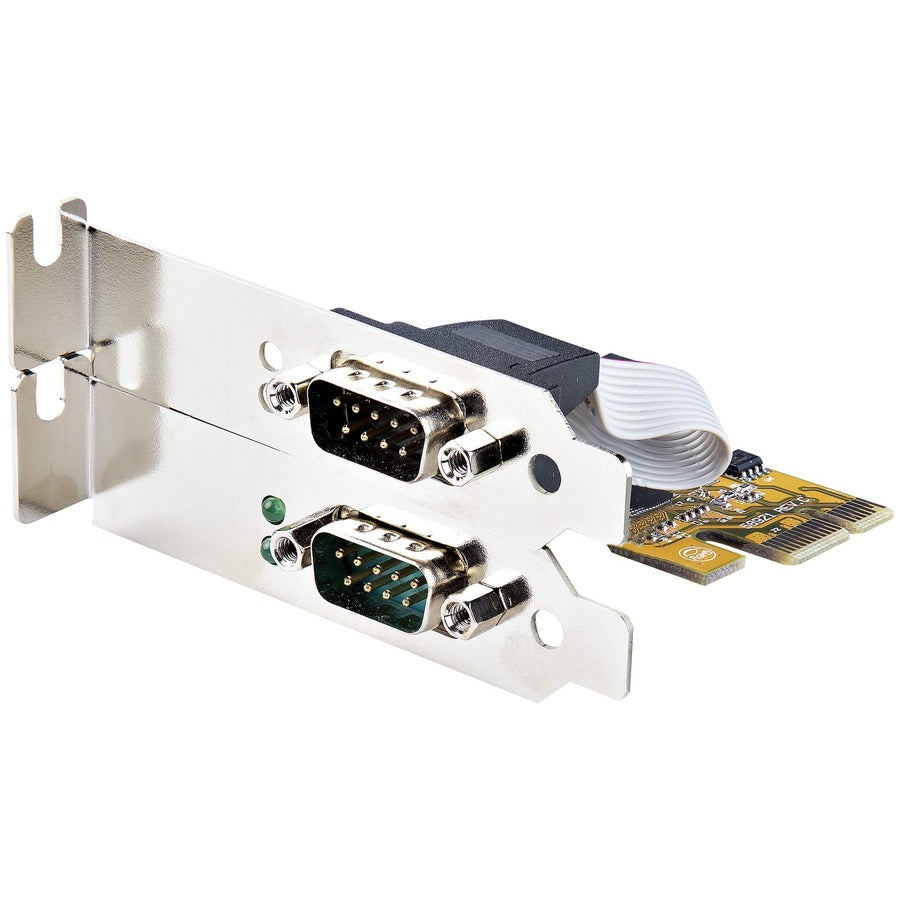

• Low-profile Brackets
• THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

• Environmental Certification : RoHS,WEEE
• Environmentally Friendly : Yes
• Additional Warranty Information :

  2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

• Platform Supported : PC,Linux
• Limited Warranty : 2 Year
• Number of Serial Ports (External) : 2
• Form Factor : Plug-in Card

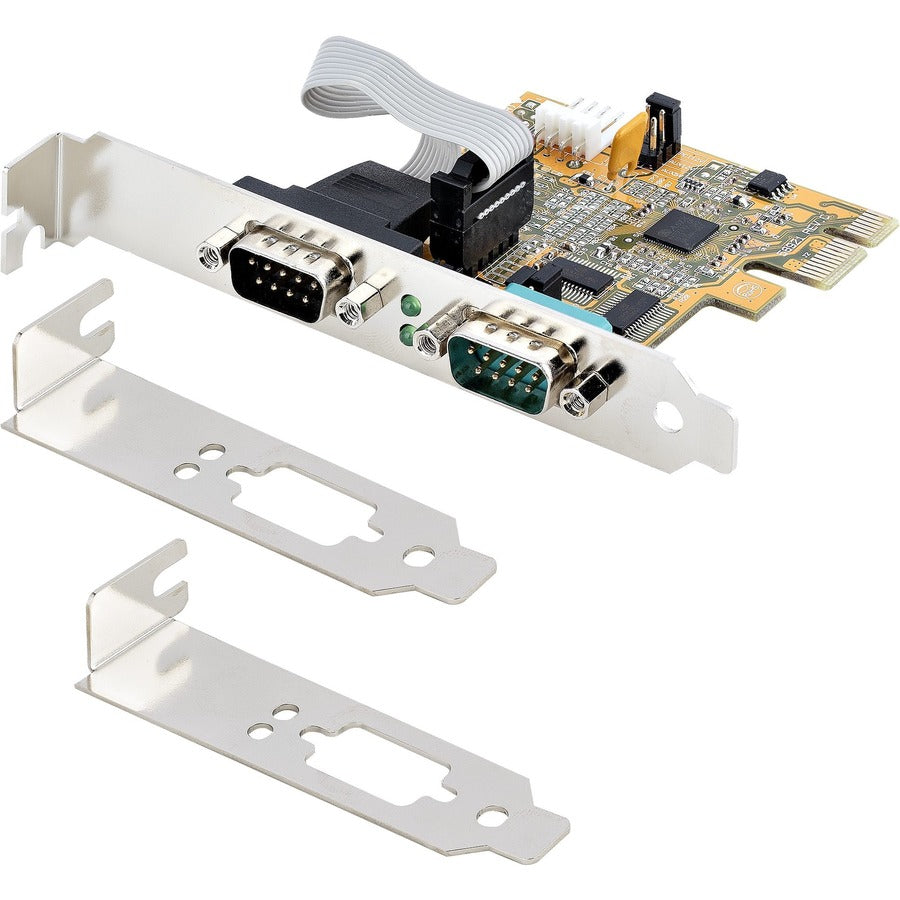

• Package Contents :
  • Two-port PCIe Serial Card
  • 2 x Low-Profile Brackets
  • 1 x Quick-Start Guide
• Manufacturer Website Address : http://www.startech.com
• Host Interface : PCI Express x1
• Product Type : Serial Adapter
• Card Height : Low-profile
• Manufacturer : StarTech.com
• Country of Origin : Taiwan
