Description

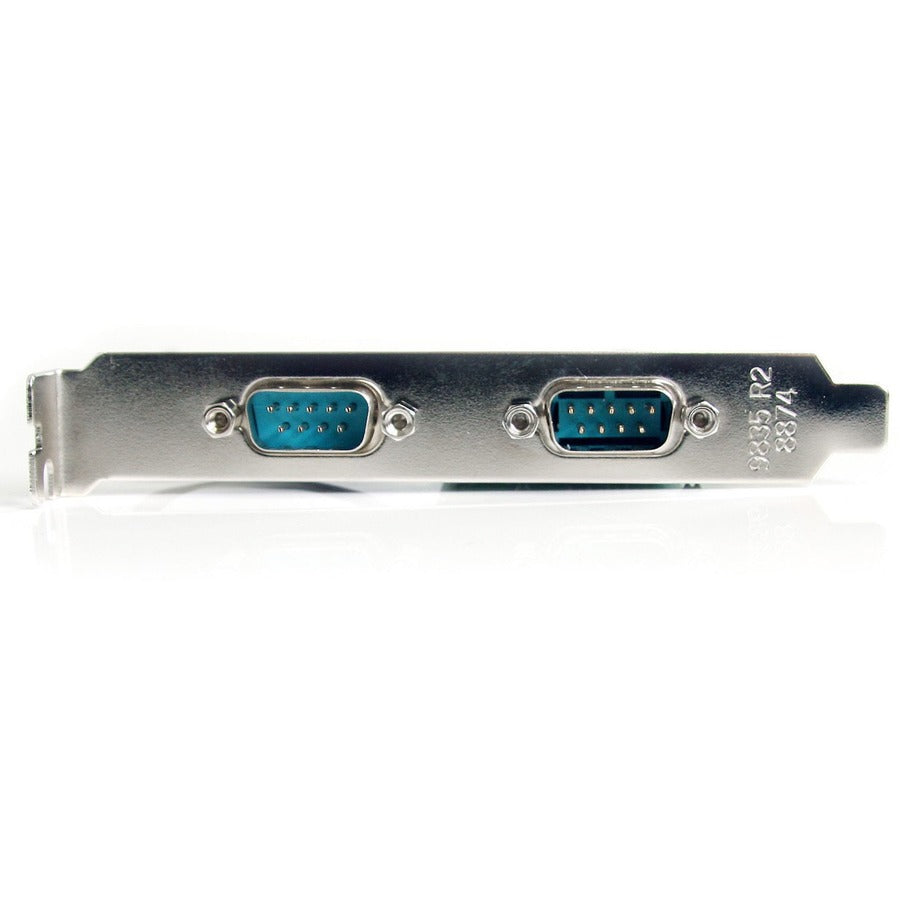

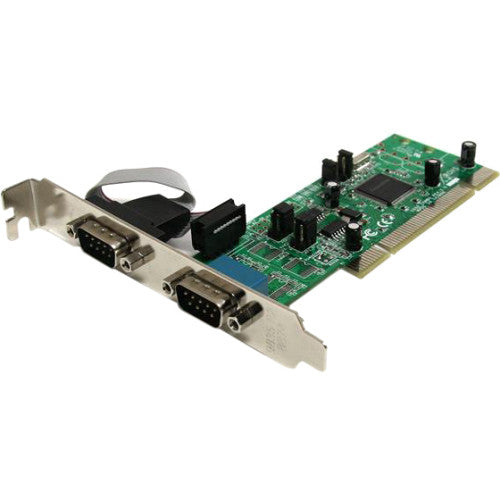

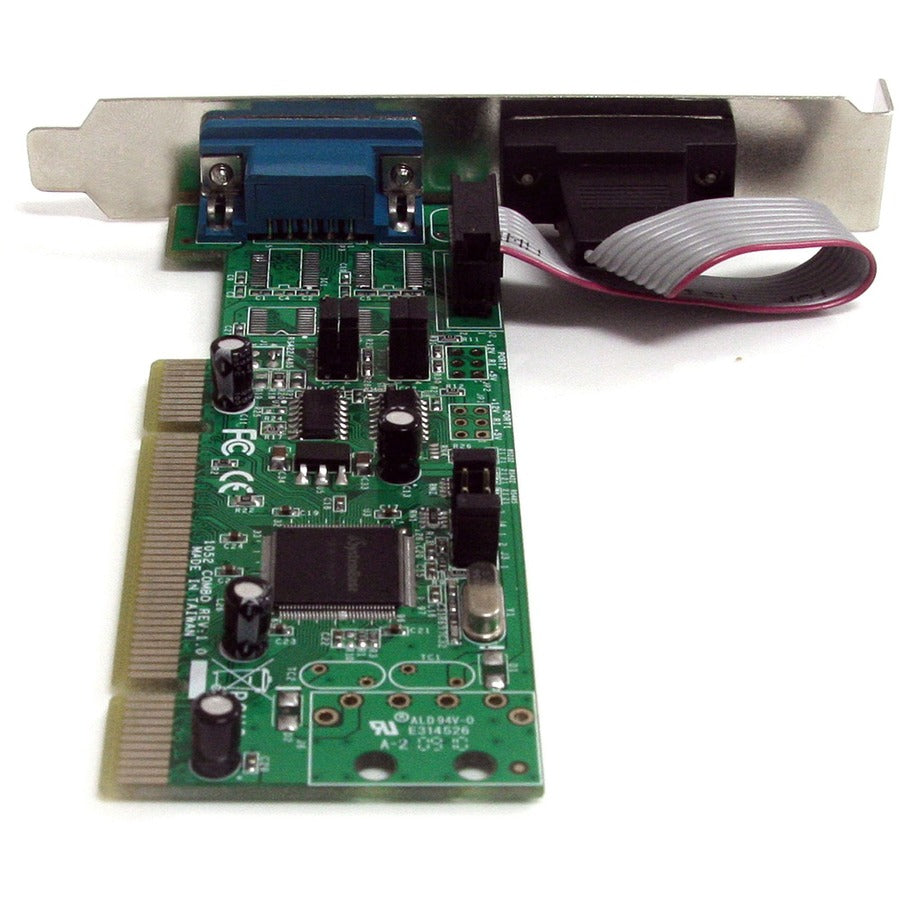

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Key features
- Supports PCI Power Management 1.1
- Compliant with PCI Local Bus Specification 2.3
- Jumper pins for RS422/485 toggling
- Supports Hardware and Software flow control
- Supports 2-wire and 4-wire RS485 modes
- 16C1050 UART with 256-byte Deep FIFO
- Supports maximum data transmission rate of 128Kbps
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
Specifications
- Environmental Certification: RoHS,WEEE,REACH
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Platform Supported: PC
- Limited Warranty: Lifetime
- Number of Serial Ports (External): 2
- Packaged Quantity: 1
- Form Factor: Plug-in Card
- Package Contents: 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART Standard and Low Profile/half-height Brackets Driver CD
- Product Type: Serial Adapter
- Card Height: Dual-profile
- Host Interface: Universal PCI
- Manufacturer: StarTech.com
- Country of Origin: Taiwan
- UART Type: 161050
