Description

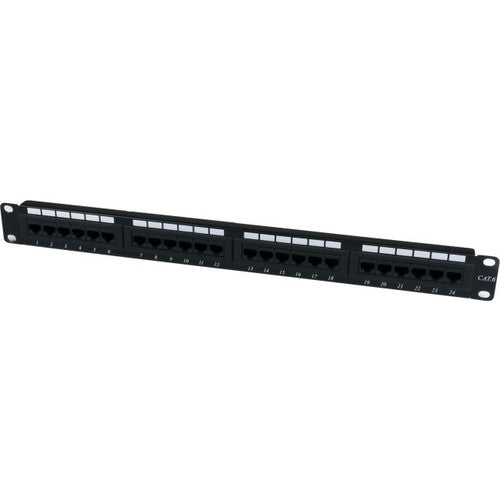

The C6PANEL2424-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

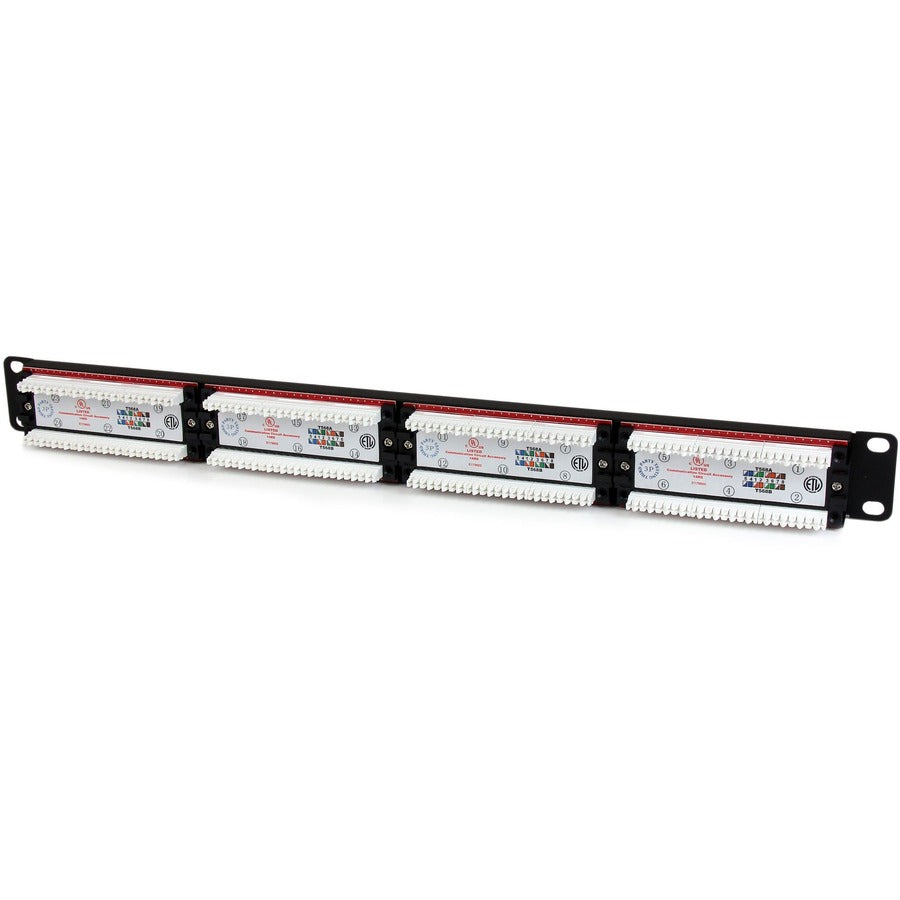

For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables.The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com's 2-year warranty.
- Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
- Writable and erasable marking surfaces for each port
- Terminated using 110-type punch tool
- Supports both Cat5e and Cat6 cables

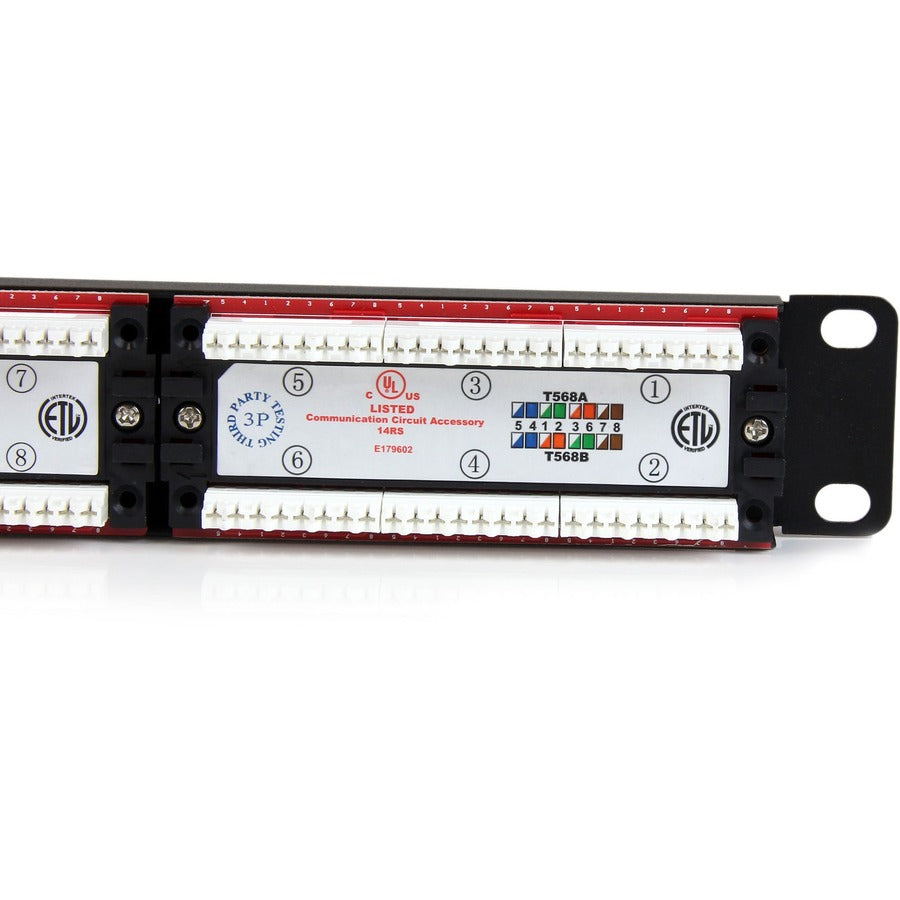

- Color coded for both T568A and T568B installations
- Product Color : Black
- Country of Origin : China
- Environmental Certification : RoHS,REACH,WEEE
- Number of RJ-11 Ports : 24
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Form Factor : Rack-mountable
- Compatible Rack Width : 19"
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 24 Port 1U Rackmount Cat 6 110 Patch Panel
- 4 x M6 Screws
- 4 x M5 Screws
- Total Number of Ports : 24
- Product Type : Network Patch Panel
- Manufacturer : StarTech.com
- Compatible Rack Unit : 1U
- Number of Network (RJ-45) Ports : 24
