Description

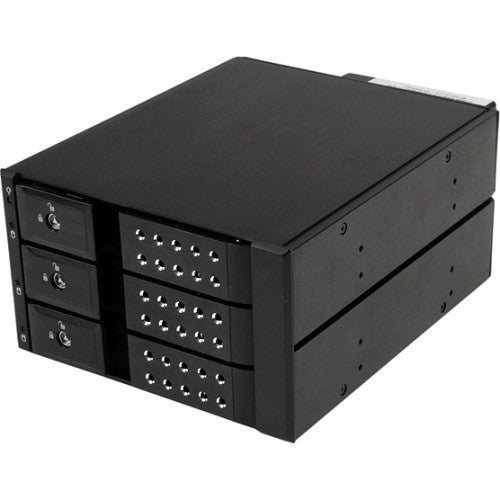

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- UL VO flammability rating
- Power and Activity LEDs for each drive
- Support for SAS revision I/II (3.0/6.0 Gbps)
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Trayless design for hot swap support
- Installs in two 5.25" drive bays
- Built-in fan
- 3 drive bay design
- Key lock design
- Solid aluminum construction
- Wireless LAN : No
- Environmental Certification : RoHS,REACH,WEEE
- Number of Hard Drives Supported : 3
- Environmentally Friendly : Yes
- Number of Hard Drives Installed : No
- Number of 3.5" Bays : 3
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Cooling Fan : Yes
- Form Factor : Internal
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 3 SATA HDD Backplane
- 1 x Installation Screw Kit
- 1 x Instruction Manual
- 2 x Bay Key s
- 3 x 18" SATA Cables
- Product Type : Drive Enclosure
- Host Interface : Serial ATA/600
- Manufacturer : StarTech.com
- Number of Total Expansion Bays : 3
- Compatible Drive Bay Width : 5.25"
- Country of Origin : China
- Drive Interface : Serial Attached SCSI (SAS),SATA/600
- Product Color : Black
- Product Material : Aluminum
