Description

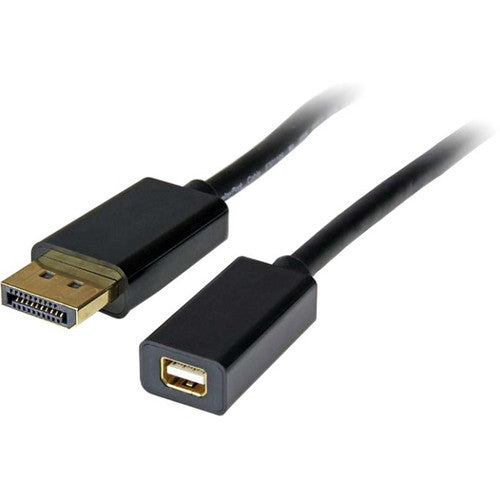

The DP2MDPMF3 3ft DisplayPort™ to Mini DisplayPort 1.2 Cable Adapter turns a Mini DP male connector into a regular DisplayPort male connector, making it easy to connect a Mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Toshiba® etc.).
The DP to Mini DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DP2MDPMF3 is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
- SPECS: 3 feet (91 cm)
- Black
- DP v1.2
- Standard DP Male to Mini-DP Female Converter
- 32 AWG
- PVC cable jacket, ABS connector shell
- Shield: Aluminium foil with Braid
- Protocols: HBR 2, MST, GTC
- Lifetime Warranty
- APPLICATIONS: DisplayPort to Mini DisplayPort cable is ideal for home/office/boardroom/classroom works w/ laptop w/Standard DP port / workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 3 ft (91 cm) DP male to mDP female extension cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- Data Transfer Rate : 21.6 Gbit/s
- Environmental Certification : RoHS,REACH,WEEE
- Cable Type : DisplayPort/Mini DisplayPort
- Environmentally Friendly : Yes
- Device Supported : Audio/Video Device,Monitor,Notebook,Computer
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Connector Plating : Gold
- Supported Resolution : 3840 x 2160
- Manufacturer Website Address : http://www.startech.com
- Product Type : Video Cable Adapter
- Manufacturer : StarTech.com
- Features : Molded,Strain Relief,Multi-Stream Transport (MST) Support,HDCP,DPCP
- Jacket Type : CMG
- Cable Length : 3 ft
- Country of Origin : China
- American Wire Gauge : 32 AWG
- Connector on First End Details : 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Black
- Connector on Second End Details : 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Female
- Connector Type on First End : DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End : Mini DisplayPort 1.2 Digital Audio/Video - Female
