Description

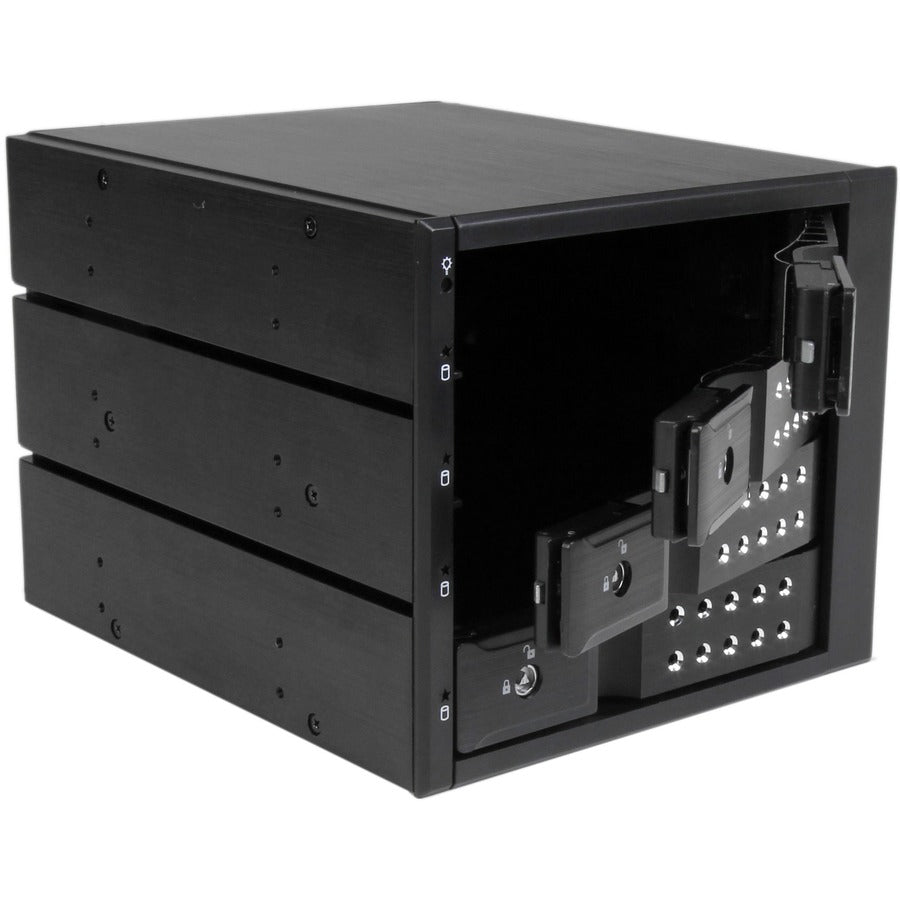

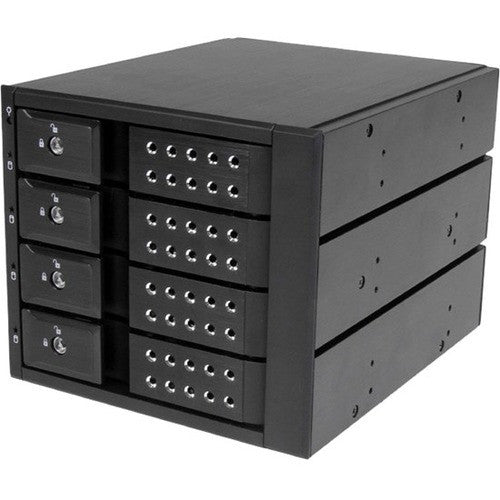

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Power and Activity LEDs for each drive
- UL94 - V0 flammability rating
- Support for SAS revision I/II (3.0/6.0 Gbps)
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Trayless design for easier hot swapping
- 4 drive bay design
- Installs in three 5.25" drive bays
- Built-in fan
- Key lock design
- Solid aluminum construction
- Wireless LAN : No
- Environmental Certification : RoHS,WEEE,REACH
- Number of Hard Drives Supported : 4
- Environmentally Friendly : Yes
- Number of Hard Drives Installed : No
- Number of 3.5" Bays : 4
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Cooling Fan : Yes
- Form Factor : Internal
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
- 8 x Installation Screws
- 2 x Drive bay Keys
- 4 x SATA Cables
- 1 x Instruction Manual
- Product Type : Drive Enclosure
- Host Interface : 6Gb/s SAS,Serial ATA/600
- Manufacturer : StarTech.com
- Number of Total Expansion Bays : 4
- Compatible Drive Bay Width : 5.25"
- Country of Origin : China
- Drive Interface : SATA/600,Serial Attached SCSI (SAS)
- Product Color : Black
- Product Material : Aluminum
