Description

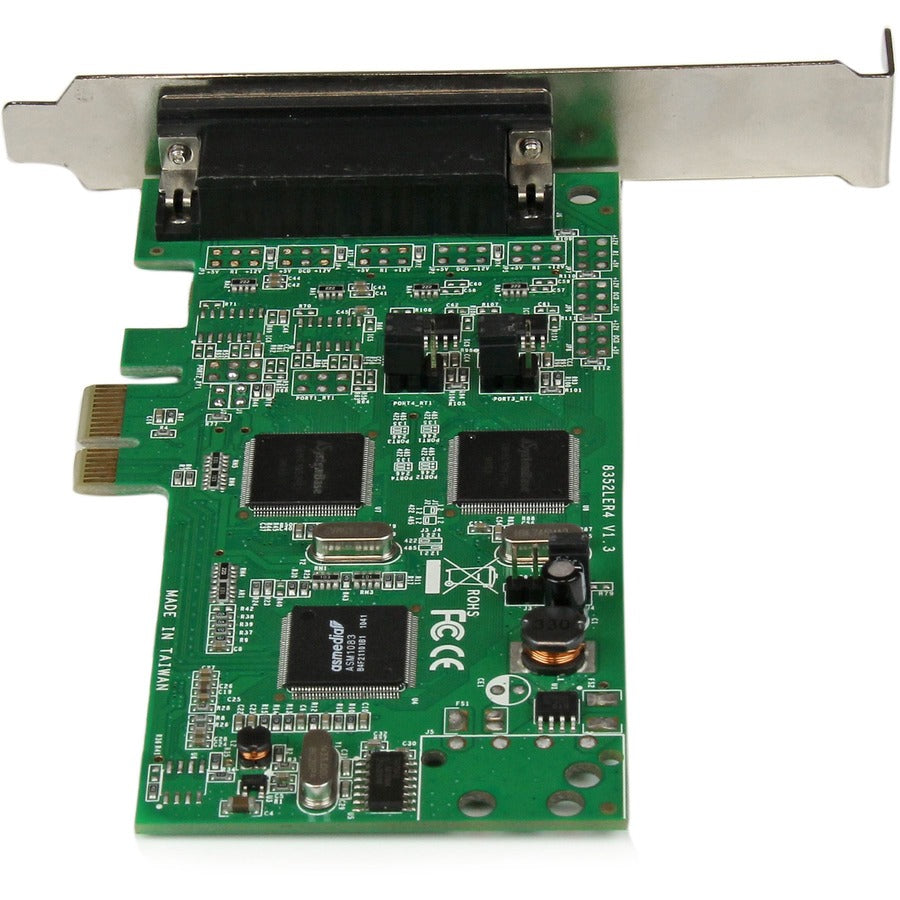

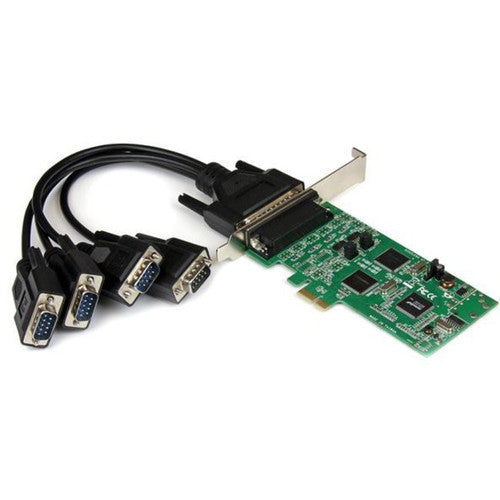

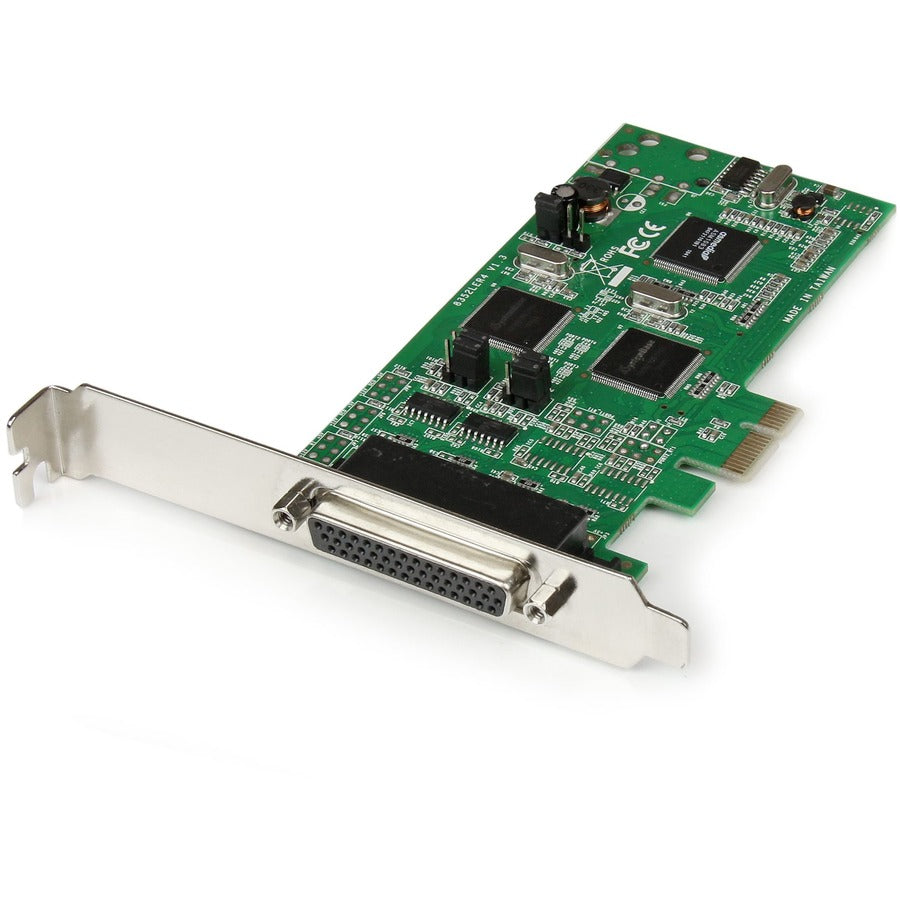

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
- Supports PCI Power Management 1.1
- Compliant with PCI-Express Specification 1.0a
- Standard and low-profile bracket included
- Supports 2-Wire / 4-Wire RS485 modes
- 256-byte deep FIFO per transmitter and receiver
- RS232 data transfer rates up to 460 Kbps
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
- Environmental Certification : RoHS,WEEE,REACH
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Ports Expandability : 4 x DB-9 RS-232/422/485 - Serial, Via Cable
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Form Factor : Plug-in Card
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485

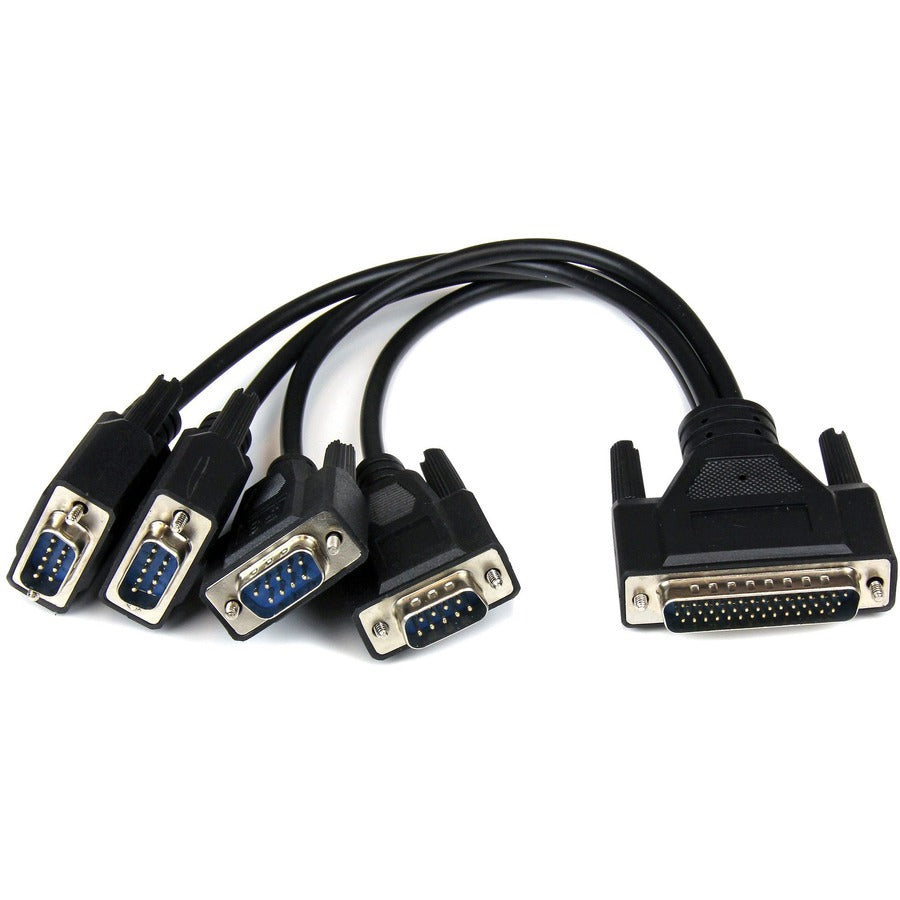

- 1 x Breakout Cable
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Product Type : Multiport Serial Adapter
- Maximum Data Transfer Rate : 3.59 Mbit/s
- Host Interface : PCI Express x1
- Manufacturer : StarTech.com
- Country of Origin : Taiwan
