Description

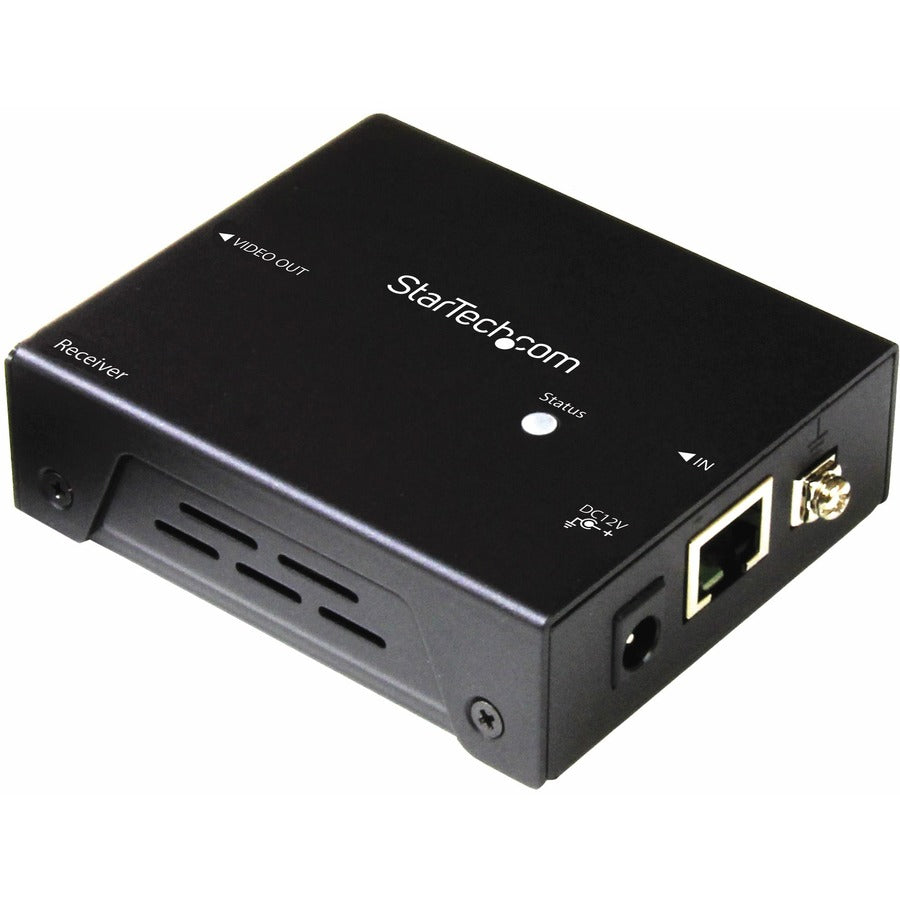

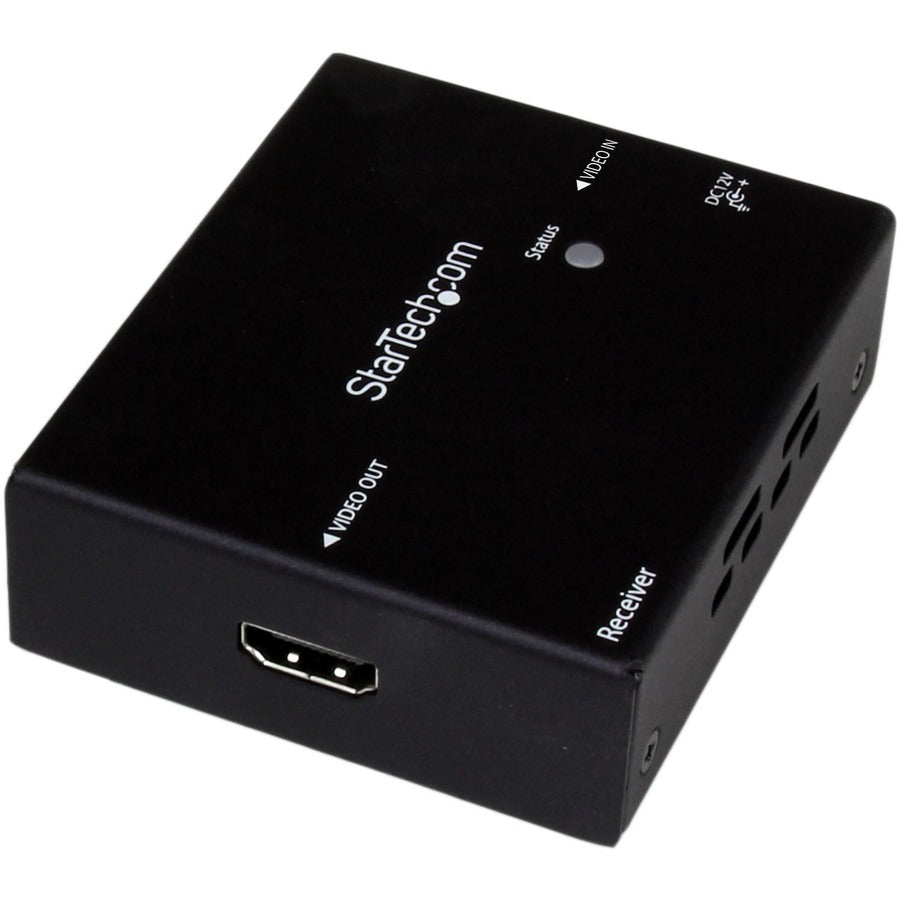

This 4K HDMI extender uses HDBaseT to transmit your HDMI A/V signal to a remote location up to 70 m (230 ft.) away.
Easy and Discreet Installation

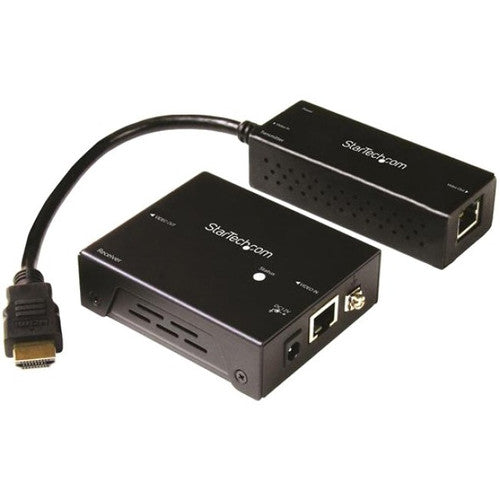

The transmitter in this HDMI HDBaseT extender kit features a small footprint and built-in HDMI cable that connects directly to your source for reduced clutter. It's powered from a USB port on your source device, which makes it easier to install in areas where power outlets may be limited. Mounting hardware is included for the receiver for a discreet, professional installation.
Get 4K Video at 130 ft. (40 m)
This HDMI over CAT6 extender maintains your UHD 4K picture quality, even at 130 feet away from your video source. Because the extender is backward compatible with 1080p and lower resolutions at 230 feet away, you can comfortably use this extender to make any video source look great. The extender also supports 7.1 audio to ensure all audio channels are captured.
Seamless Integration with Your Existing Infrastructure
The kit extends HDMI over a single cable, unlike some HDMI extenders that require two cables, reducing potential failure points and lowering your cabling costs. Ideal for digital signage, the HDMI over CAT6 extender uses standard CAT5e, CAT6 or CAT7 cables to extend HDMI video over the Ethernet infrastructure that's already in your building.
The ST121HDBTDK is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Mounting hardware included
- 7.1 audio support
- Easy integration with existing CAT5/CAT6/CAT7 infrastructure
- Astonishing picture quality with support for UHD resolutions up to 4K
- Simple and versatile installation with a compact, USB-powered transmitter that features a built-in HDMI cable
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 4096 x 2160
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 229.66 ft (70000 mm)
- Number of Input Devices Supported : 1
- Limited Warranty : 2 Year
- Number of Output Devices Supported : 1
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 x HDBaseT Ttransmitter
- 1 x HDBaseT Receiver
- 1 x USB Power Cable (Transmitter)
- 1 x Universal Power Adapter (Receiver) (NA / EU / UK / AU)
- 1 x Mounting Kit (Receiver)
- 1 x Screw Kit for Mounting
- 1 x Footpad Set (Receiver)
- 1 x Quick Start Guide
- Network (RJ-45) : Yes
- HDMI Out : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : 4K
- Twisted Pair Cable Standard : Category 7
- Manufacturer : StarTech.com
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 2
- Country of Origin : Taiwan
- Connectivity Technology : Wired
