Description
Experience What DisplayPort 1.4 Has to Offer
This 8K DisplayPort cable supports all DP 1.4 features:
- Resolutions up to 8K at 60Hz
- HDCP 2.2 support
- High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
- High Dynamic Range (HDR)
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- 32 uncompressed digital audio channels
- Backward compatible with 5K 60Hz, 4K 120Hz and previous generations of DP
Easy Installations
This durable yet lightweight active DP 1.4 cable features both copper and optical fiber conductors enabling a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed. The DisplayPort connectors also feature latches that provide a secure connection between your devices.
Comprised of a fiber and copper wire mix, this active cable is less susceptible to EMI interference, for a clear and reliable audio/video signal.
DP14MM15MAO is backed by a StarTech.com lifetime warranty and free lifetime technical support
Note: This cable features unidirectional architecture, please refer to the ""display"" label on the HDMI connectors to ensure installed in the correct direction.

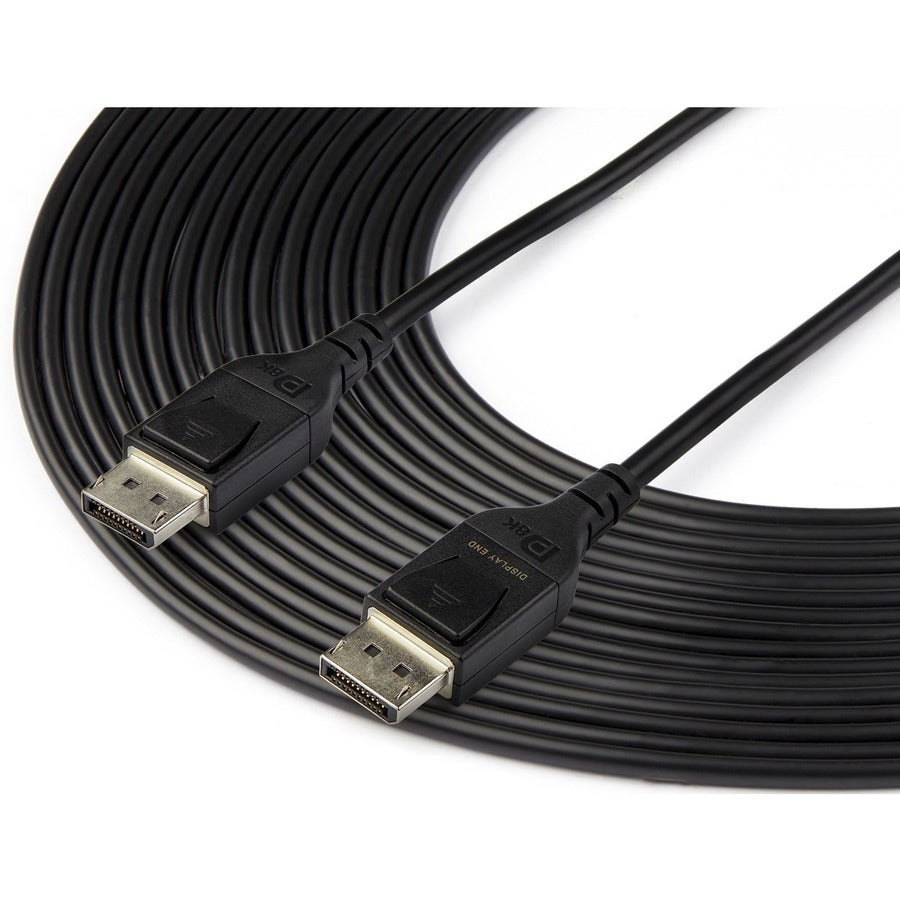

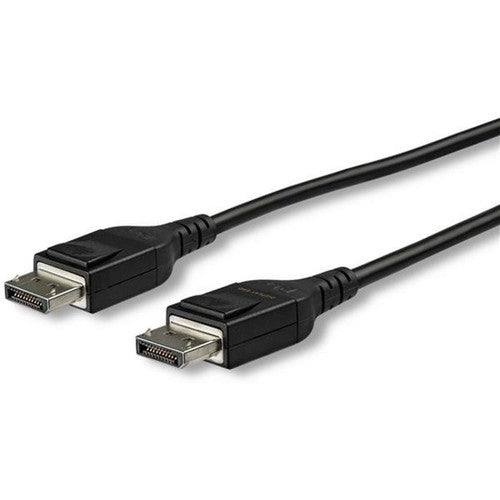

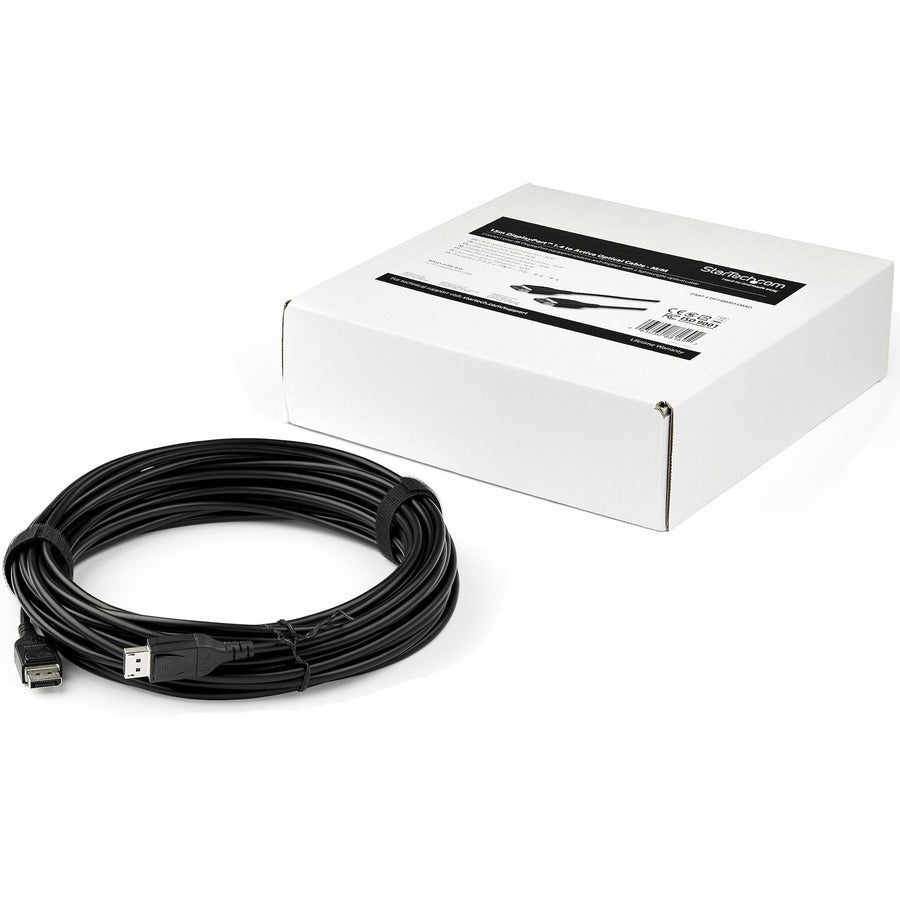

- DISPLAYPORT 1.4 OPTICAL CABLE: 49.2'/15m hybrid copper & fiber DisplayPort 1.4 cable; 8K 60Hz (7680x4320), 4K 120Hz (3840x2160), 32.4Gbps, HDR10, HBR3, 32ch audio (5.1/7.1/Dolby TrueHD/Atmos), MST, GTC for precise audio channel timing; future-proof for 8K
- ACTIVE CIRCUITRY: DisplayPort Active Optical cable with unique DisplayPort bus powered Electro-Optical amplifier boosts video signals over longer distances up to 15 meters (49.2 feet) (no external power supply needed); Latching DP connectors
- RELIABLE DESIGN: DP Active Optical Cable (AOC) w/ flexible PVC jacket and strain relief absorb stress of frequent bends; Internal wire manager, metal connector sub-structure & Al-Mylar Foil with Braid provide EMI shielding & superior signal integrity
- APPLICATIONS: Ideal for home, office, boardroom, classroom; works w/ professional workstations: Dell XPS 11th Gen, HP Z2 G8 Tower with Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo & NVIDIA Quadro P graphics cards; Use with Ultra HD (UHD) monitors/TV
- SPECS: 15 m (49.2 ft)
- Black
- DisplayPort version 1.4 cable

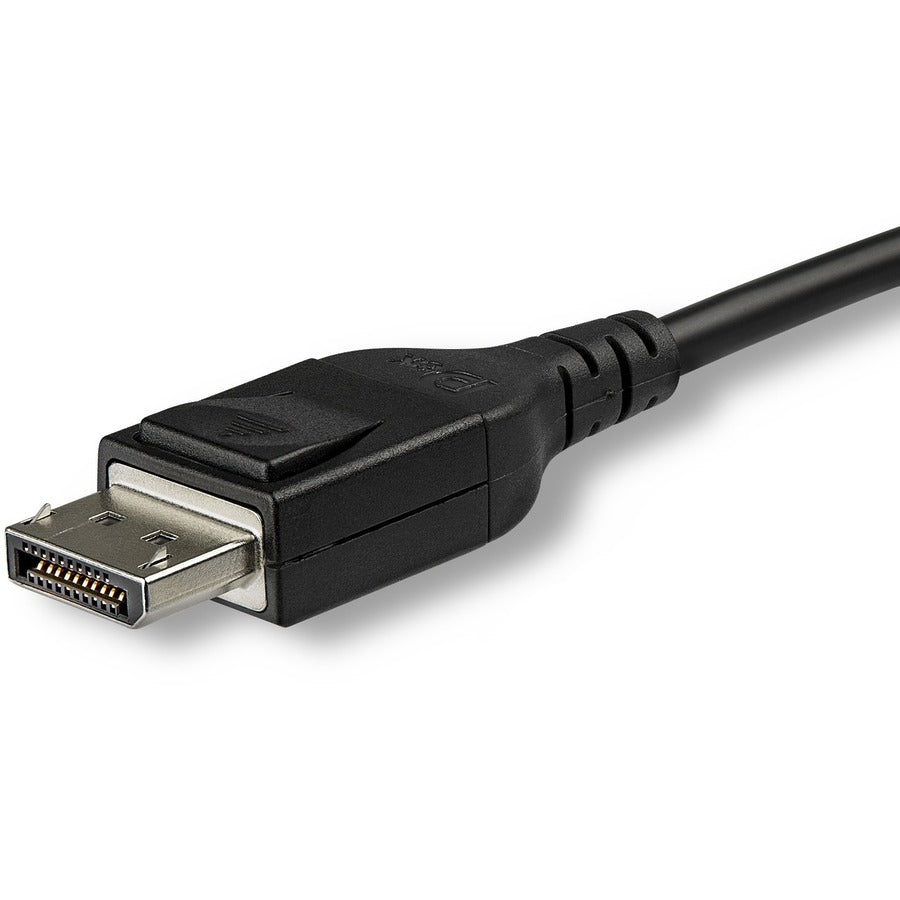

- DP Male/Male Cord
- PVC Jacket
- Al-Mylar foil w/ Braid
- DSC 1.2, HDCP 2.2
- Works w/ DP 1.3/1.2 (1080p/4K)
- 2-Year Warranty
- Note: DP connector labelled "Display End" connects to display
- Data Transfer Rate : 32.4 Gbit/s
- Environmental Certification : RoHS,REACH,WEEE
- Cable Type : Fiber Optic
- Environmentally Friendly : Yes
- Shielding : Yes
- Device Supported : Notebook,Audio/Video Device,Desktop Computer,Monitor,TV,Projector,Digital Signage Display,Graphics Card
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Connector Plating : Nickel
- Supported Resolution : 7680 x 4320
- Manufacturer Website Address : http://www.startech.com
- Product Type : Video Cable
- Manufacturer : StarTech.com
- Features : Active,Signal Booster,HDCP 2.2,Flexible,Locking Latch,EMI Protection,Latching Connector,Display Stream Compression (DSC) 1.2,Multi-Stream Transport (MST) Support,Strain Relief,Stress Resistant
- Cable Length : 49.2 ft
- Compatibility :
- Dell XPS 11th Gen
- HP Z2 G8 Tower
- Radeon Vega Frontier/Pro WX Series/W5500/Pro Duo
- NVIDIA Quadro P Graphics Cards
- Country of Origin : Taiwan
- American Wire Gauge : 28 AWG
- Connector on First End Details : 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Black
- Connector on Second End Details : 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
- Connector Type on First End : DisplayPort 1.4 Digital Audio/Video - Male
- Connector Type on Second End : DisplayPort 1.4 Digital Audio/Video - Male
