Description

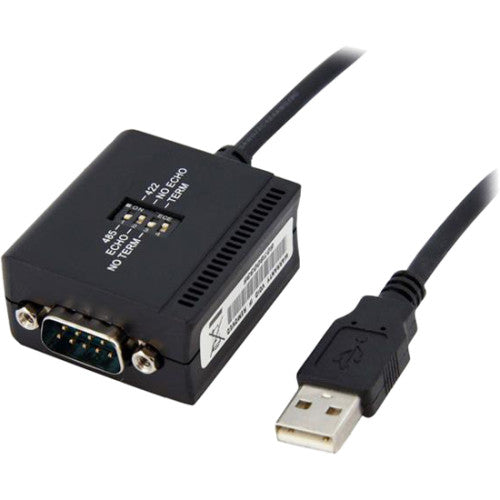

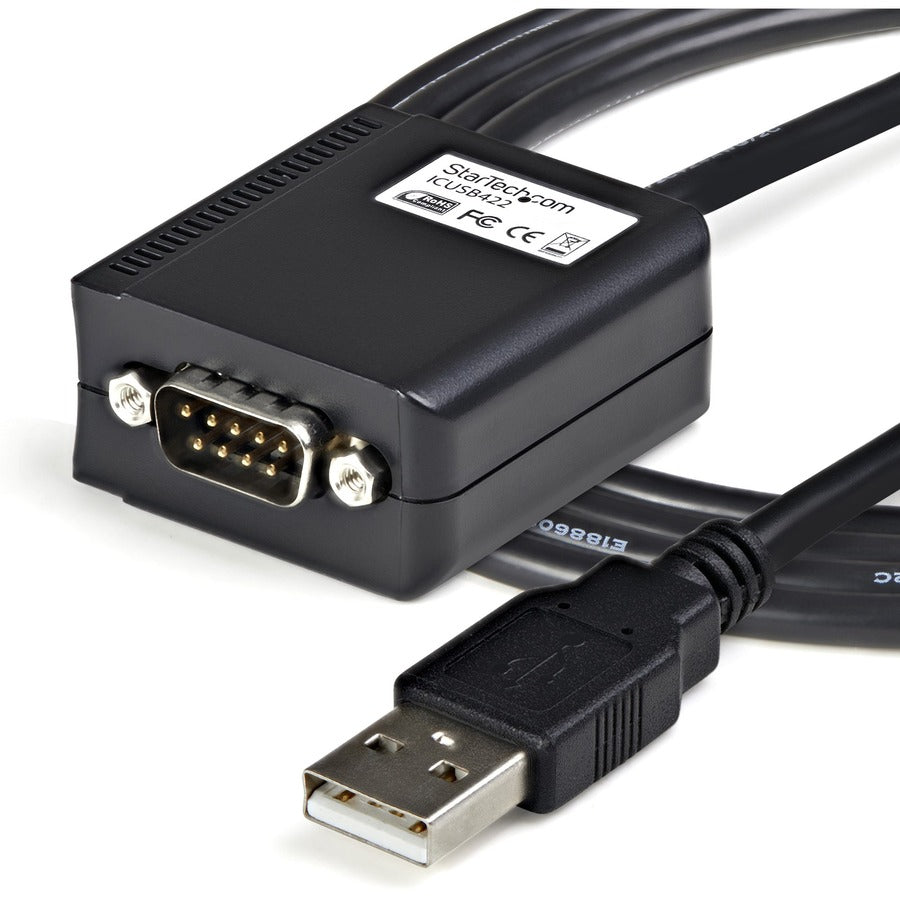

The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software.
The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer.
The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Two interface modes; 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)

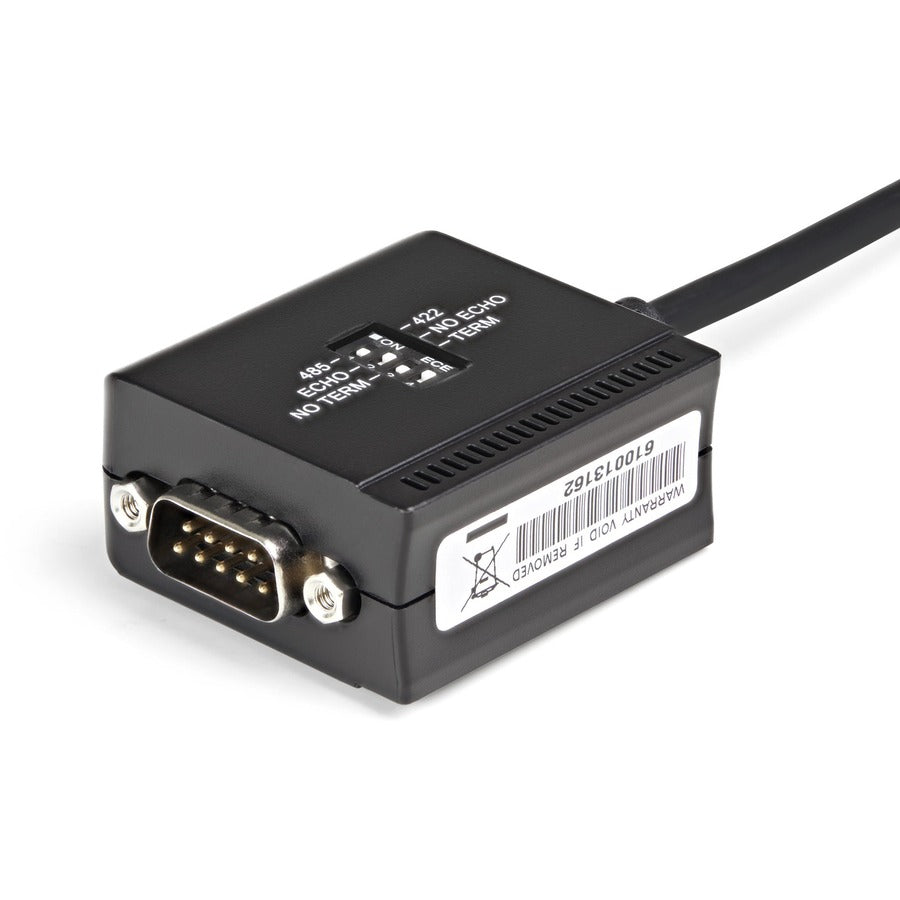

- 120 OHM terminator that can be Enabled/Disabled by DIP switch
- Integrated adapter and cable eliminates the need for additional cables
- Backwards compatible with USB 1.1
- Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
- Supports COM Port retention
- Configurable port for RS422 or RS485 support
- Being able to rename devices no matter how many are plugged in
- USB to Straight-Through RS422/485 Serial Adapter
- Supported baud rates from 300bps to 921.6 Kbps
- Environmental Certification : RoHS,REACH,WEEE
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 6ft RS422/485 USB Serial Adapter with COM Retention
- 1 x Driver CD
- 1 x Instruction Manual
- Product Type : Data Transfer Adapter
- Manufacturer : StarTech.com
- Country of Origin : Taiwan
- Connector on First End Details : 1 x 9-pin DB-9 RS-422 Serial - Male
- Product Color : Black

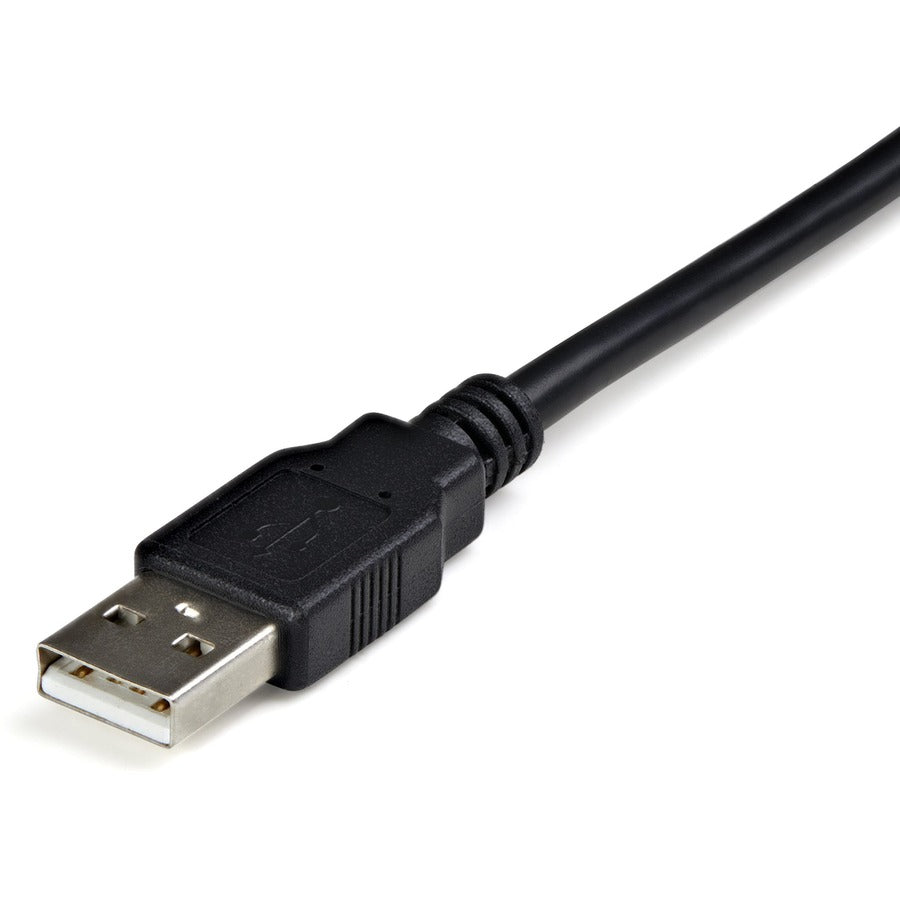

- Connector on Second End Details : 1 x USB 1.1 Type A - Female
- Connector Type on First End : DB-9 RS-422 Serial - Male
- Connector Type on Second End : USB 1.1 Type A - Female
