Description

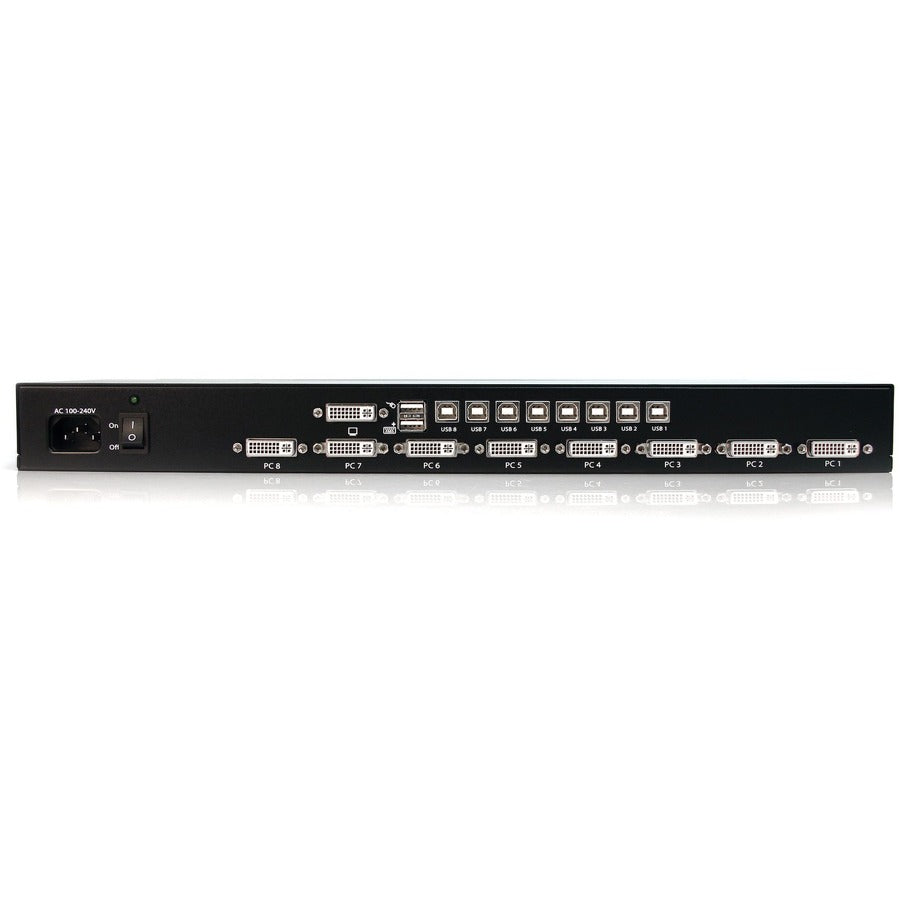

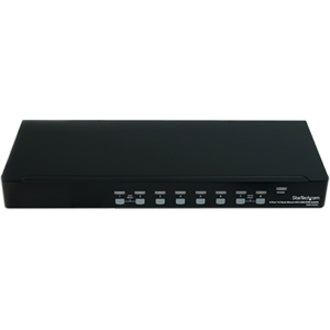

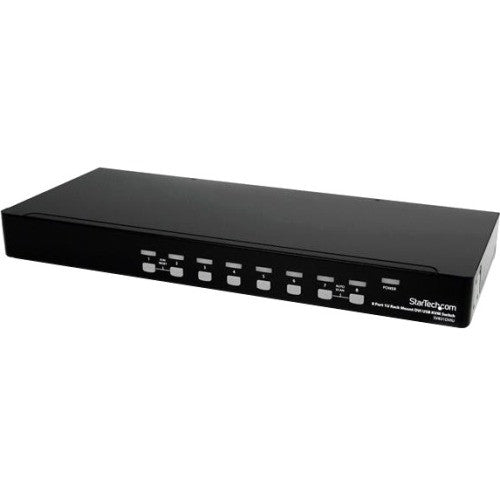

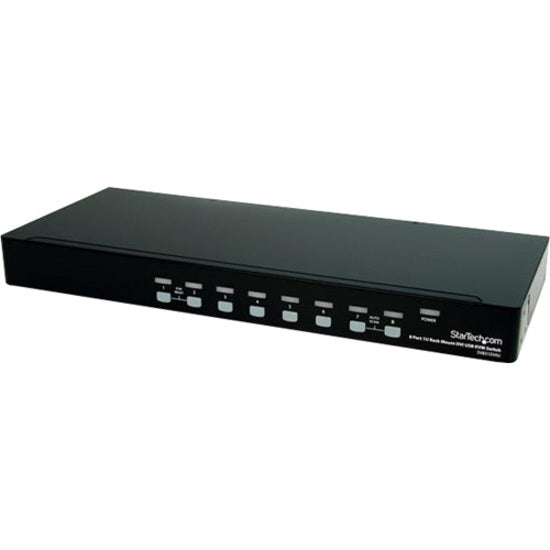

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
- (Pro)
- computers
- Supports Microsoft IntelliMouse
- and restored when switching
- Supports Mac? and Sun keyboard mapping - Keyboard states automatically saved
- USB console interfaces for keyboard and mouse
- Connects to USB-based computer systems
- Auto-scan function cycles through computers sequentially
- Front panel push-buttons and Hot-key functions allow for easy switching
- OS independent ? No software or drivers required
- Support for most combo/wireless keyboard and mice
- Can be used with DVI to HDMI adapters to connect HDMI based systems
- Supports DVI/HDMI resolutions up to 1920x1200
- Environmental Certification : RoHS,WEEE
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- USB : Yes
- Number of Computers Supported : 8
- Number of DVI Ports : 9
- Limited Warranty : 3 Year
- Packaged Quantity : 1
- Form Factor : Rack-mountable
- Number of USB Ports : 10
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 8 Port 1U Rack Mount DVI USB KVM Switch
- 1 x Set Rack-Mount Brackets
- 3 x Power Cords (NA/EU/UK) or AU in Australia
- 1 x User Manual
- Product Type : KVM Switchbox
- DVI : Yes
- Manufacturer : StarTech.com
- Input Voltage Range : 110V AC to 240V AC
- Graphic Mode : WUXGA
- Country of Origin : Taiwan
- Rack Height : 1U
