Description

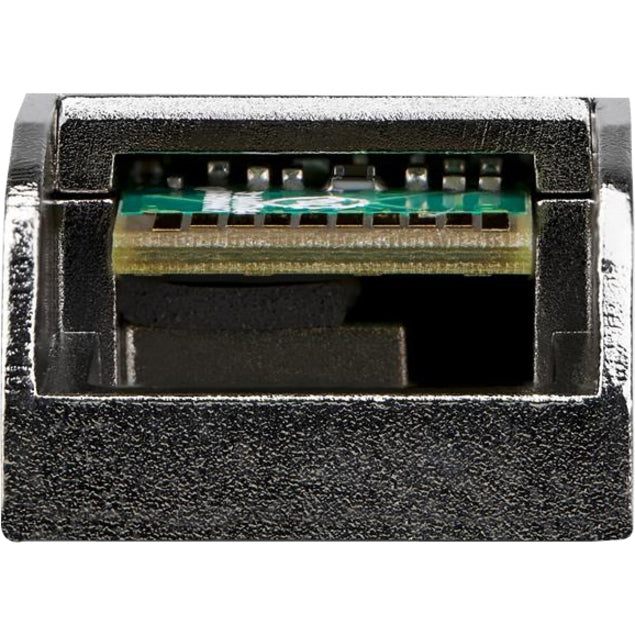

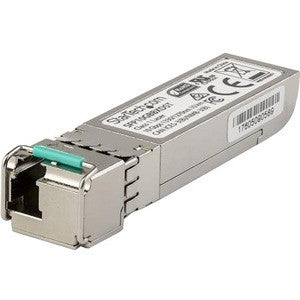

The SFP10GBX10US is a Dell EMC SFP-10G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBX10DS. They are designed, programmed and tested to work with 10GBase-BX10 compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
- Wavelength: 1330nmTx/1270nmRx
- Maximum Data Transfer Rate: 10Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,736,187 hours
- Power Consumption: < 1.3W
- DDM: Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% DELL EMC SFP-10G-BX10-U COMPATIBLE: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 10GBASE-BX-U
- 10Gbps
- 10G Bi-Directional Upstream
- Single Mode (SMF)
- Environmental Certification : RoHS,REACH,WEEE
- Ethernet Technology : 10 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Form Factor : Hot-swappable
- Manufacturer Website Address : http://www.startech.com
- Total Number of Ports : 1
- Product Type : SFP+
- Connector Type : LC
- Manufacturer : StarTech.com
- Application/Usage : Data Networking,Optical Network
- Compatibility : MSA Compliant
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Single-mode
- Country of Origin : China
- Network Technology : 10GBASE-BX10-U
- Interfaces/Ports Details : 1 x LC Duplex 10GBASE-BX10-U Network
