Description

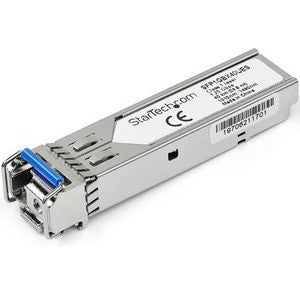

The SFP1GBX40UES is a Dell EMC SFP-1G-BX40-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX40DES. They are designed, programmed and tested to work with 1000Base-BX40 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Technical Specifications:
- Wavelength: 1310nmTx/1490nmRx
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 40 km (24.8 mi)
- Power Consumption: < 1.6W
- DDM: Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% DELL EMC SFP-1G-BX40-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-U
- 1Gbps
- 10G Bi-Directional Upstream
- Single Mode (SMF)
- Environmental Certification : RoHS,REACH,WEEE
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Form Factor : Hot-swappable
- Manufacturer Website Address : http://www.startech.com
- Total Number of Ports : 1
- Product Type : SFP (mini-GBIC)
- Connector Type : LC
- Manufacturer : StarTech.com
- Application/Usage : Data Networking,Optical Network
- Compatibility : MSA Compliant
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Single-mode
- Country of Origin : China
- Network Technology : 1000BASE-BX40-U
- Interfaces/Ports Details : 1 x LC Duplex 1000BASE-BX40-U Network
