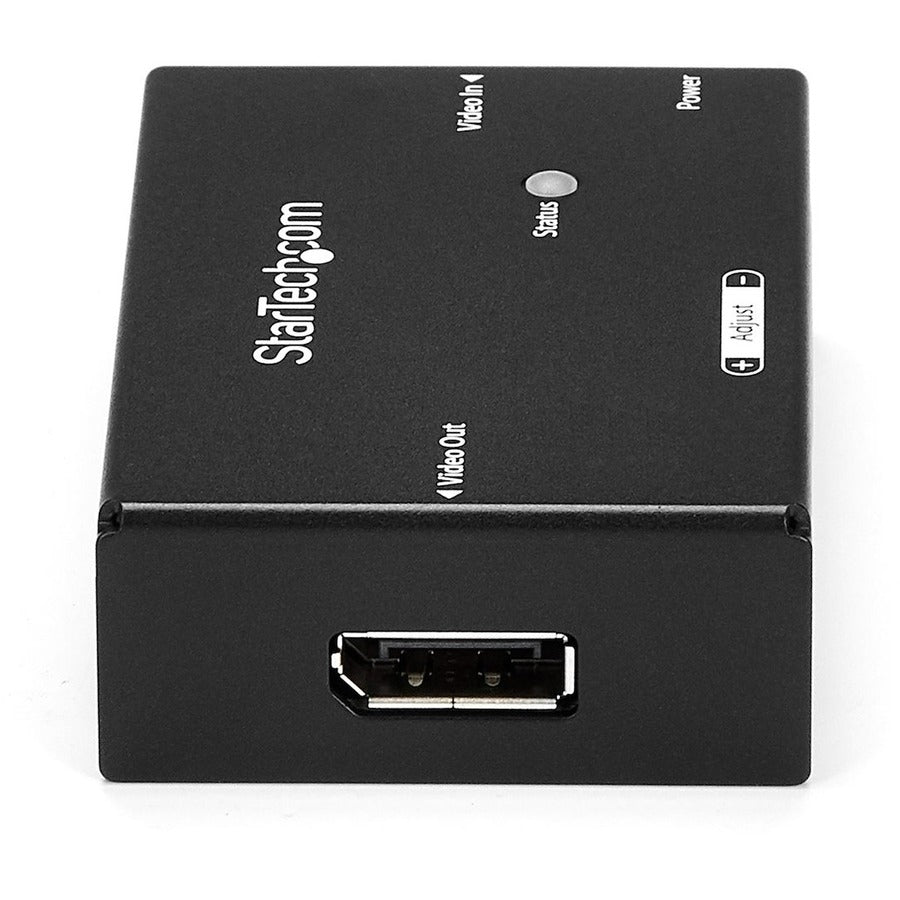

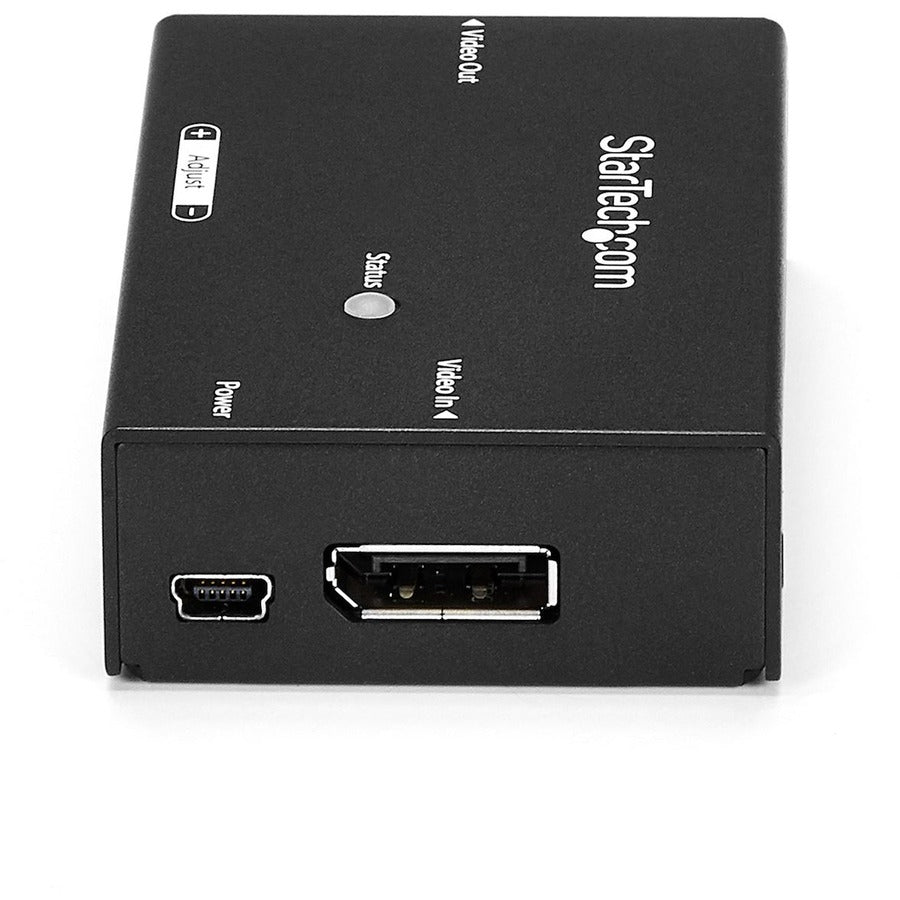

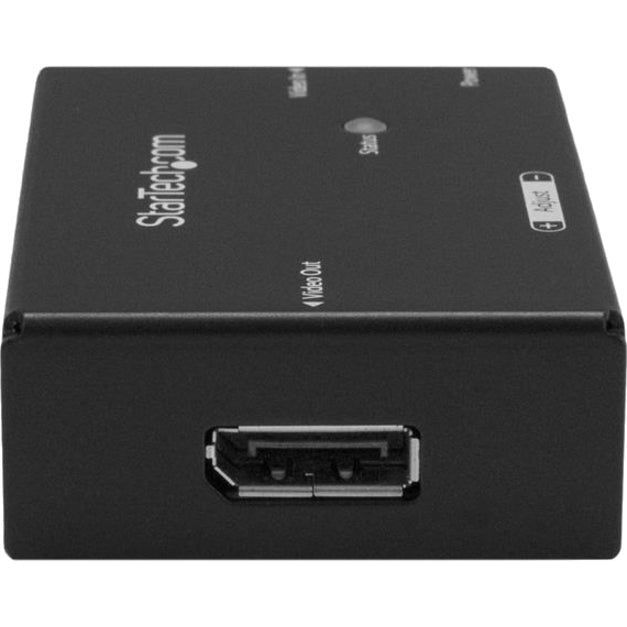

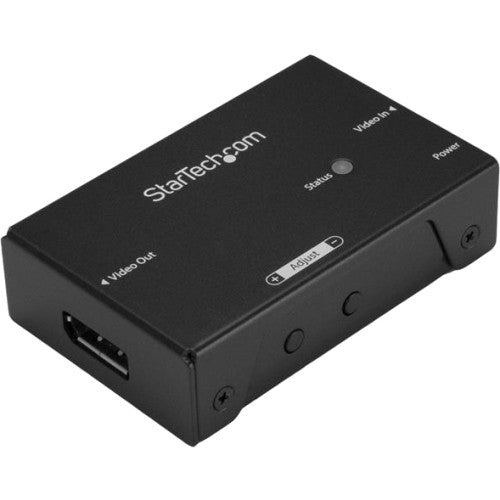

StarTech.com DisplayPort Signal Booster - DisplayPort Extender - DP Video Signal Amplifier - 4K 60Hz DPBOOST

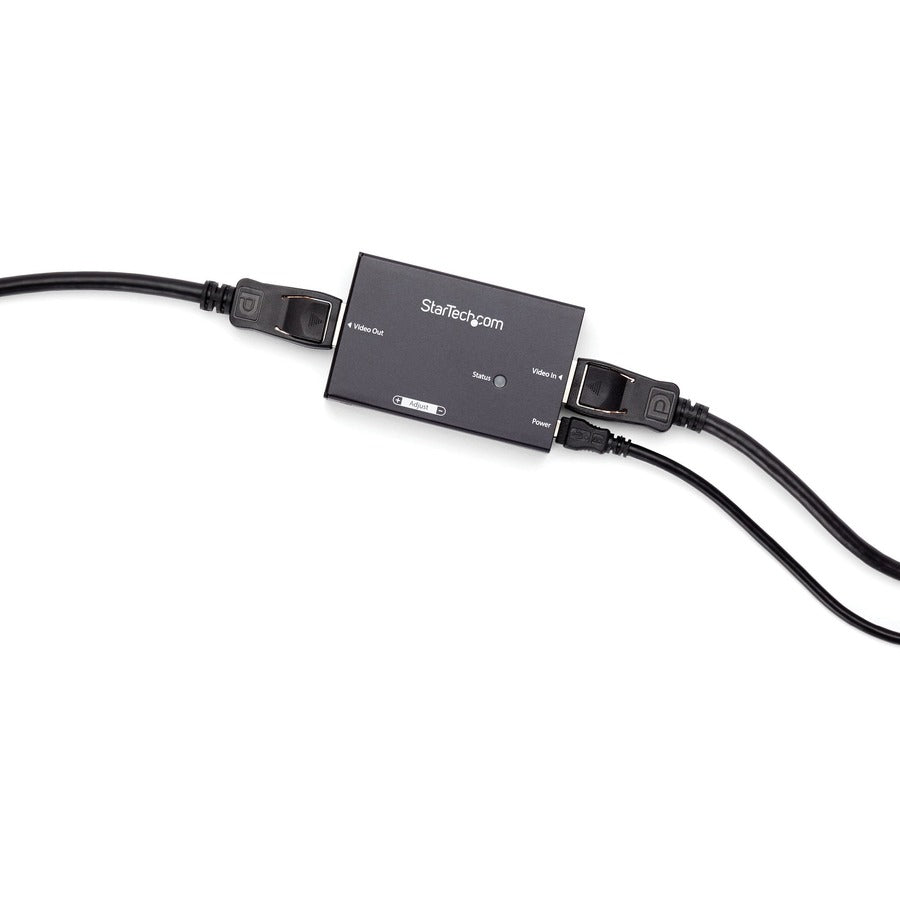

This DisplayPort signal booster lets you increase the signal strength of your DPvideo source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m)away at 1080p 60Hz resolution. For inline installations, you can place the booster betweentwo DisplayPortcables,up to 50 ft. in length at the video input, and up to 15ft. in lengthat the video output.

When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Usingthe DPsignal booster ensures that you can depend on UHDresolutions up to 4Kat 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).

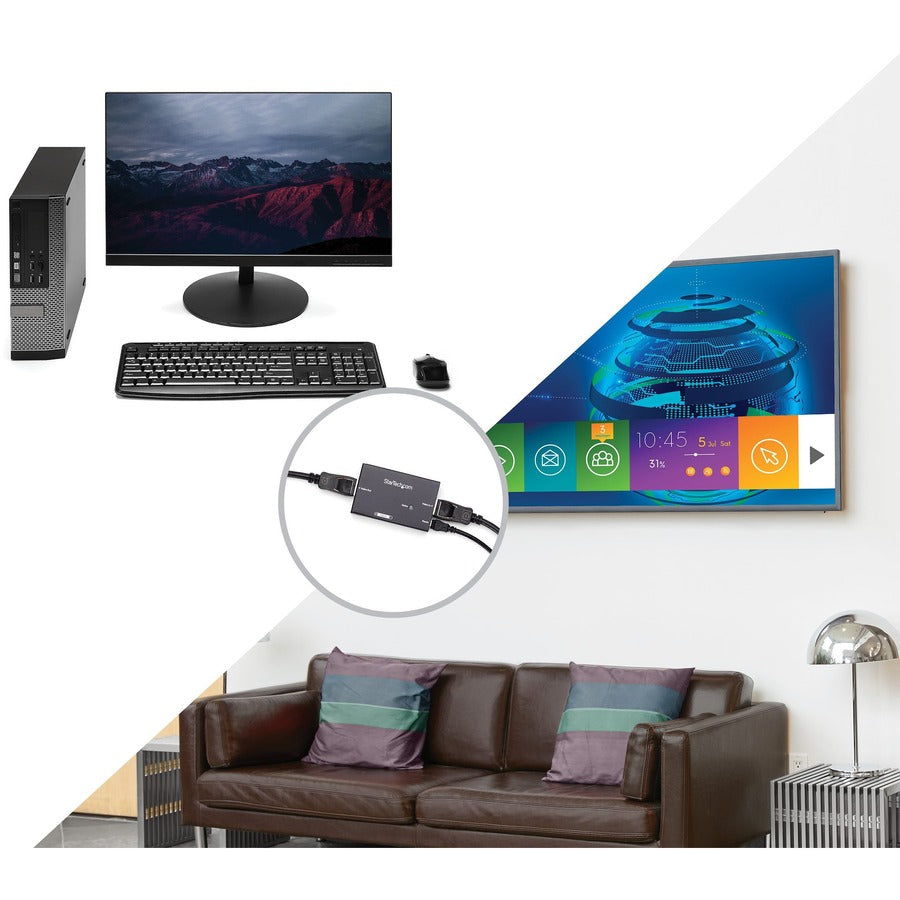

With its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. It includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.

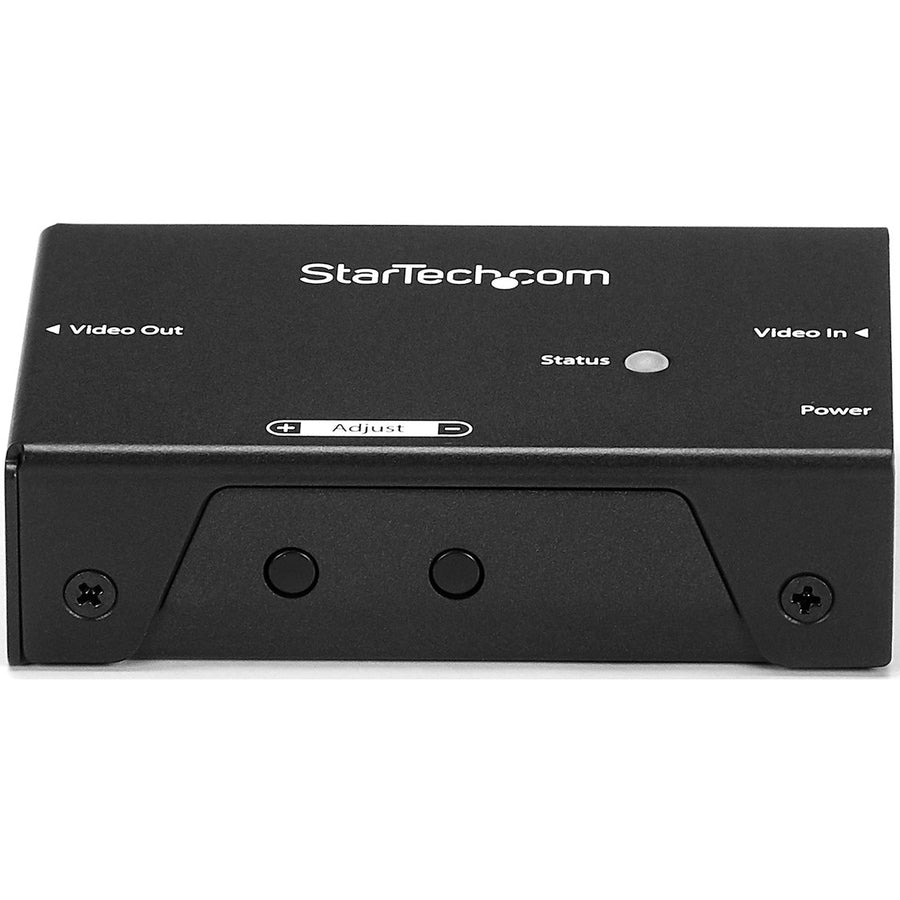

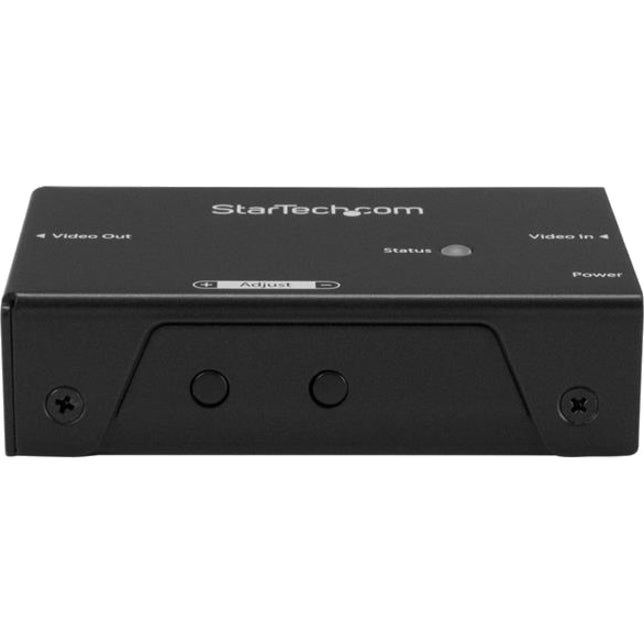

Thebooster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, withequalization adjustment buttons. This means that you can adjust theamplification of your DisplayPort signal,to ensure your DisplayPortsignal will be flawlesseven at distances up to 65ft. (20m). Support for varying distances makes the booster perfectfor multi-devicedeployment acrosslarge institutions, such asboardrooms in corporateoffices,classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in differentrooms.

Key features

• Supports 7.1 surround sound audio
• Mounting hardware included
• Backward compatible with 1080p resolutions at up to 65 ft. away from your video source
• Astonishing picture quality with support for 4K (30Hz) at up to 42 ft. away from your video source
• Works at varying distances up to 65 ft. with a built-in equalization switch
• Discreet installation with a small form factor
• Maintains Ultra HD 4Kvideo signals
• Easy and discreet installation
• Compatible with varying distances
• The DPBOOST is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support

Specifications

• Environmental Certification: RoHS,WEEE,REACH
• Maximum Video Resolution: 3840 � 2160
• TAA Compliant: Yes
• Environmentally Friendly: Yes
• USB: Yes
• Number of DisplayPort Outputs: 1
• Maximum Operating Distance: 65.62 ft (20000 mm)
• Input Voltage: 120 V AC,230 V AC
• Number of DisplayPort Inputs: 1
• Limited Warranty: 2 Year
• Packaged Quantity: 1
• Package Contents: DisplayPort Signal Booster - DP Extender - 4K 60Hz 1 x Power Adapter 1 x Usb Power Cable 4 x Rubber Feet
• Product Type: Signal Amplifier
• DisplayPort: Yes
• Length: 3.10" (78.74 mm)
• Manufacturer: StarTech.com
• Country of Origin: Taiwan
