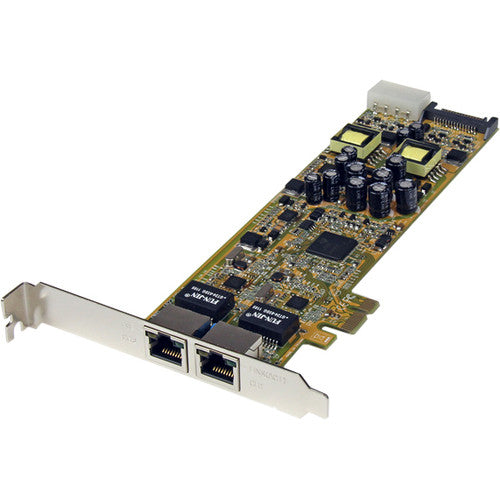

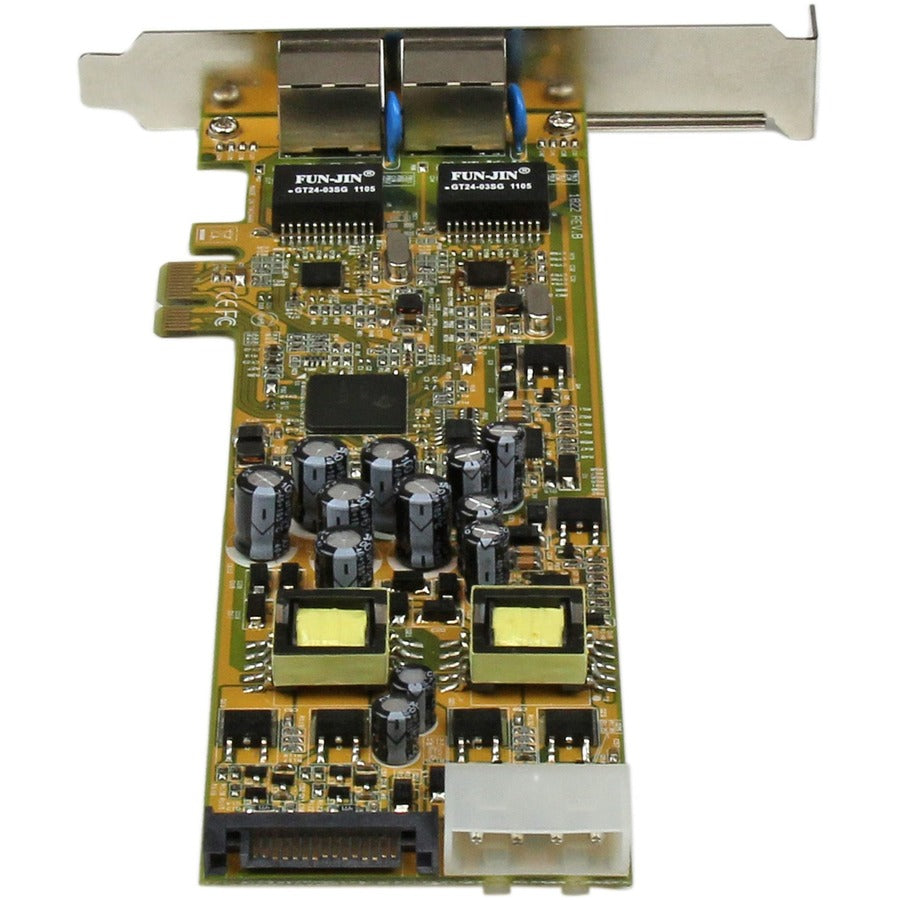

StarTech.com Adaptateur de carte réseau PCI Express Gigabit Ethernet double port PCIe - PoE/PSE ST2000PEXPSE

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.

This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.

Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).

The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• Includes full and low profile/half-height installation brackets
• Crossover Detection & Auto-Correction (Auto MDIX)
• Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
• On-chip 48 KB Big Transmit/Receive Buffer Support
• Jumbo Frame support
• Built-in SATA and LP4 Molex power connector
• Unique surge protection design helps prevent system damage in the event of lightning strikes
• Power Sourcing Equipment (PSE) design, provides data and up to 25.5W of power on each port
• Supports IEEE 802.3at (Type 1, 2) Power over Ethernet standard

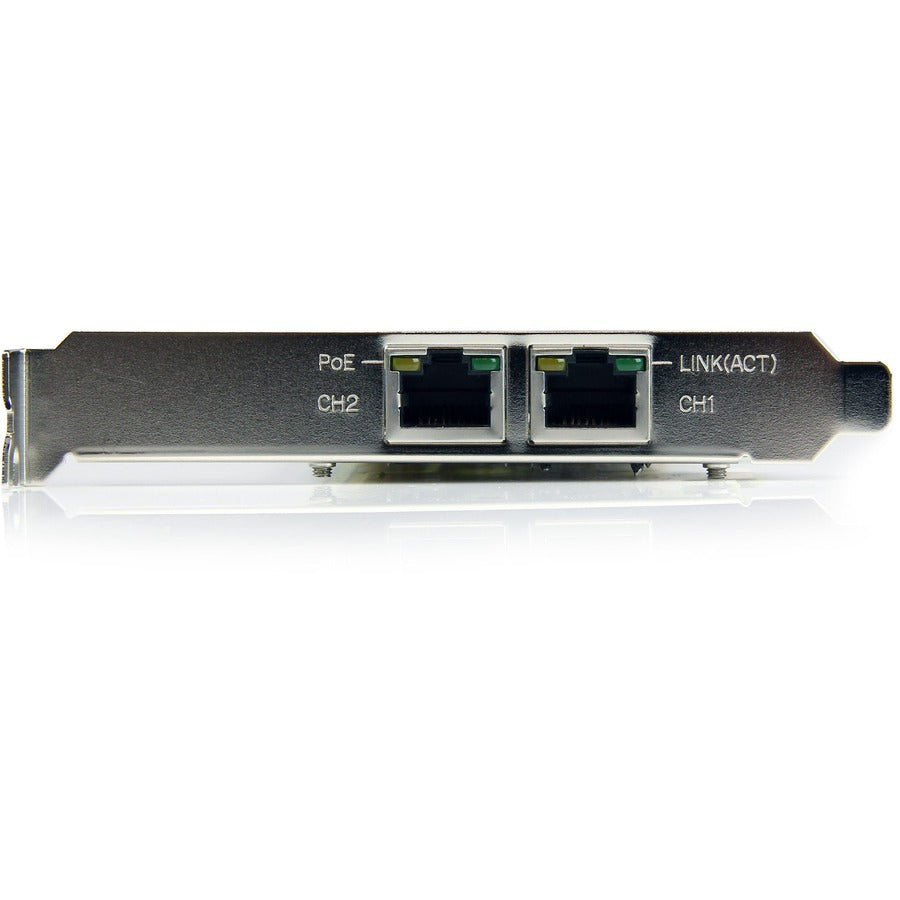

• Dual 10/100/1000 Mbps PoE RJ45 ports

. .

• Chipset Manufacturer : Realtek
• Environmental Certification : RoHS
• Environmentally Friendly : Yes
• Chipset Model : RTL8111E
• Device Supported : PC
• Packaged Quantity : 1
• Thickness : 0.70" (17.78 mm)
• Form Factor : Plug-in Card
• Manufacturer Website Address : http://www.startech.com
• Package Contents :
  • Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
  • 1 x Low-Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
• Total Number of Ports : 2
• Product Type : Gigabit Ethernet Card
• Host Interface : PCI Express
• Manufacturer : StarTech.com
• Media Type Supported : Twisted Pair
• Number of Network (RJ-45) Ports : 2
• Country of Origin : Taiwan
• Network Technology : 10/100/1000Base-T
