Description

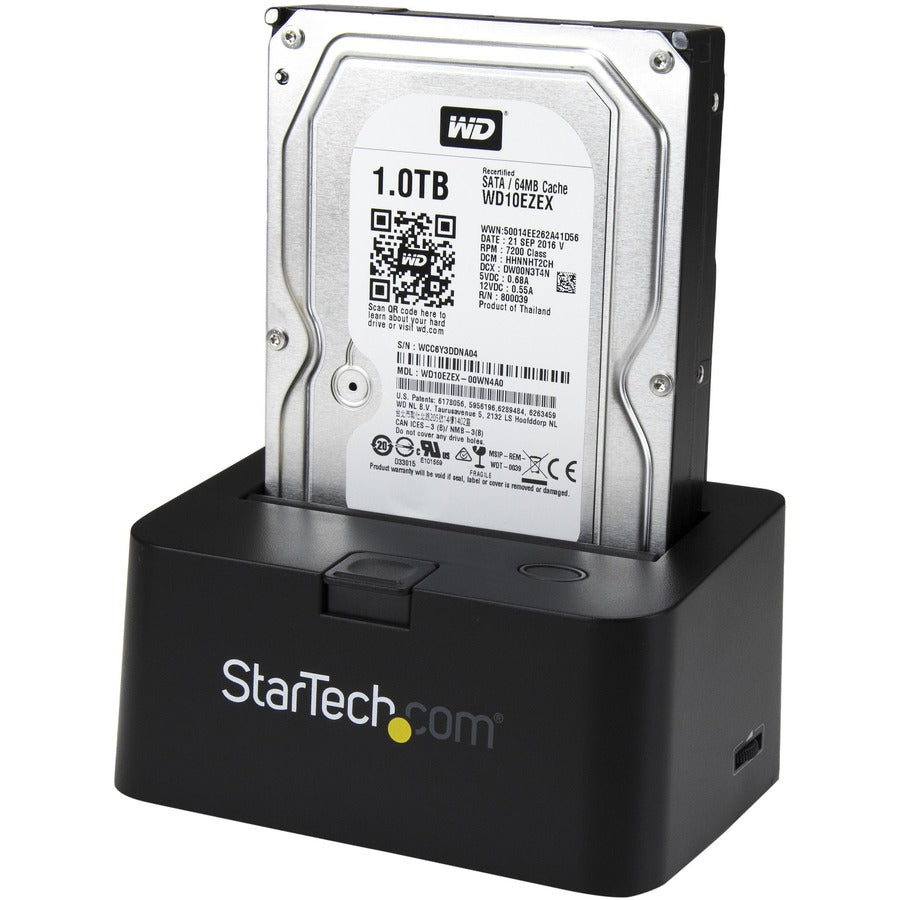

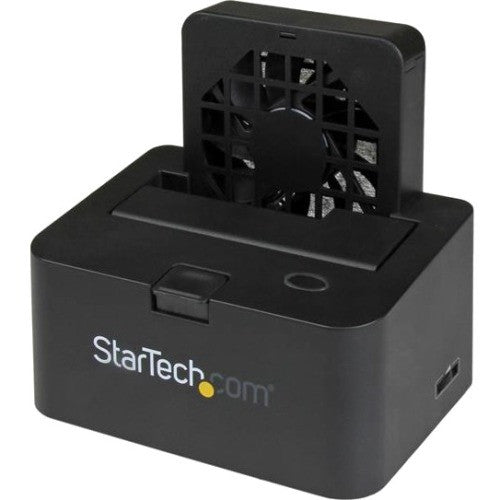

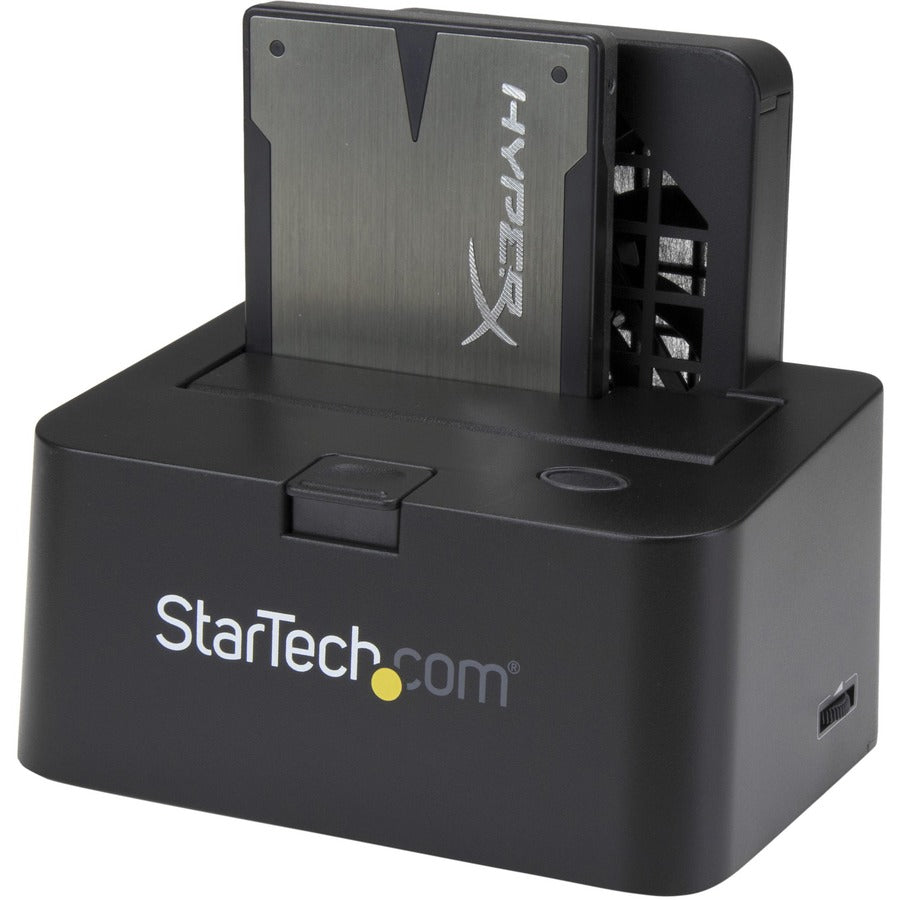

ThisUSB 3.0 and eSATA docking station makes it easy for you to connect and swap your 2.5in or 3.5inSATAhard drives (HDD) and solid-state drives (SSD).The docking station also has a built-in fan that keeps your drives running at an optimal temperature for peak performance and longer drive lifespan.
Maximizecompatibility
With support for either USB 3.0 or eSATA host connections, this versatile drive dock gives you the freedom to connect to your computer through either port. Because USB is available on virtually any computer, you can rest assured that this docking station will work with your desktop or laptop. Plus, the added benefit of eSATA ensures you can achieve SATA 6 Gpbsperformance on computers with an available eSATA port.
To ensure all your drives are supported, the docking station features a sleek slot-loading design that supports both 2.5in and 3.5in drives. The docking station has also been rigorouslytested forsupport with large capacitydrives (tested up to 6TB).
You can extend the compatibilityof thisdock even further by adding IDE support using ourSATA to IDE Hard Drive Adapter(SAT2IDEADP), which allows for easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.
Protect the healthof your drives

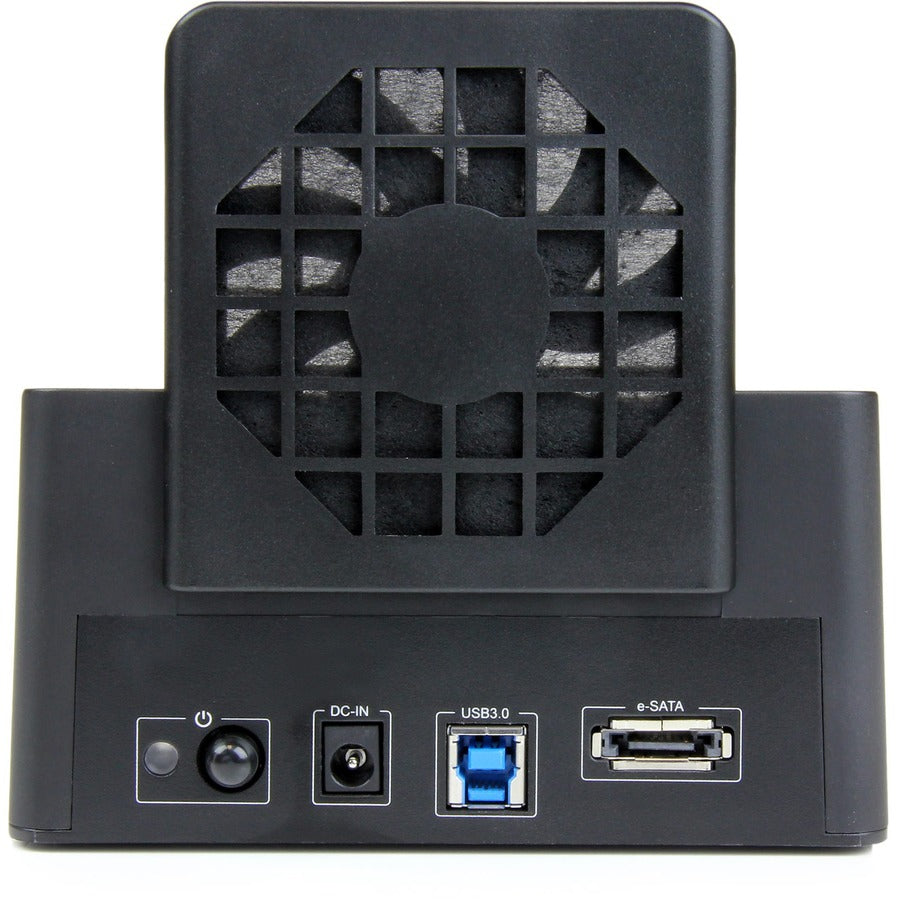

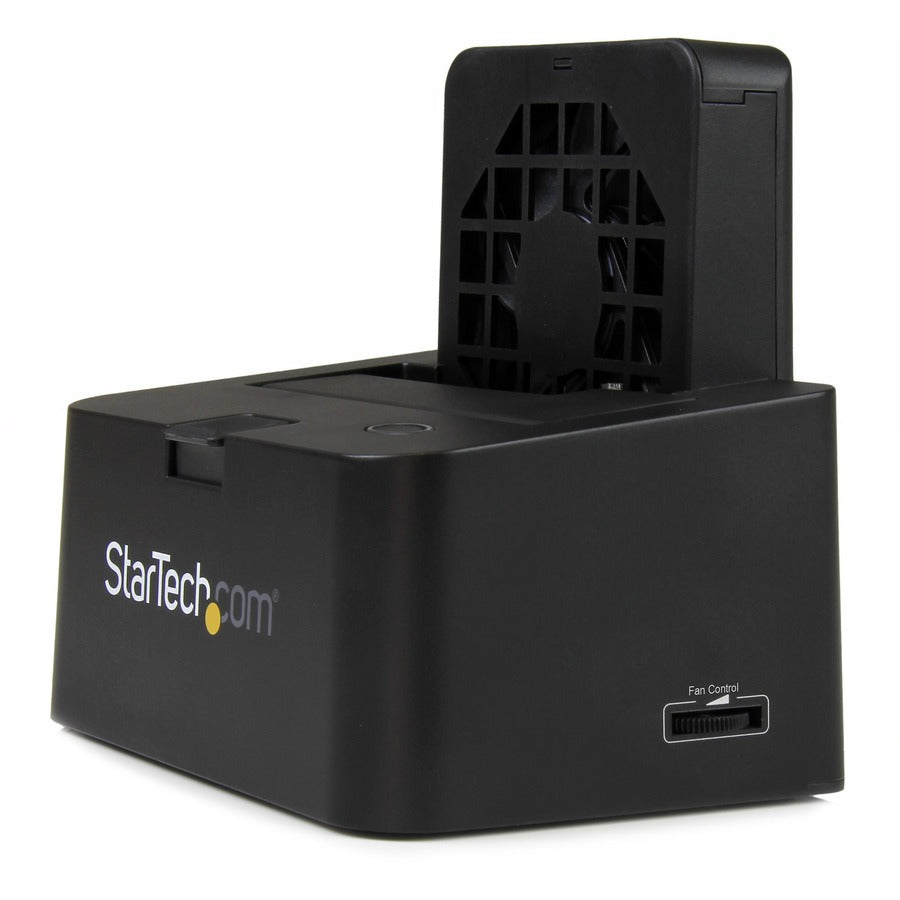

For optimal performance, the docking station hasa built-in80mm fan that helps keep your drives running cooler. The fan offers variable speed control which enables you to make adjustments on the fly, in order to reduce power consumption and noise when your drives aren't being accessed.The HDD dock will also power down your SATA drives after a period of inactivity (USB mode only) or when the computer is turned off, to help reduce power consumption and noise when not being accessed.
ImprovePerformance
To save youtime, thisdocking station is loaded with high-performance features on both interface connections.
For thefastest possibleperformance, thisdock supportsfull SATA III bandwidth of 6 Gbps when connected through eSATA, ensuring you can get the most out of your solid-state drives.
With USB 3.0 the dock ensures high-bandwidth transfer speeds up to 5 Gbps. The USB host interface connectionalso supportsUASP, which delivers performance up to 70% faster than conventional USB 3.0 when paired with a compatiblehost controller.UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
The SDOCKU33EFisbacked by a 2-year StarTech.com warranty and free lifetime technical support.
- Plug-and-play and hot-swap compatible
- Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives
- Compatible with USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
- Supports 2.5in and 3.5in form factor SATA hard drives (HDD) and solid state drives (SSD)
- Keep your drives running cool using the built-in fan with variable speed control
- Maximum compatibility with eSATA or USB 3.0 interface options
- Optimal performance with SATA 6 Gbps and USB 3.0 with UASP
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- eSATA / USB 3.0 SATA HDD Dock
- 1m USB 3.0 Cable
- 1m eSATA Cable
- Universal Power Adapter (NA/UK/EU/AUS)
- Instruction Manual
- Product Type : Drive Dock
- Host Interface : USB 3.2 (Gen 1) Type B,eSATA
- Manufacturer : StarTech.com
- Compatibility : 2.5in & 3.5in SATA Drives
- Country of Origin : China
- Wireless LAN : No
- Number of Hard Drives Installed : 0
- Total Hard Drive Capacity Supported : 6 TB
- Cooling Fan : Yes
- Number of USB Ports : 1
- Total Solid State Drive Capacity Supported : 6 TB
- Number of Solid State Drive Installed : 0
- Number of Total Expansion Bays : 1
- Drive Interface : SATA/600
- Number of Hard Drives Supported : 1
- Product Color : Black
- Number of 2.5"/3.5" Bays : 1
- Number of Solid State Drive Supported : 1
- Product Material : Plastic
