Description

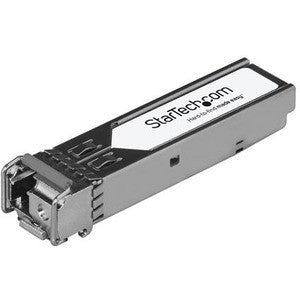

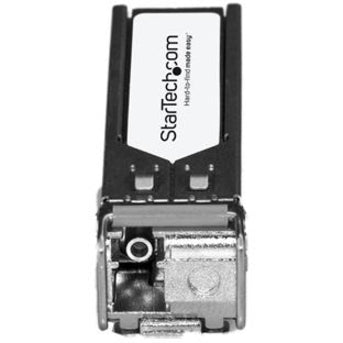

The 10056H-ST is an Extreme Networks 10056H compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057H-ST. They are designed, programmed and tested to work with 1000Base-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1490nmTx/1310nmRx
- Maximum Data Transfer Rate: 1Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- Power Consumption: < 1.3W
- DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% EXTREME NETWORKS 10056H COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver dependable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-D
- 1Gbps
- 10G Bi-Directional Downstream
- Single Mode (SMF)
- Environmental Certification : RoHS,REACH,WEEE
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Form Factor : Hot-swappable
- Manufacturer Website Address : http://www.startech.com
- Total Number of Ports : 1
- Product Type : SFP (mini-GBIC)
- Connector Type : LC
- Manufacturer : StarTech.com
- Application/Usage : Optical Network,Data Networking
- Compatibility : MSA Compliant
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Single-mode
- Country of Origin : China
- Network Technology : 1000Base-BX-D
- Interfaces/Ports Details : 1 x LC 1000Base-BX-D Network
