Description

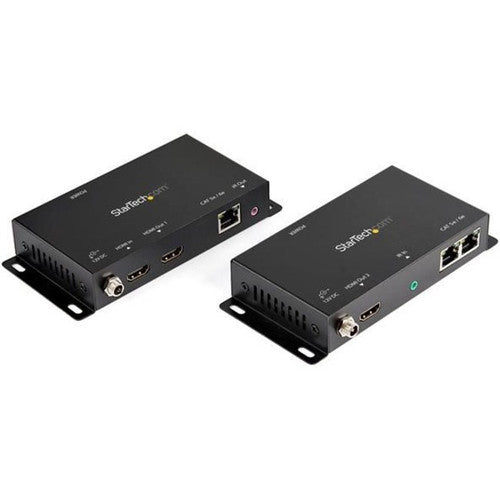

The HDMI® Over IP Extender kit lets you extend an HDMI signal over your network or network cabling.
Point-to-Point Configuration
For smaller-scale applications, the HDMI® video extender over Cat6 kit can be used as a point-to-point video extender up to 492 feet (150 meters). The 1080p HDMI® extender units can even cascade the same signal to multiple receivers.
Flexible Installation
The HDMI® Balun kit includes optional mounting hardware for a tidy installation. Ideal for corporate applications, the extender supports 1080p video resolutions and stereo audio. The HDMI® extender over LAN uses standard Cat5e or Cat6 Ethernet cables with RJ45 connectors, it eliminates both the expense and hassle of running specialized cables. The local unit also features an HDMI output to avoid the need for an additional HDMI splitter.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales
The ST12MHDLNV is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- HDMI OVER IP EXTENDER: Extend 1080p 60Hz HDMI video & 2ch stereo audio up to 492ft (150m) over ethernet; YUV advanced video coding (supports 4:4:4 sampling & HDCP 1.4) to minimize network bandwidth
- EASY TO INSTALL: Simply connect through a 100Mbps or Gigabit Ethernet switch (managed/un-managed) using network cable (RJ45 connectors); no IP configuration needed; Max distance depends on LAN setup
- 1-1 DIRECT CONNECTION: Directly connect the transmitter to the receiver (without an ethernet switch) up to 150m over CAT5e/CAT6 cable; incl. IR remote control extension kit (IR remote not incl.)

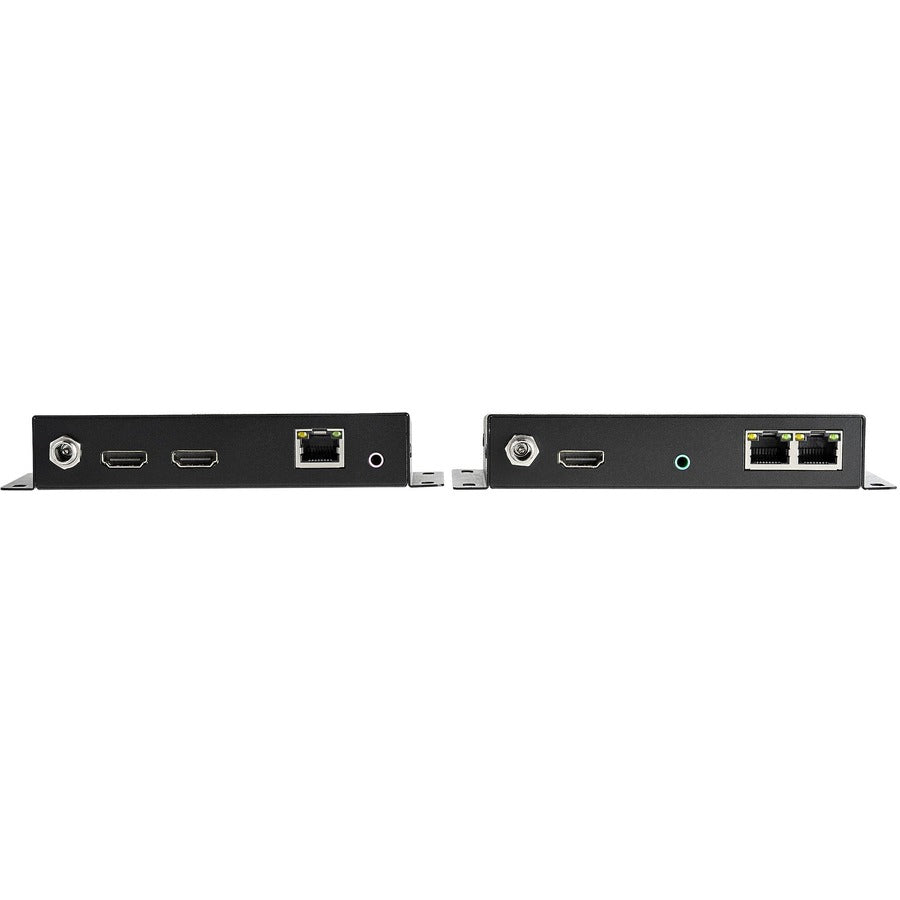

- LOCAL & REMOTE VIDEO: The local transmitter unit features an HDMI output to split the input signal, letting you preview the video & ensuring playback of media; no need for an additional HDMI splitter
- DRIVERLESS SETUP: No drivers or IP configuration required for the HDMI Transmitter/receiver units on this HDMI over IP converter; Equipped w/ integrated mounting hardware for a tidy install
- Number of HDMI Outputs : 2
- Maximum Operating Distance : 500 ft (152400 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 0.47" (12 mm)
- Number of Output Devices Supported : 1
- Transmitter Weight (Approximate) : 474 g
- Form Factor : Desktop
- Receiver Width : 2.76" (70 mm)
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 x HDMI over IP Transmitter
- 1 x HDMI over IP Receiver
- 2 x Power Adapters (NA, UK, EU and AU)
- 1 x IR Blaster
- 1 x IR Receiver
- 4 x Mounting Screws
- 8 x Rubber Feet
- 1 x Manual
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6
- Manufacturer : StarTech.com
- Receiver Weight (Approximate) : 474 g
- Transmitter Height : 1.02" (26 mm)
- Environmental Certification : WEEE,REACH,RoHS
- Maximum Video Resolution : 1920 x 1080
- Environmentally Friendly : Yes
- Receiver Height : 1.02" (26 mm)
- HDMI In : Yes
- Receiver Depth : 0.47" (12 mm)
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : Full HD
- Transmitter Width : 2.76" (70 mm)
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 3
- Country of Origin : Taiwan
- Connectivity Technology : Wired
- Product Color : Black
