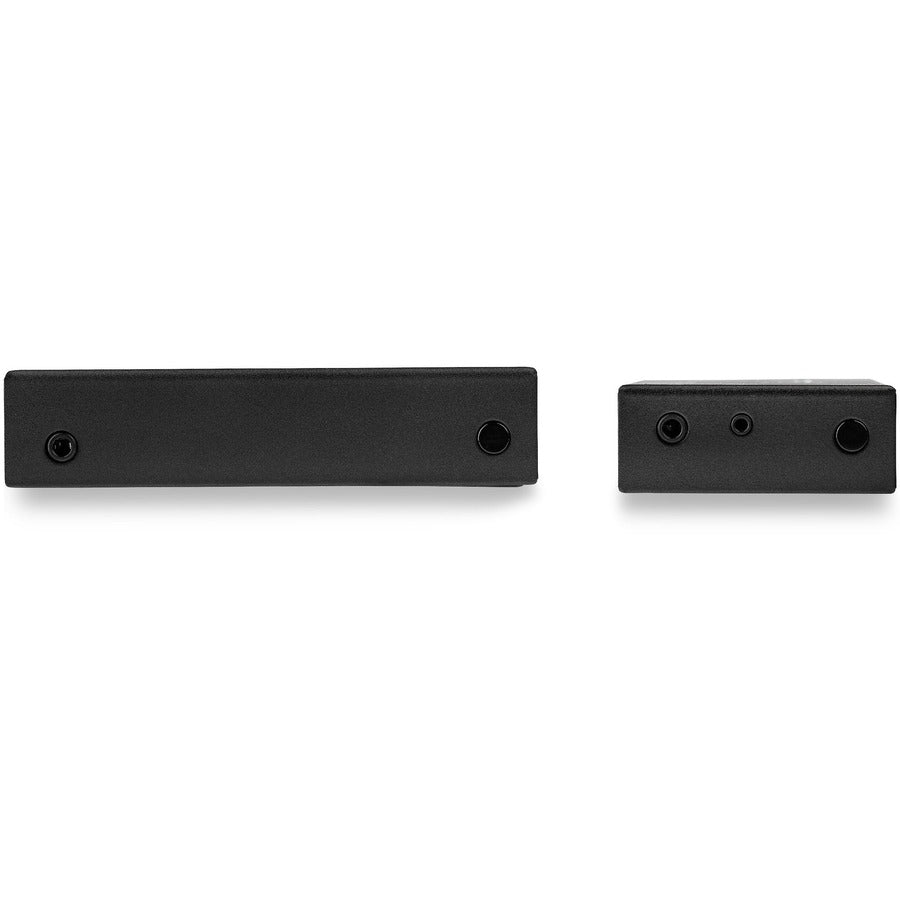

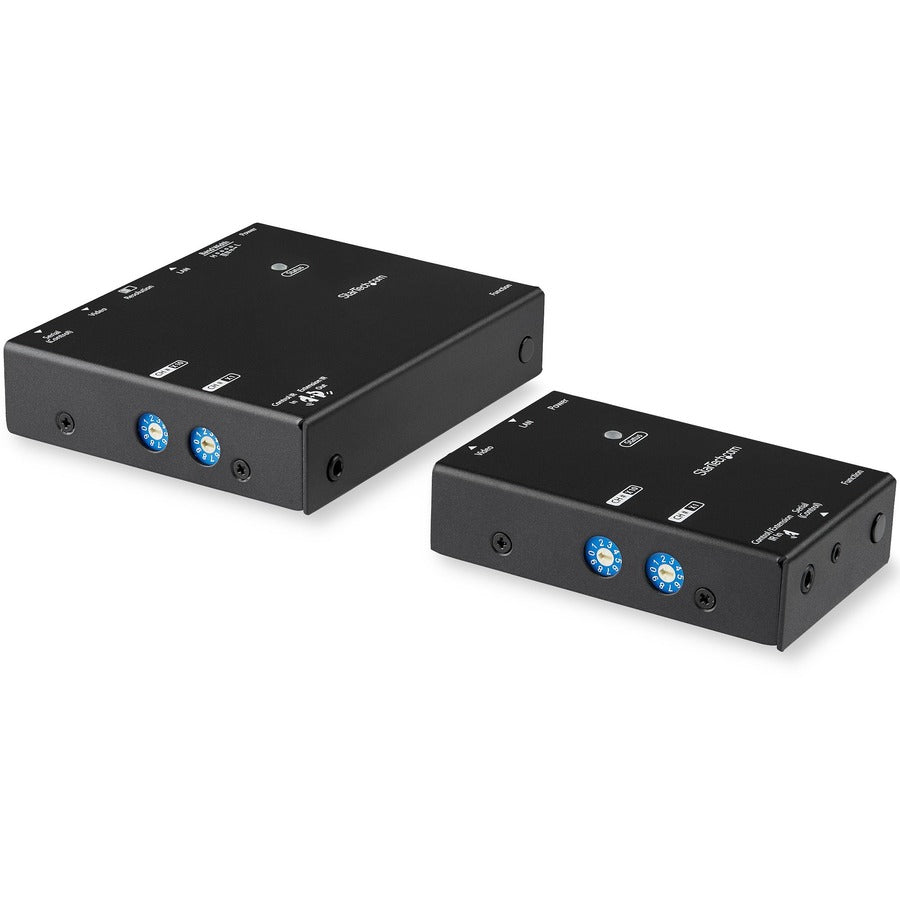

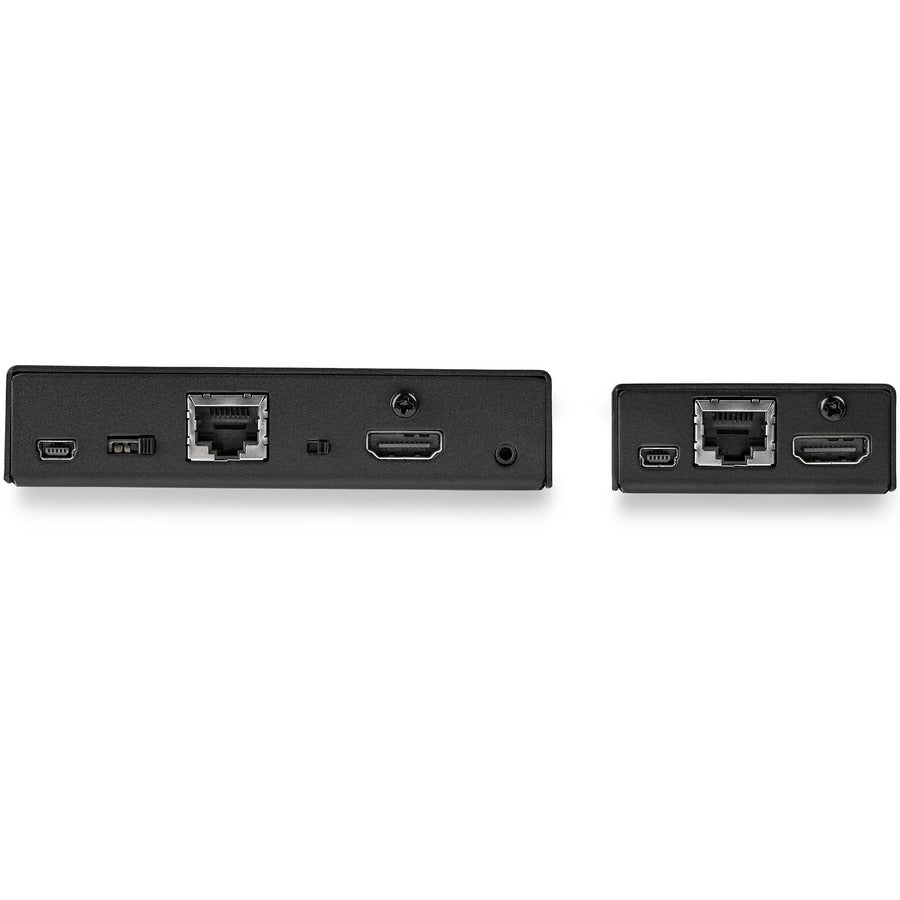

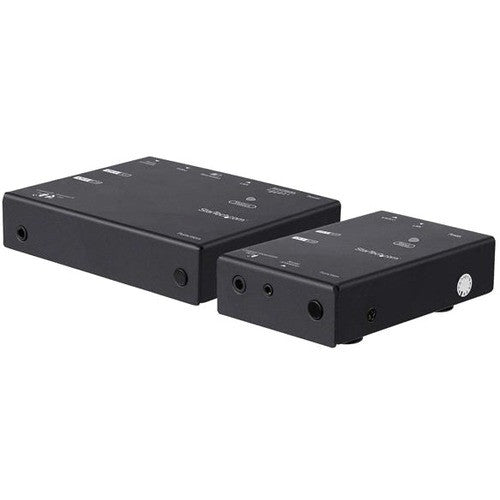

StarTech.com HDMI over IP Extender with Video Compression - HDMI over CAT6 Extender - 1080p ST12MHDLNHK

ExtendandcontrolHDMI videooveryour existingLANtocreateastate-of-the-artnetworkofvideodisplaysin a variety ofenvironmentswhere digital signage is required.

Ideal for Universities, Offices, and Restaurants

Reliably Extend Compressed HDMI VideowithBandwidth Efficiency

This extender uses advanced compression to distribute high-qualityHDMI videoover yournetwork, with minimal bandwidth requirements.

With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbpsof local area network bandwidth, when in operation for each kit.

Flexible & ScalableDeployment Options

TheHDMI over LANextenderoffers many configurations to accommodate your set up.

This HDMI video extender provides four ways to control your video network configurations.

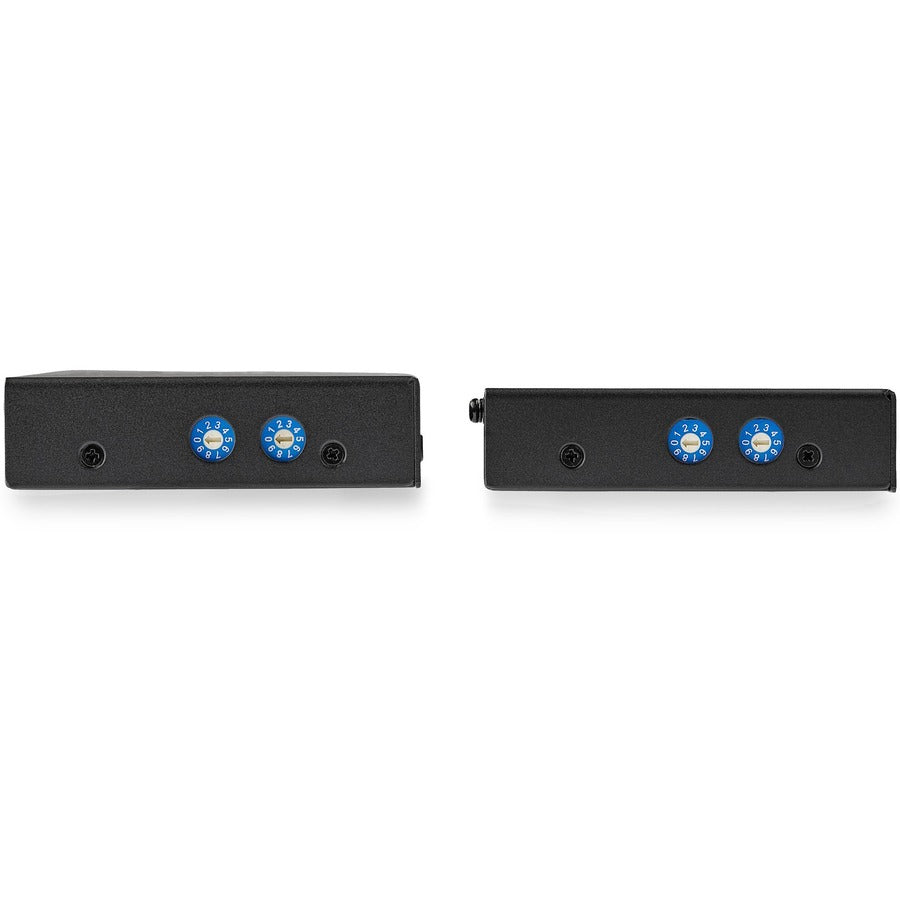

• Rotary DIP switches located on the Tx and Rx
• Your computer connected to the transmitter or receiver via a serial cable
• Over IP using any device equipped with a browser on the same local area network(i.e. tablet, laptop, smartphone)
• Infrared (IR)remote control using the includedreceiver

ComprehensiveProduct Testing&ExpertTechnical Support

StarTech.comconducts thoroughcompatibility and performancetestingonallour productstoensure we are meeting orexceeding industry standardsand providinghigh-quality products to our customers. OurlocalStarTech.comTechnicalAdvisorshave broad product expertiseandwork directly with StarTech.comEngineers toprovide support for our customersboth pre and post-sales.

More from the Manufacturer

• Efficiently distribute video throughout your site using your local area network
• Easily create your ideal digital signage with a versatile and scalable video distribution system
• Deliver brilliant HD quality video with 1080p support

. .

• Number of HDMI Outputs : 1
• Maximum Operating Distance : 164.04 ft (50000 mm)
• Number of Input Devices Supported : 1
• Transmitter Depth : 12.20" (309.88 mm)
• Number of Output Devices Supported : 1
• Transmitter Weight (Approximate) : 3.20 kg
• Form Factor : Rack-mountable,Desktop
• Receiver Width : 7" (177.80 mm)
• Manufacturer Website Address : http://www.startech.com

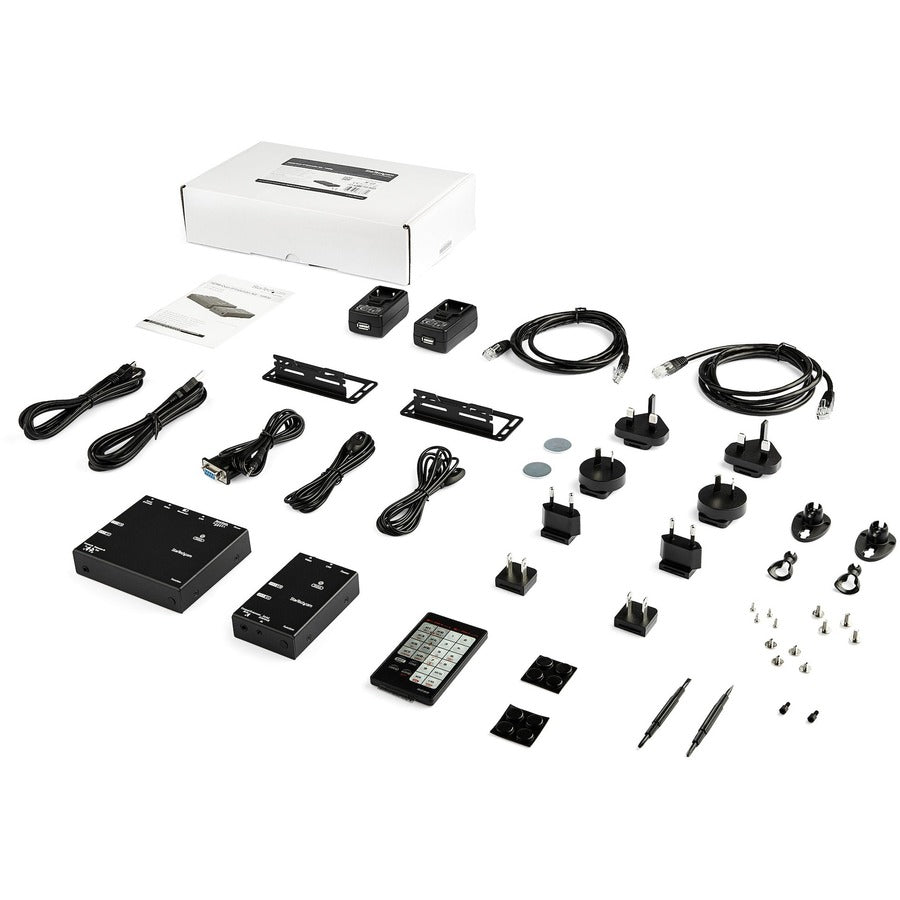

• Package Contents :
  • 1 x HDMI Over IP Transmitter
  • 1 x HDMI Over IP Receiver
  • 2 x Universal Power Adapters (NA, EU, UK, ANZ)
  • 2 x Mounting Brackets
  • 2 x CAT5 Cables
  • 1 x Plastic Screwdriver
  • 1 x IR Remote Control
  • 2 x USB-A to Mini USB-B Cable
  • 1 x DB9 to 2.5 mm Serial Adapter Cable
  • 1 x IR Blaster
  • 1 x IR Receiver
  • 8 x Rubber Feet
  • 1 x Instruction Manual
• HDMI Out : Yes
• Twisted Pair Cable Standard : Category 6
• Manufacturer : StarTech.com
• Receiver Weight (Approximate) : 3.20 kg
• Transmitter Height : 1.10" (27.94 mm)
• Environmental Certification : RoHS,WEEE,REACH
• Maximum Video Resolution : 1920 x 1080
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Receiver Height : 1.10" (27.94 mm)
• HDMI In : Yes
• Receiver Depth : 12.20" (309.88 mm)
• Limited Warranty : 2 Year
• Network (RJ-45) : Yes
• Number of HDMI Inputs : 1
• Product Type : Video Extender Transmitter/Receiver
• Graphics Modes : Full HD
• Transmitter Width : 7" (177.80 mm)
• Media Type Supported : Twisted Pair
• Number of Network (RJ-45) Ports : 2
• Country of Origin : Taiwan
• Connectivity Technology : Wired
• Product Color : Black
