Description
The ST121HDFXA is a long-range HDMI video extender kit that uses SC fiber optic cable to extend video/audio from an HDMI-equipped device to a remote display up to 2600 feet (800 Meters) away. The extender supports full High-Definition video (1920x1200 / 1080p) and includes both the transmitter and receiver, for a complete ready-to-use digital signage solution.
Not only is this an incredibly long range solution that can extend an HDMI signal across or between buildings, but because fiber optics transmit data using light rather than copper, it will not cause or be effected by electromagnetic Interference (EMI).
For convenient, time-saving control of the media source, the HDMI extender also offers Infrared (IR) extension, which enables you to control the HDMI audio-video source from either end of the connection. The kit also includes optional mounting hardware for a clean and professional installation.
The ST121HDFXA HDMI over Fiber Optic Extender kit is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
- Uses SC fiber optic cabling
- Ready for use with Blu-ray™ players

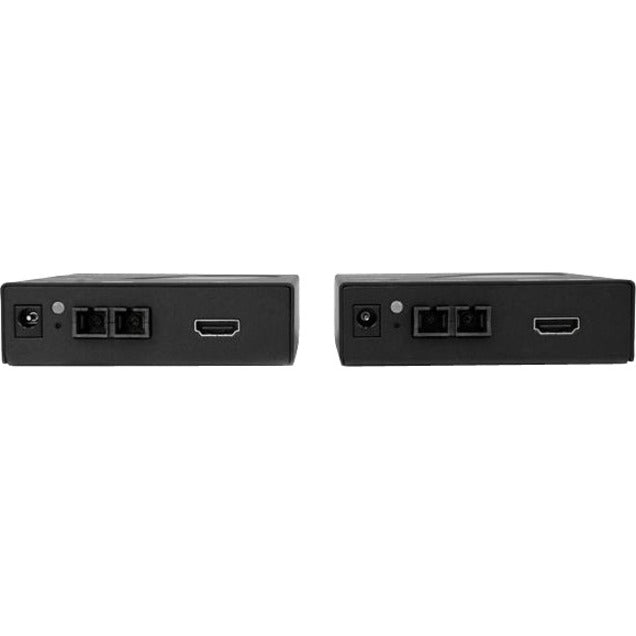

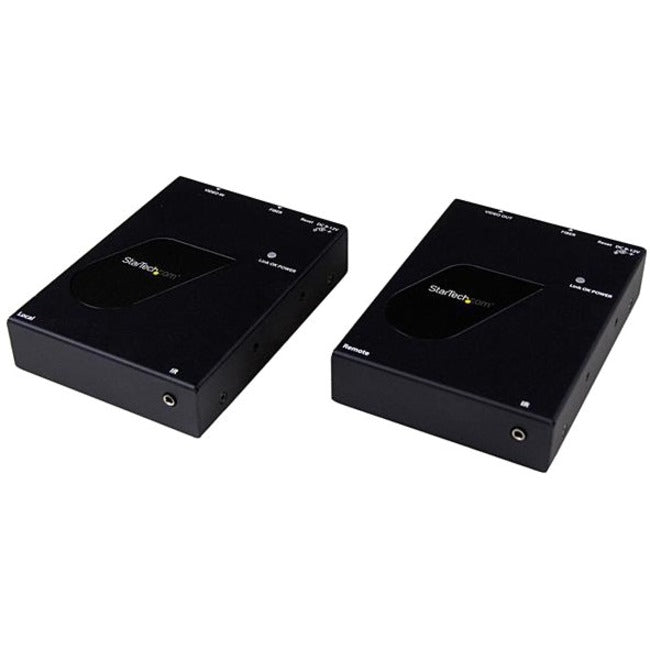

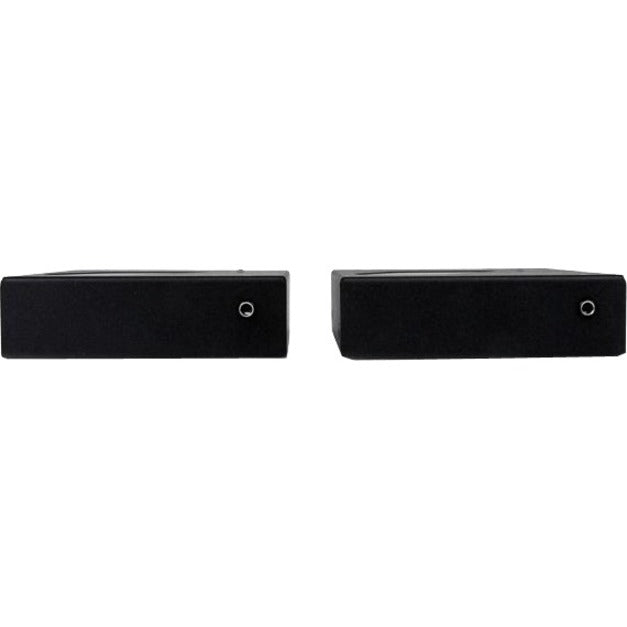

- Local transmitter and remote receiver units included
- Supports bi-directional IR communication
- Resolutions up to 1080p (1920x1200)
- Extend HDMI video up to 2600ft (800m)
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 2600 ft (792480 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 5.10" (129.54 mm)
- Number of Output Devices Supported : 1
- Transmitter Weight (Approximate) : 457 g
- Form Factor : Rack-mountable,Desktop
- Receiver Width : 3.80" (96.52 mm)
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 x Local HDMI Extender Unit

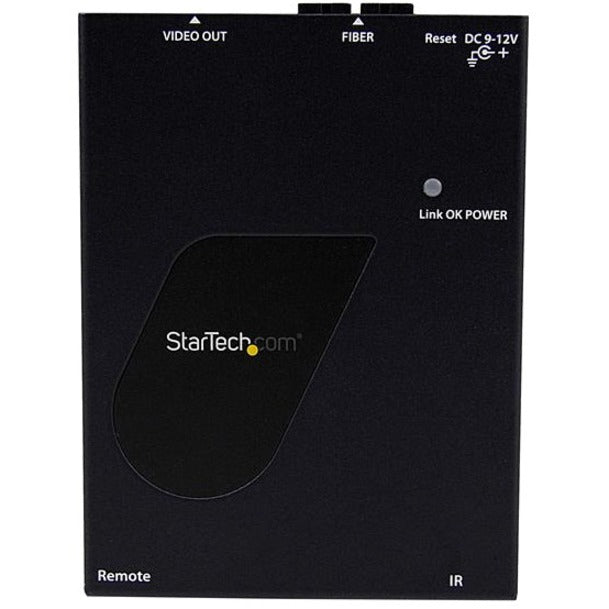

- 1 x Remote HDMI Receiver Unit
- 1 x IR Receiver Cable
- 1 x IR Transmitter Cable
- 2 x Mounting Brackets
- 1 x Multi-mode SC-SC duplex Fiber Optic cable
- 2 x Foot Pad Set
- 2 x Universal Power Adapter NA / UK / EU
- 1 x User Manual
- HDMI Out : Yes
- Manufacturer : StarTech.com
- Receiver Weight (Approximate) : 457 g
- Transmitter Height : 1" (25.40 mm)
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Receiver Height : 1" (25.40 mm)
- HDMI In : Yes
- Number of SC Ports : 2
- Receiver Depth : 5.10" (129.54 mm)
- Limited Warranty : 2 Year
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : WUXGA
- Transmitter Width : 3.80" (96.52 mm)
- Media Type Supported : Optical Fiber
- Connectivity Technology : Wired
- Product Color : Black
