Description

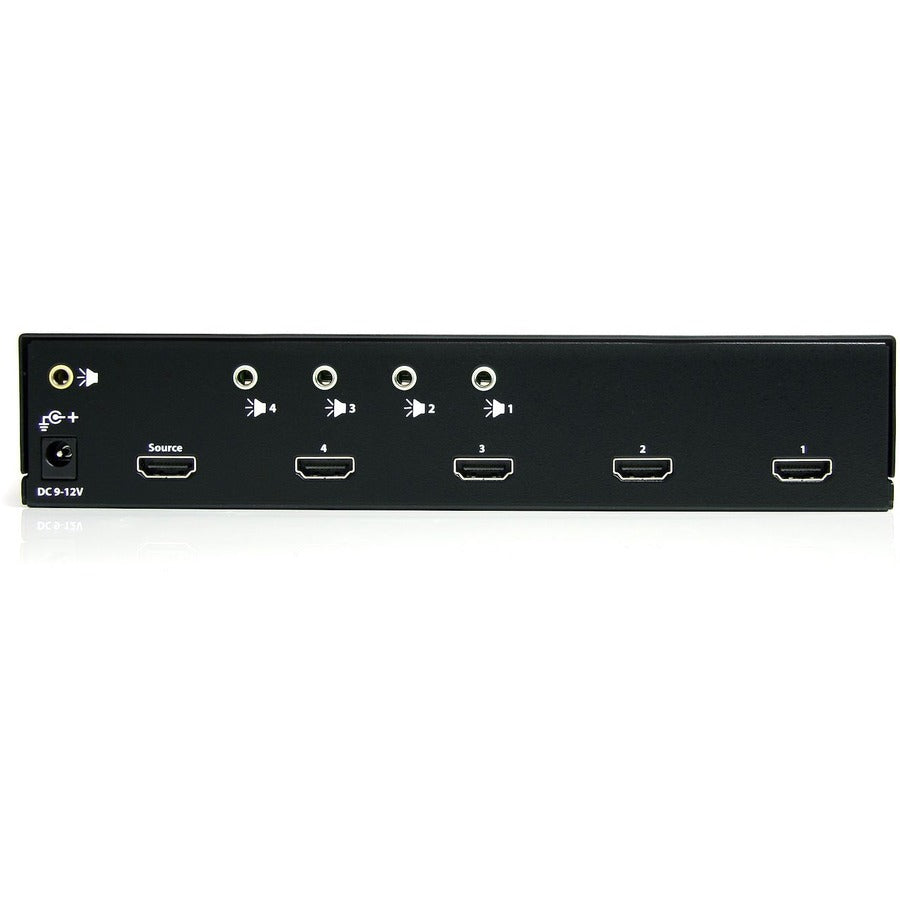

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.
Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
- Quick and easy install
- LED Power/Active indicator for monitoring each port
- Supports HDCP and EDID
- Cascade up to 3 layers
- High Speed HDMI® Compliant
- Passes DVI video signals, DVI to HDMI adapters/cables required - not included
- Mounting brackets included
- Audio signal can be output through HDMI or using separate 3.5mm audio outputs
- Supports a wide range of PC and Supports HDTV resolutions from VGA to WUXGA and 480p to 1080p
- Splits a single HDMI® source to up to 4 HDMI-enabled devices without signal loss
- Environmental Certification : RoHS,WEEE,REACH
- Audio Line Out : Yes
- Input Voltage : 120 V AC,230 V AC
- Number of Audio Line Out : 5
- Product Material : Steel
- Length : 8.70" (220.98 mm)
- Audio Line In : Yes
- Maximum Operating Distance : 49.87 ft (15200 mm)
- Package Contents :
- 4-Port HDMI Splitter and Signal Amplifier
- 1 x Mounting Hardware and Screw Kit
- 1 x Universal Power Adapter (NA / EU / UK / AU)
- 1 x Instruction Manual
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- HDMI In : Yes
- Number of HDMI Outputs : 4
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Manufacturer Website Address : http://www.startech.com
- HDMI Out : Yes
- Number of HDMI Inputs : 1
- Manufacturer : StarTech.com
- Country of Origin : Taiwan
- Product Type : Signal Splitter
