Description

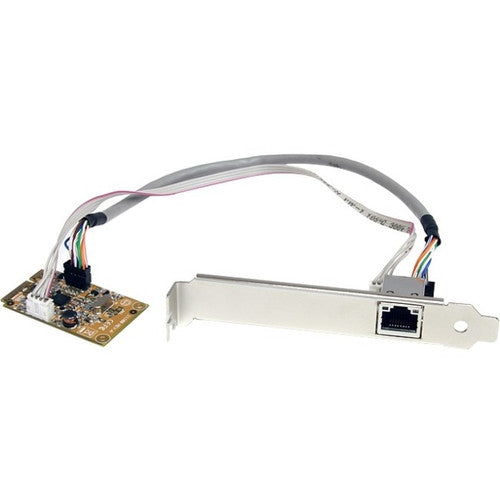

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Compliant with PCI Express Mini Card specification 1.1
- Supports Full and Half duplex operating modes
- IEEE 802.3x Full Duplex Flow Control support
- Microsoft? NDIS5 Checksum Offload (IPv4, TCP, UDP) and Large Send Offload support
- Supports Wake-on-LAN (WOL) and Remote Wake-up Support, Pair Swap/Polarity/Skew Correction
- IEEE 802.1Q VLAN Tagging support
- Crossover Detection & Auto-Correction (Auto MDIX)
- Jumbo Frame support up to 9k
- Fully complaint with IEEE 802.3, 802.3u, and 802.3ab specifications for 10/100/1000 Mbps connections
- One 10/100/1000Mbps compatible RJ-45 Ethernet port
- Chipset Manufacturer : Realtek
- Environmental Certification : RoHS,WEEE
- Environmentally Friendly : Yes

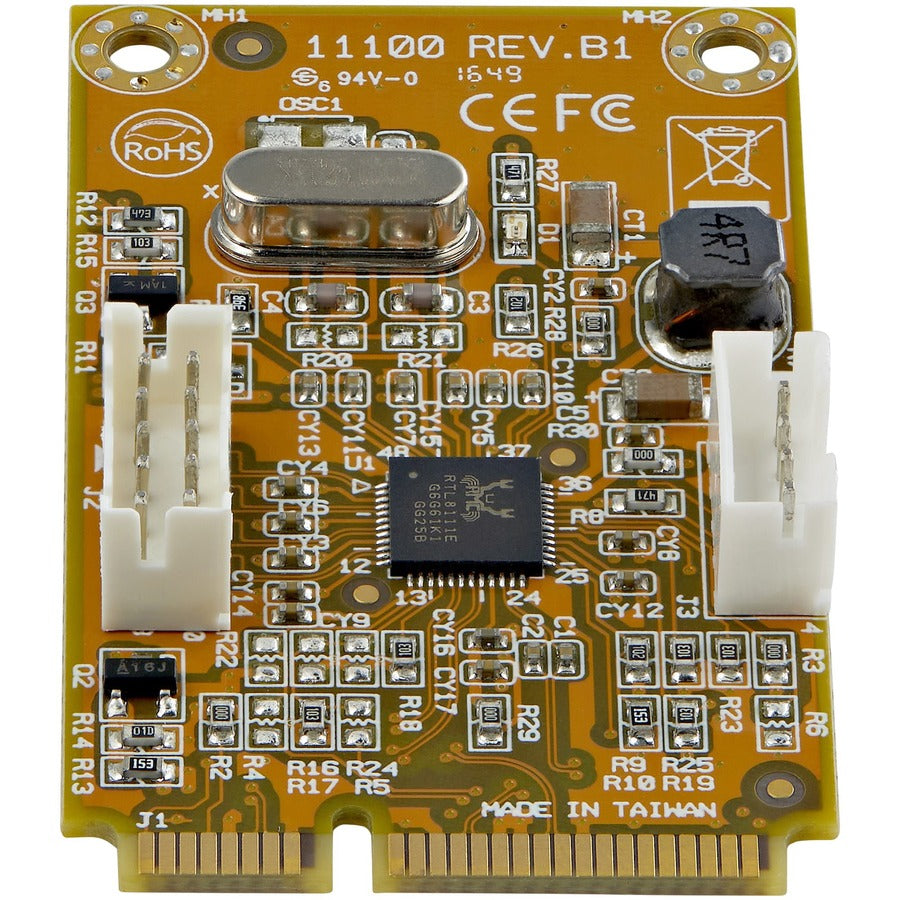

- Chipset Model : RTL8111E
- Packaged Quantity : 1
- Thickness : 0.16" (4.06 mm)
- Form Factor : Plug-in Card
- Manufacturer Website Address : http://www.startech.com

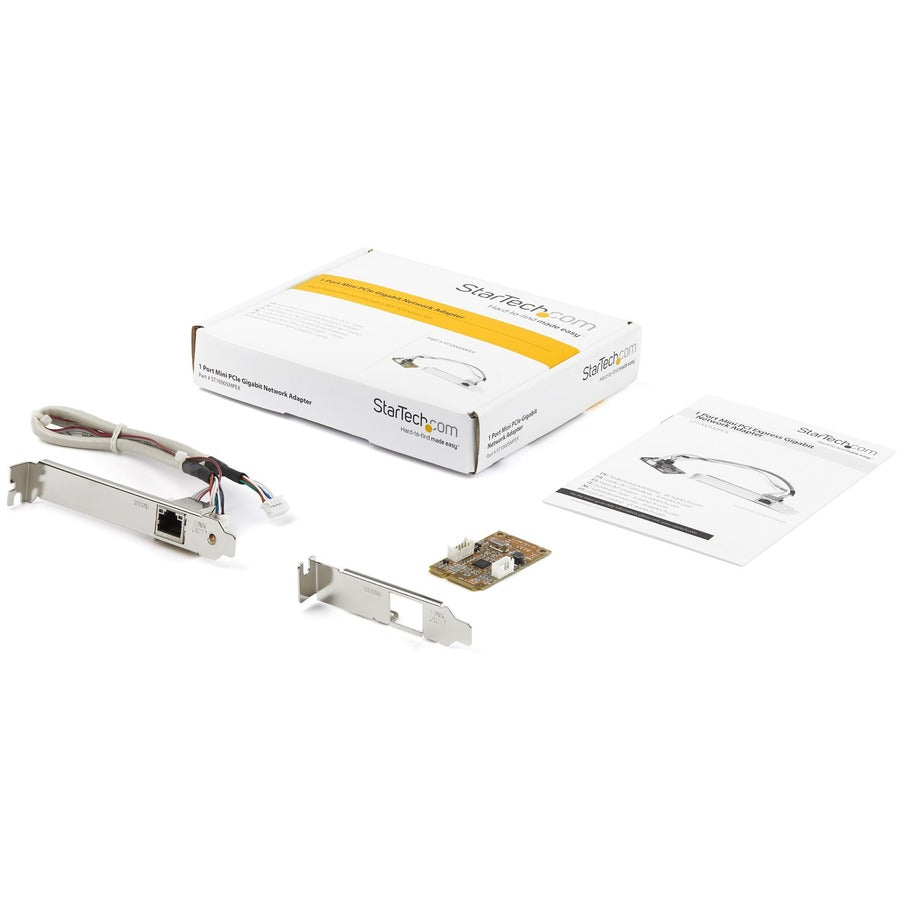

- Package Contents :
- Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

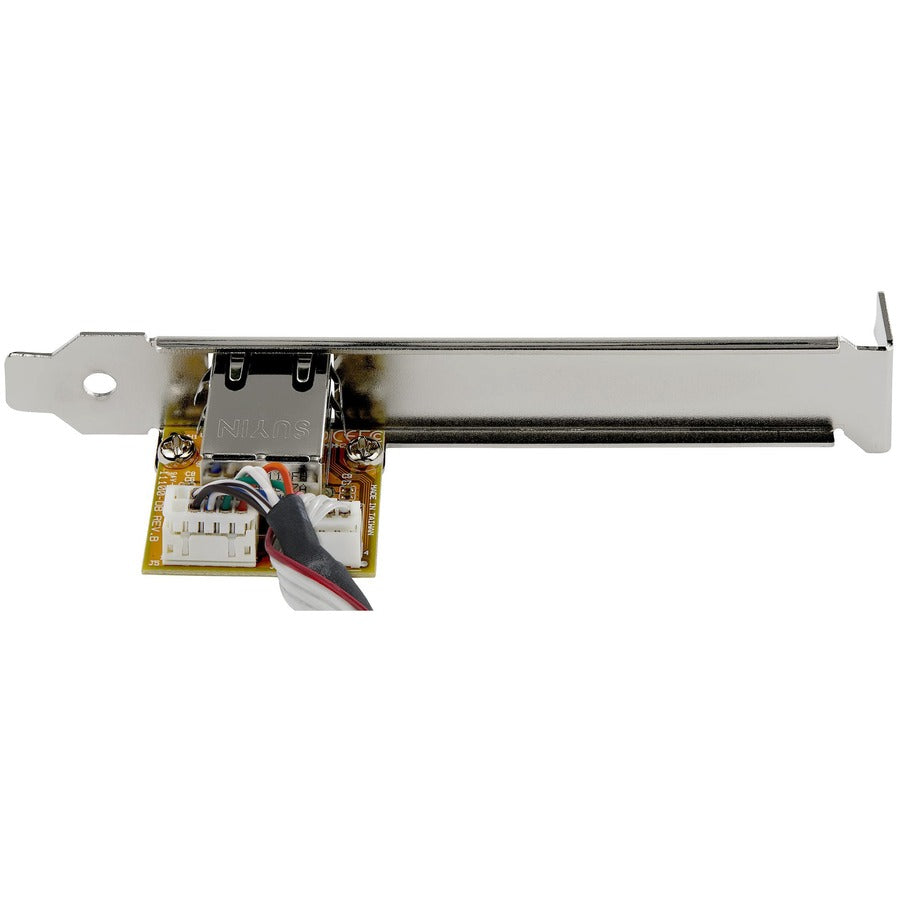

- 1 x RJ45 Daughter Board
- 1 x Low Profile Bracket
- 1 x Driver CD
- Internal LED Cable
- Internal Data Cable
- 1 x Instruction Manual
- Total Number of Ports : 1
- Product Type : Gigabit Ethernet Card
- Host Interface : Mini PCI Express
- Manufacturer : StarTech.com
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 1
- Country of Origin : Taiwan
- Network Technology : 10/100/1000Base-T
