Description

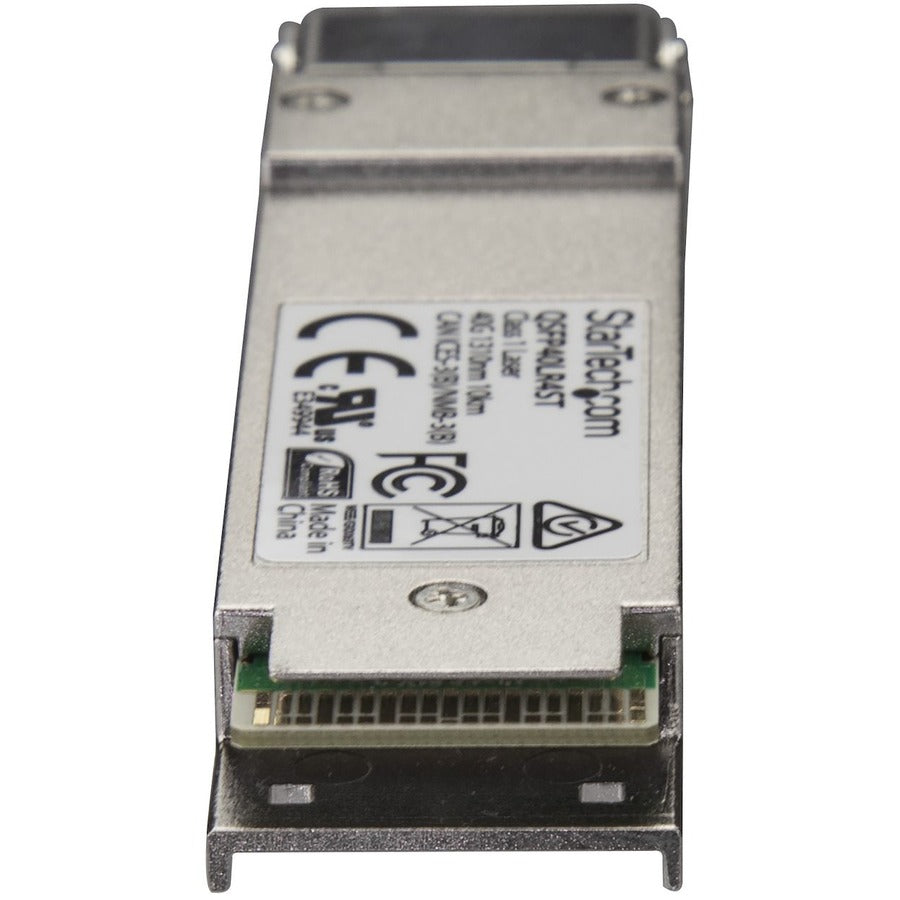

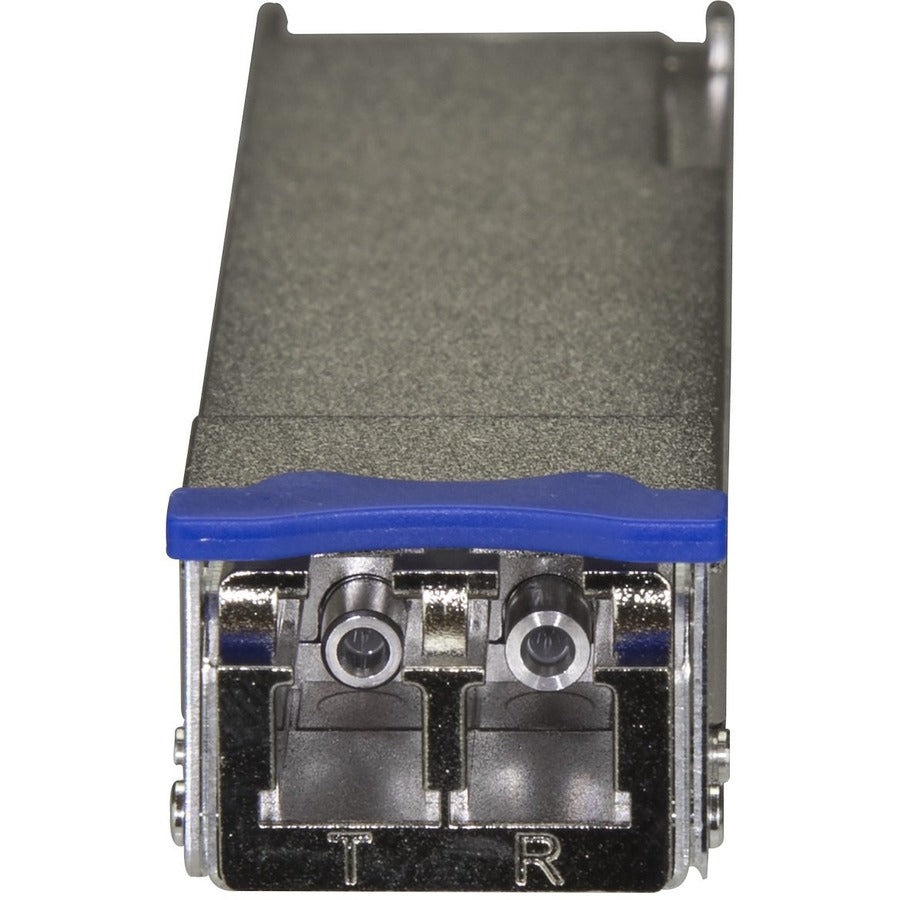

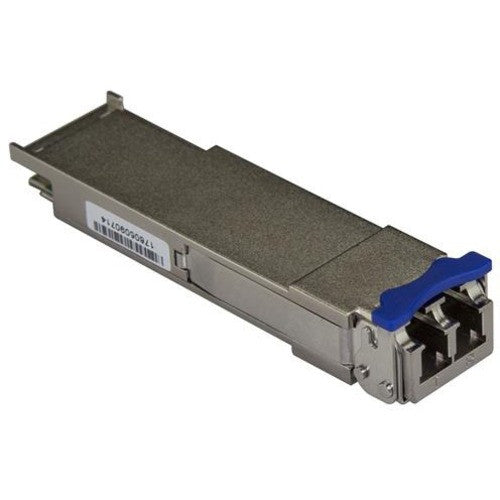

The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1270nm to 1330nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 2.5 Watts
- DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4
- 40Gbps
- Single Mode (SMF)
- LC Connector
- 1270nm to 1330nm
- Digital Diagnostic Monitoring (DDM)
- Distances up to 10km (6.2mi)
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- Environmental Certification : WEEE,RoHS,REACH
- Ethernet Technology : 40 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Form Factor : Hot-swappable
- Manufacturer Website Address : http://www.startech.com
- Total Number of Ports : 1
- Product Type : QSFP+
- Connector Type : LC
- Manufacturer : StarTech.com
- Application/Usage : Optical Network,Data Networking
- Compatibility : MSA Compliant
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Single-mode
- Country of Origin : China
- Network Technology : 40GBase-LR4
- Interfaces/Ports Details : 1 x LC Duplex 40GBase-LR4 Network
