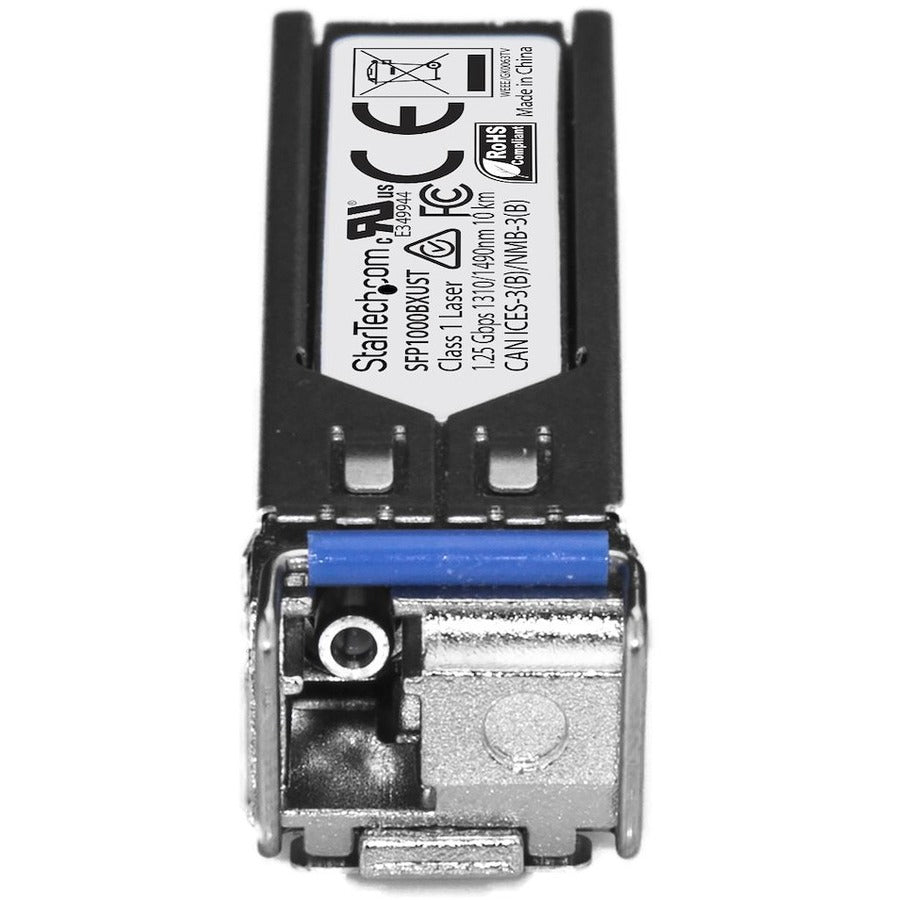

StarTech.com MSA Uncoded SFP Transceiver Module - 1000BASE-BX - 1GbE Gigabit Ethernet BiDi Fiber (SMF) SFP1000BXUST

The SFP1000BXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP1000BXDST. They are designed, programmed and tested to work with 1000BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Key features

• MSA UNCODED SFP TRANSCEIVER: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity
• INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
• 1Gbps
• 1G Bi-Directional Upstream
• Single Mode (SMF)
• 1310nmTx/1490nmRx
• Digital Diagnostic Monitoring (DDM)
• Distances up to 10km (6.2mi)
• LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch. Our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
• Technical Specifications:
• This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions

Specifications

• Wavelength: 1310nmTx/1490nmRx
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
• TECHNICAL SPECS: 1000BASE-BX
• WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
• Environmental Certification: RoHS,REACH,WEEE
• Ethernet Technology: 1.25 Gigabit Ethernet
• Environmentally Friendly: Yes
• Limited Warranty: Lifetime
• Packaged Quantity: 1
• Form Factor: Hot-swappable
• Total Number of Ports: 1
• Product Type: SFP (mini-GBIC)
• Connector Type: LC
• Manufacturer: StarTech.com
• Application/Usage: Optical Network,Data Networking
• Compatibility: MSA Compliant
• Media Type Supported: Optical Fiber
• Fiber Mode Supported: Single-mode
• Country of Origin: China
• Network Technology: 1000Base-BX
• Interfaces/Ports Details: 1 x LC Duplex 1000Base-BX Network
