Description
This multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70 m) away. It features a built-in switch and scaler, so you can choose which video source is output from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).
Seamless Integration and Operation
TheHDBaseT extender's built-in converter switch lets you connect two HDMI sources, a VGA source, and a DPsource to the same remote and local HDMI display. You don't needadapters or scalers, or a video switch.
Along with manuallyswitching your video source with easy-to-use buttons, the video extender ensures hassle-free operationwith twoauto-switching modes: auto-detect switching, which detects and selects a newly connected device, andpriority selection, which lets you choose whichport is activated by default, for automatic switching.
Built-In Video Scaling
This HDBaseT extenderfeatures a built-in scaler that scales the image to 1080p, so you can rest assured yourHDMI display will intuitively work with any source that's connected through it. Scaling is easy to do,with an intuitive OSD that's accessible using buttons on theremote receiver. Newer HDMI displays no longer support legacy resolution video signals. Without support for these common VGA resolutions, your source may not work with your new HDMI display.
High-Definition 1080p Video at230 Feet (70 Meters)
The extender kit maintains your HD picture quality, even at230ft. (70 m) away from your video source, ensuringyou can provide the best possible viewing experience.
The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.
- Save hassle and expense with a switch and extender in one device, that accommodates VGA, DP and HDMI inputs
- Ensure perfect video connectivity, every time, with a built-in video scaler
- Get crystal-clear picture quality at impressive distances with 1080 resolution at up to 230 ft.
- Number of VGA Inputs : 1
- Number of HDMI Outputs : 2
- Maximum Operating Distance : 229.66 ft (70000 mm)
- Number of Input Devices Supported : 4
- Transmitter Depth : 4.20" (106.68 mm)
- Number of Output Devices Supported : 1
- Transmitter Weight (Approximate) : 2 kg
- Form Factor : Desktop
- Receiver Width : 2.40" (60.96 mm)
- Manufacturer Website Address : http://www.startech.com

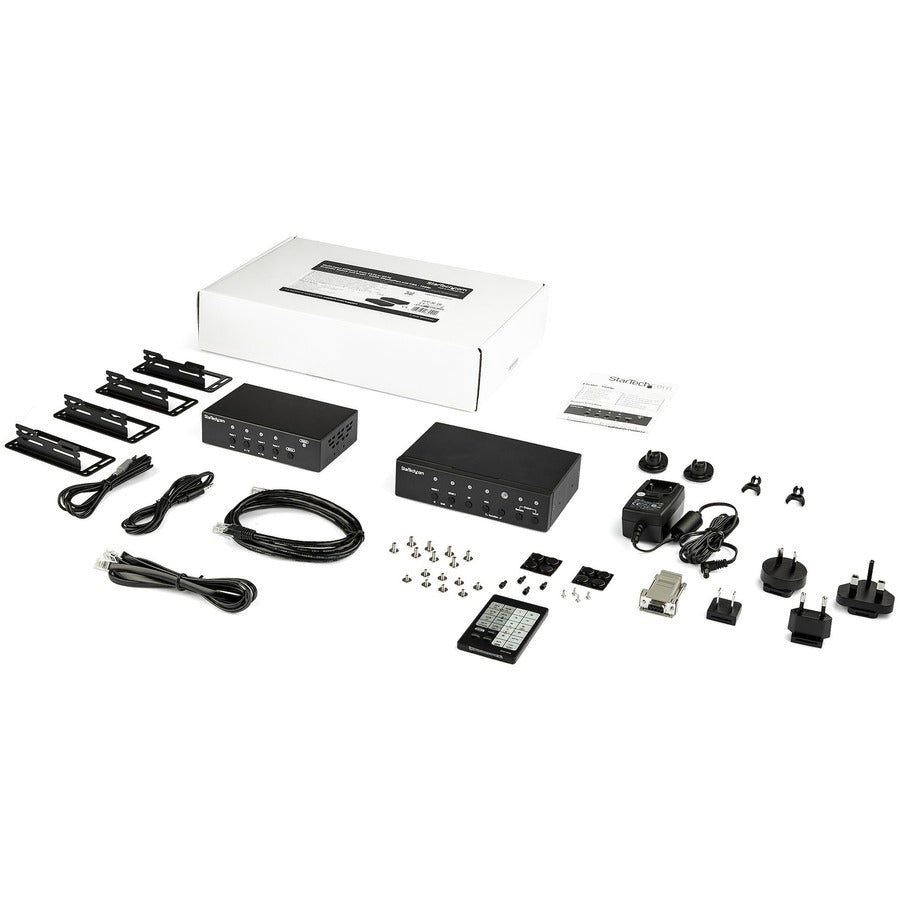

- Package Contents :
- 1 x HDBaseT Transmitter
- 1 x HDBaseT Scaler Receiver
- 1 x Remote Control
- 1 x RJ-11 to RS-232 Adapter
- 1 x CAT5 Cable
- 1 x RJ-11 Cable
- 2 x Sets of Mounting Brackets
- 1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
- 1 x IR Blaster
- 1 x IR Receiver
- 2 x Sets of Rubber Feet
- 1 x Quick-Start Guide
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6
- DisplayPort : Yes
- Manufacturer : StarTech.com
- Receiver Weight (Approximate) : 2 kg
- Transmitter Height : 2.60" (66.04 mm)
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Receiver Height : 2.60" (66.04 mm)
- HDMI In : Yes
- Receiver Depth : 4.20" (106.68 mm)
- Limited Warranty : 2 Year
- VGA In : Yes
- Network (RJ-45) : Yes
- Number of HDMI Inputs : 2
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : WUXGA
- Transmitter Width : 2.40" (60.96 mm)
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 2
- Country of Origin : Taiwan
- Connectivity Technology : Wired
- Product Color : Black
