Description

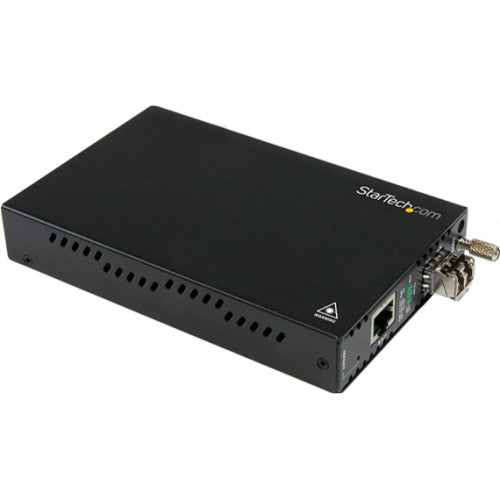

The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.

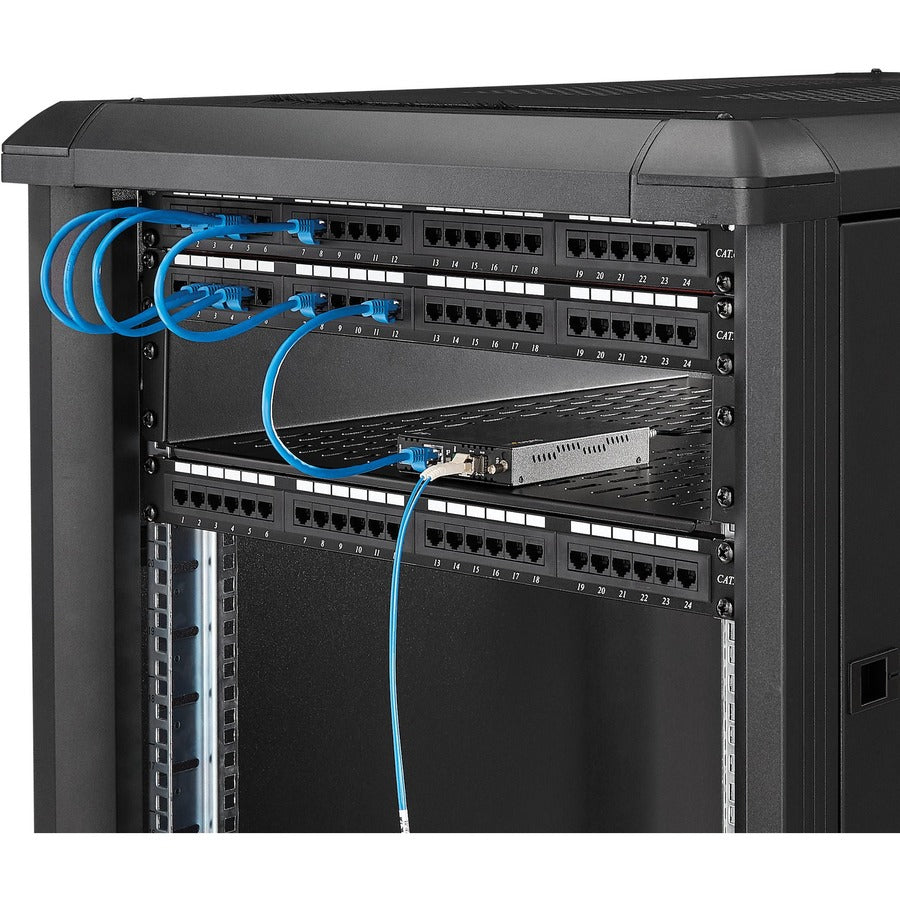

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis(ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Supports Auto Laser Shutdown (ALS)
- Supports full or half-duplex operation
- 9k Jumbo Frame Support
- Per-port bandwidth control
- SFP can be removed from the unit, for replacement or swapping to a different specification
- Supports 802.3ah OAM In-band management for monitoring connection status
- Gigabit Multi Mode LC SFP installed (up to 550m)
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Power Source : AC Adapter
- Packaged Quantity : 1
- Form Factor : External
- Manufacturer Website Address : http://www.startech.com

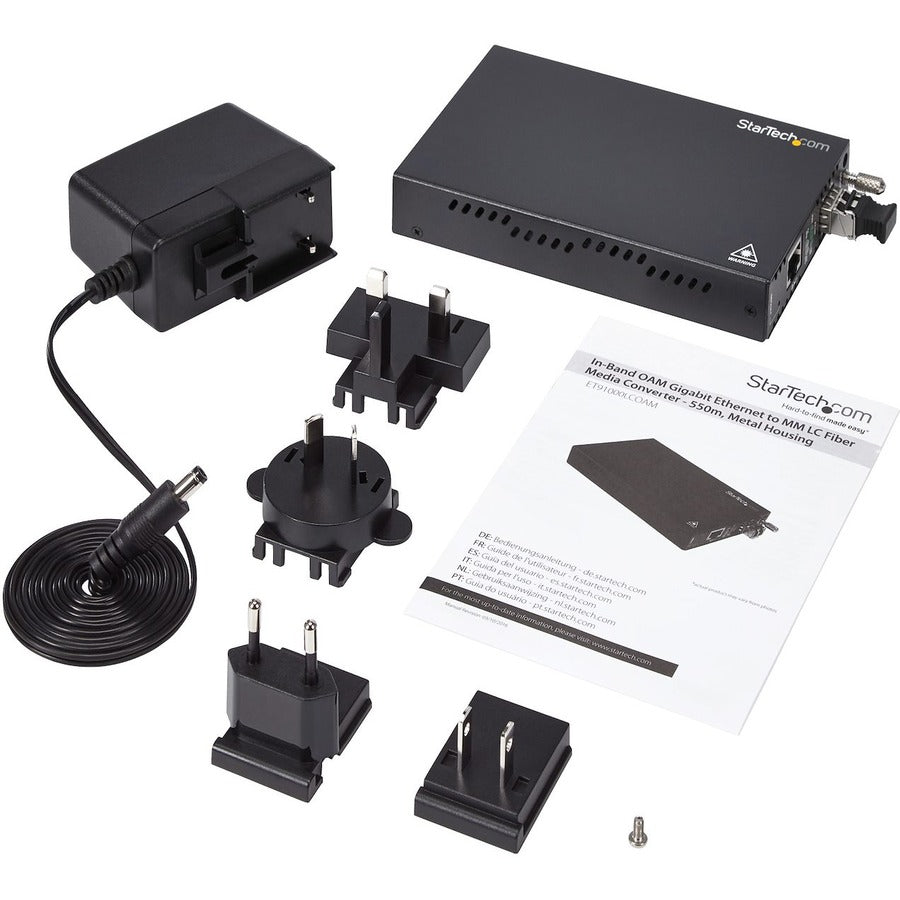

- Package Contents :
- OAM Managed Gigabit Ethernet Fiber Media Converter
- 1 x Grounding Screw
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Instruction Manual
- Total Number of Ports : 2
- Manufacturer : StarTech.com
- Management Port : No
- Network Technology : 10/100/1000Base-T,1000Base-LX/SX
- Fiber Optic Wavelength : 850 nm
- Environmental Certification : RoHS,REACH,WEEE
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- USB : No
- Limited Warranty : 2 Year
- Number of LC Ports : 1
- Network (RJ-45) : Yes
- Plug/Connector Type : Type M
- Product Type : Transceiver/Media Converter
- DVI : No
- Power Consumption : 12 W
- Maximum Distance Supported : 1804.5 ft
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Multi-mode
- Number of Network (RJ-45) Ports : 1
- LC Port Type : Duplex
- Country of Origin : Taiwan
