Description

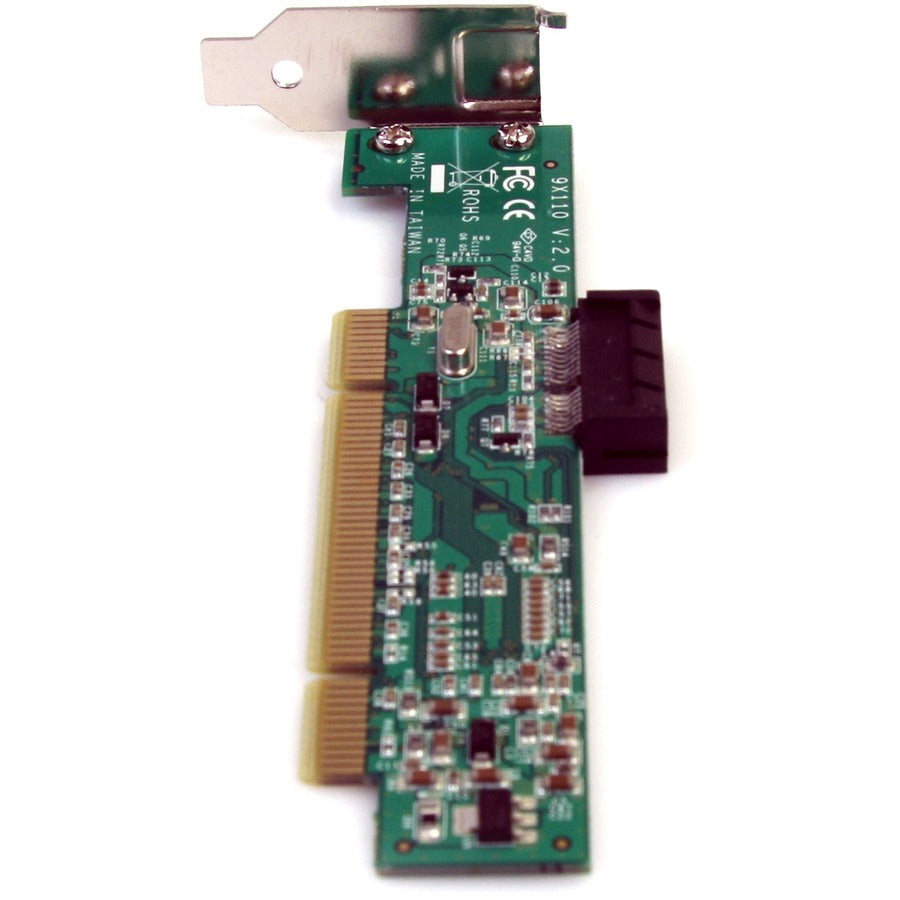

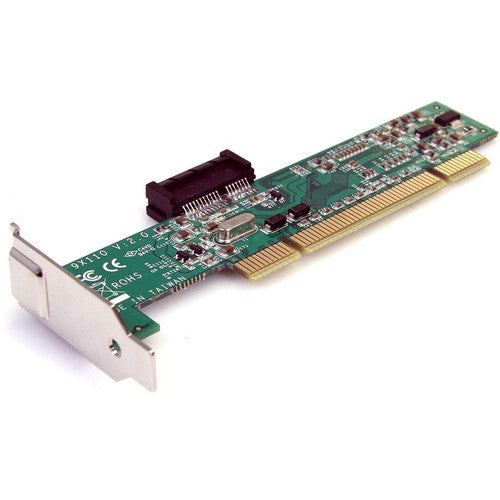

The PCI1PEX1 PCI to PCI Express Adapter card lets you use low profile PCIe expansion cards in a server/desktop motherboard PCI slot. The adapter connects through a 32-bit PCI slot to provide a low profile PCIe x1 slot in its place; a spare, full size bracket is included for installation in larger desktop or server expansion slots that can accommodate a full-sized card.
The PCI to PCI Express Adapter features an innovative bracket design that adapts and secures the low profile PCI Express card into the converted slot, ensuring a versatile and economical solution for extending the usability of older PCI motherboards or using low profile PCIe cards that do not have PCI equivalents.
- No driver or software installation
- Works with Universal Voltage PCI Slots (5V and 3.3V & 5V)
- Compliant with PCI-to-PCIe Bridge Architecture Spec Revision 1.2
- PCI revision 2.3 compliant with up to 133MBps of available bandwidth

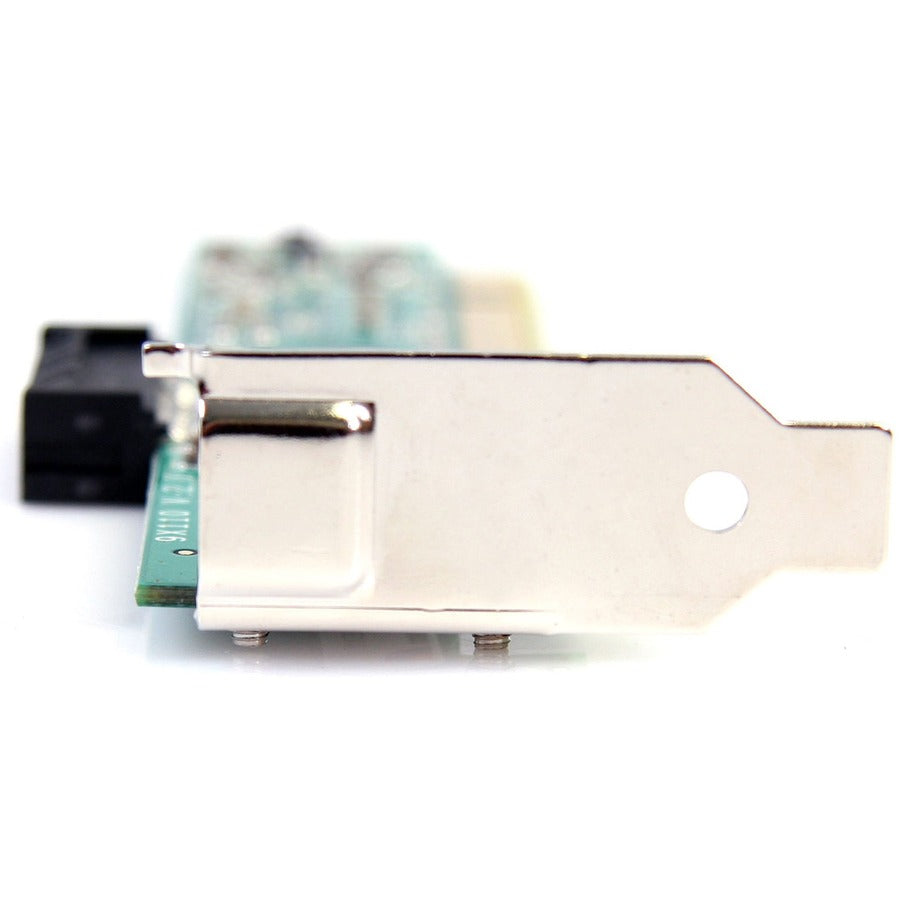

- Innovative bracket design adapts and secures the existing low profile/half-height bracket of the PCI Card
- Package Contents :
- PCI to PCI Express Adapter Card
- 1 x Spare Full Profile Bracket
- 1 x Instruction Manual
- Expansion Slot Type : PCI Express (Low-profile)
- Thickness : 0.79" (20.07 mm)
- Manufacturer Website Address : http://www.startech.com
- Environmentally Friendly : Yes
- Number of Total Expansion Slots : 1
- Environmental Certification : REACH
- Manufacturer : StarTech.com
- Product Type : Riser Card
- Limited Warranty : 2 Year
- Product Model : PCI1PEX1
- Host Interface : PCI
- Country of Origin : Taiwan
- Expansion Slot Type : PCI Express (Low-profile)
- Package Contents :
- PCI to PCI Express Adapter Card
- 1 x Spare Full Profile Bracket
- 1 x Instruction Manual
- Thickness : 0.79" (20.07 mm)
- Manufacturer Website Address : http://www.startech.com
- Environmentally Friendly : Yes
- Number of Total Expansion Slots : 1
- Manufacturer : StarTech.com
- Product Type : Riser Card
- Limited Warranty : 2 Year
- Product Model : PCI1PEX1
- Host Interface : PCI
- Country of Origin : Taiwan
- Environmental Certification : REACH
