Description

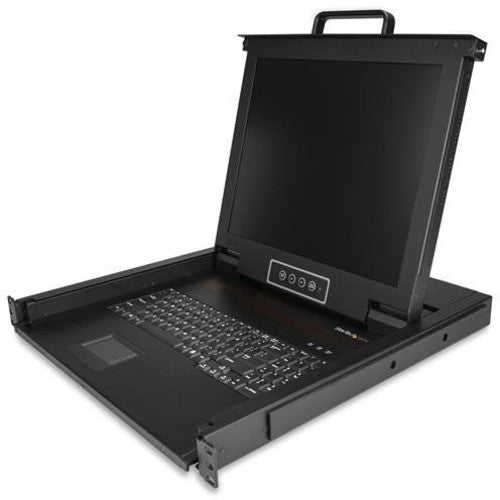

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box:
- 1 VGA KVM Cable
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK.
- TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
- MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height
- 99 key full keyboard with numeric keypad + Trackpad
- Supports VGA and USB
- Integrated Power Supply
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- Platform Supported : PC
- KVM Switch : No
- Manufacturer Website Address : http://www.startech.com

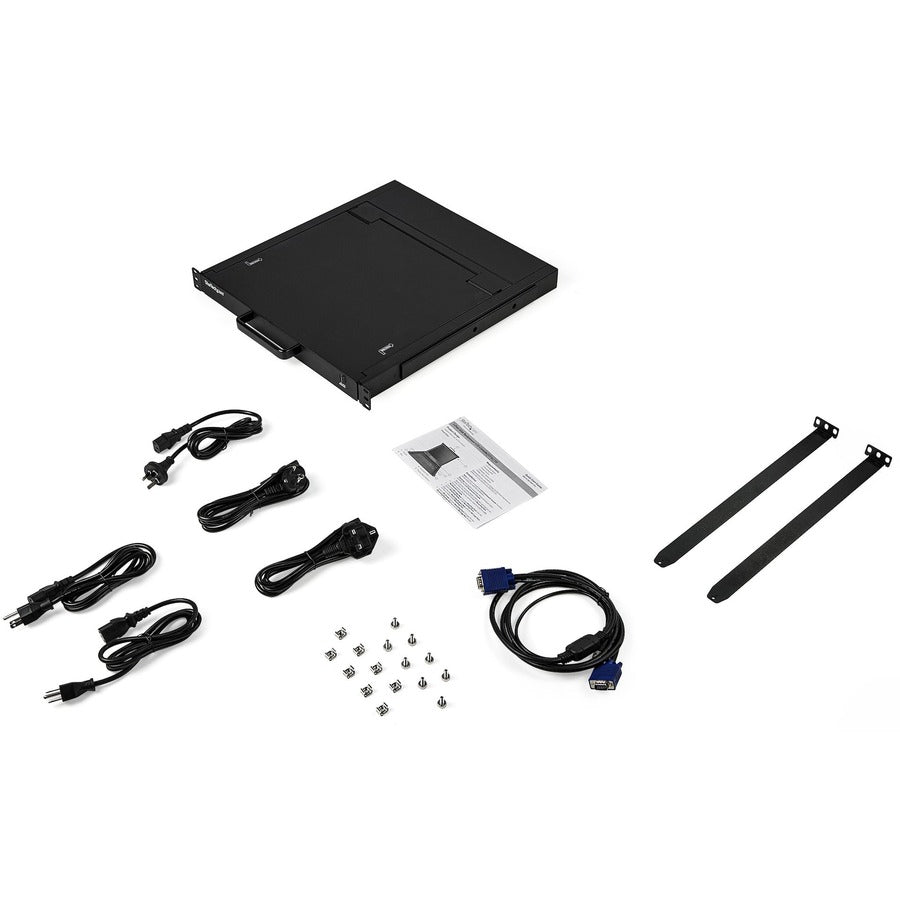

- Package Contents :
- Single-Port Rackmount KVM Console with 17" Display
- 1 x KVM Cable
- 8 x M5 Cage Nuts
- 8 x M5 Screws
- 5 x Regional Power Cords (NA, JP, UK, EU, ANZ)
- 2 x Mounting Rails
- 1 x Quick-start Guide
- Pointing Device Type : TouchPad
- Manufacturer : StarTech.com
- Screen Mode : SXGA
- Input Voltage Range : 100V AC to 240V AC
- Screen Resolution : 1280 x 1024
- Environmental Certification : RoHS,WEEE
- Environmentally Friendly : Yes
- Screen Size : 17"
- USB : Yes
- Number of Computers Supported : 1
- Keyboard : Yes
- Input Voltage : 120 V AC,230 V AC
- Limited Warranty : 2 Year
- VGA : Yes
- Product Type : LCD Rack Console
- Display Screen Type : LCD
- Number of VGA Ports : 1
- Country of Origin : China
- Product Color : Black
- Product Material : Steel
- Power Consumption : 13 W
- Device Type : LCD Rack Console
