Description
The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.
The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.
Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Supports full-duplex data communication
- Compact design
- No driver software required for easy Plug-and-Play installation
- Employ existing Cat 5, 5e, 6 or better Ethernet infrastructure to remotely connect serial devices
- Compatible with all RS232 communications
- Data transfer rates of up to 230Kbps
- Extend RS232 up to 1000m / 3300ft
- Environmental Certification : RoHS,REACH,WEEE
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Maximum Extended Range : 3280.84 ft (1000000 mm)
- Limited Warranty : 2 Year
- Manufacturer Website Address : http://www.startech.com
- Package Contents :

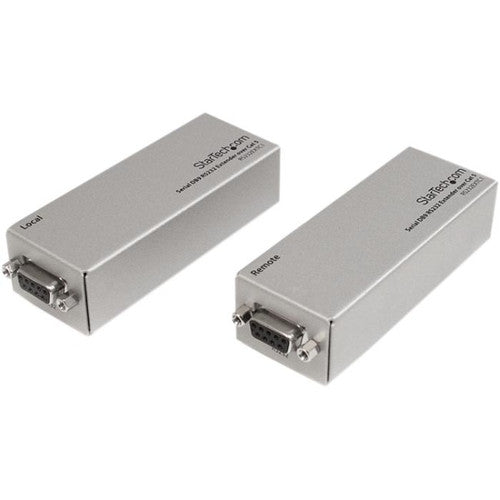

- RS232 Extender Local Unit
- RS232 Extender Remote Unit
- 20cm Null Modem cable (DB-9 Male to Male)
- Power Adapter
- User Manual
- Network (RJ-45) : Yes
- Product Type : Serial Extender
- Length : 3.60" (91.44 mm)
- Manufacturer : StarTech.com
- Number of Network (RJ-45) Ports : 2
- Country of Origin : Taiwan
- Product Color : Silver
- Input Voltage : 230 V AC
- Product Material : Steel
- Additional Information :
- Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located
- Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length
- Pure hardware design, no software or drivers required ensuring a simple plug and play installation
- Maximum Data Transfer Rate : 230 kB/s
