Description
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
- Compact design and wall mountable
- Non-blocking full wire-speed forwarding rate
- Provides DIP switch supporting Link Fault Pass-through function
- LED Indicators for simple Ethernet/fiber network link monitoring
- 1310 nm wavelength
- Supports IEEE 802.1q Tag VLAN pass through
- Power Source : AC Adapter
- Packaged Quantity : 1
- Form Factor : Wall Mountable
- Manufacturer Website Address : http://www.startech.com

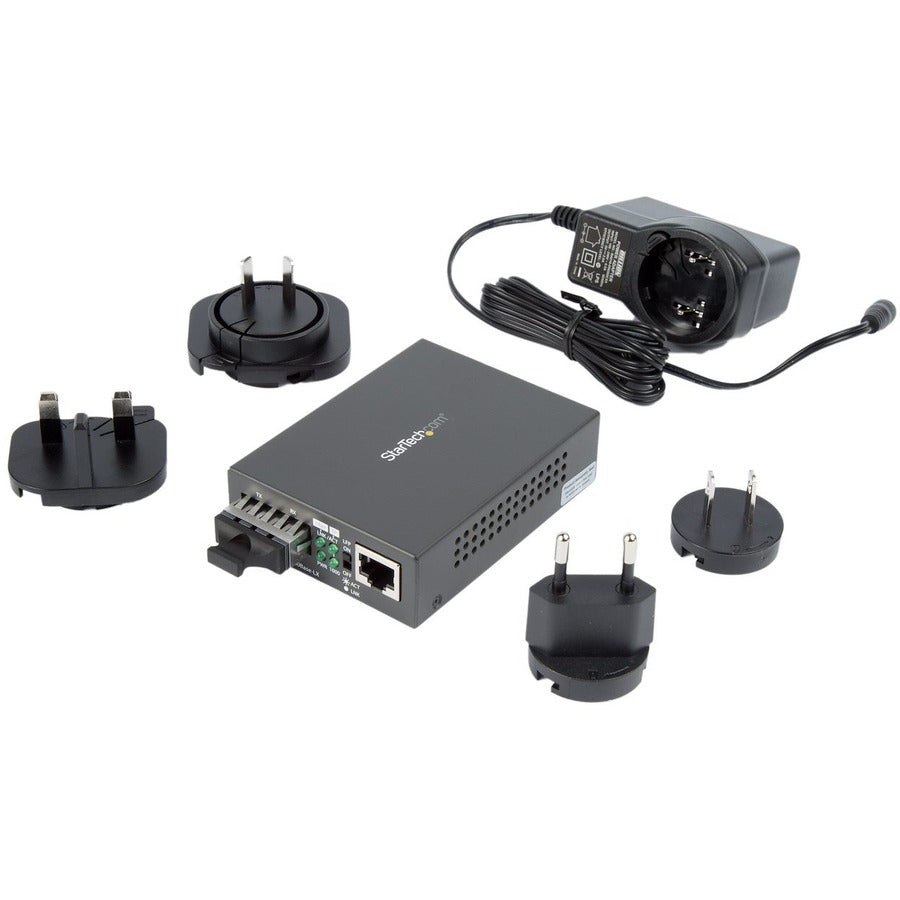

- Package Contents :
- Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
- 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
- 1 x Quick-start Guide
- Total Number of Ports : 2
- Manufacturer : StarTech.com
- Fiber Optic Wavelength : 1310 nm
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- SC Port Type : Duplex
- Number of SC Ports : 1
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : Type N
- Product Type : Transceiver/Media Converter
- Power Consumption : 10 W
- Maximum Distance Supported : 6.2 Mile
- Fiber Mode Supported : Single-Mode
- Number of Network (RJ-45) Ports : 1
- Country of Origin : Taiwan
- Network Technology : 1000Base-T,1000Base-LX,10Base-T,100Base-LX
- Environmental Certification : RoHS,REACH,WEEE
- Media Type Supported : Twisted Pair,Optical Fiber
