Description

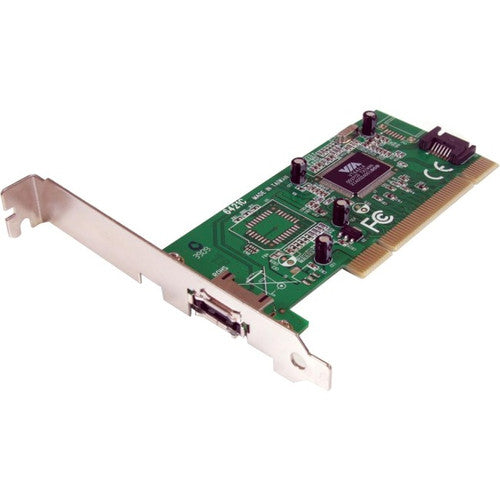

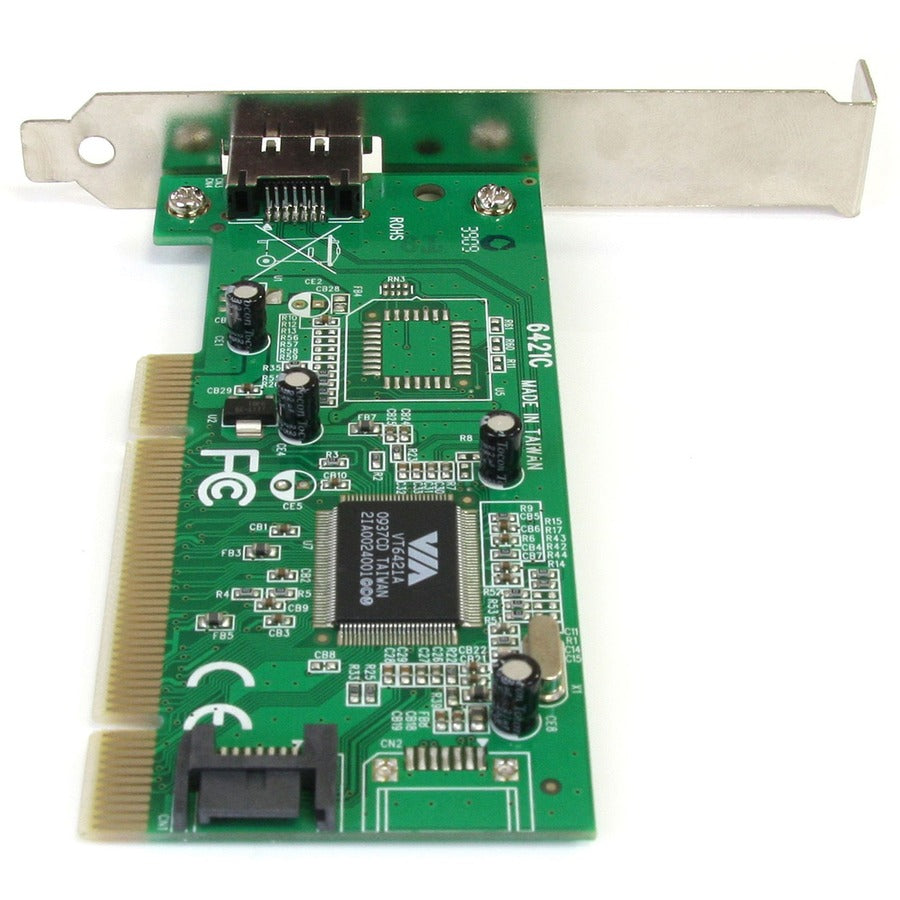

This PCI based SATA Controller Card allows you to turn a PCI slot into one internal SATA and one external SATA (eSATA) connection. Supporting SATA 150 hard drives, and data transfer rates of up to 1.5Gbps, this controller card is the perfect solution if you need an extra SATA port or want to externalize your storage.
- Includes a low profile/half-height installation bracket
- Independent 256-byte FIFOs (32 bit x 64 deep) per SATA channel
- Integrated PCI DMA engines
- Fully compliant with the Serial ATA 1.0a specification, with transfer rates up to 1.5Gbps
- Large capacity drive support with 48-bit Logical Block Addressing (LBA)

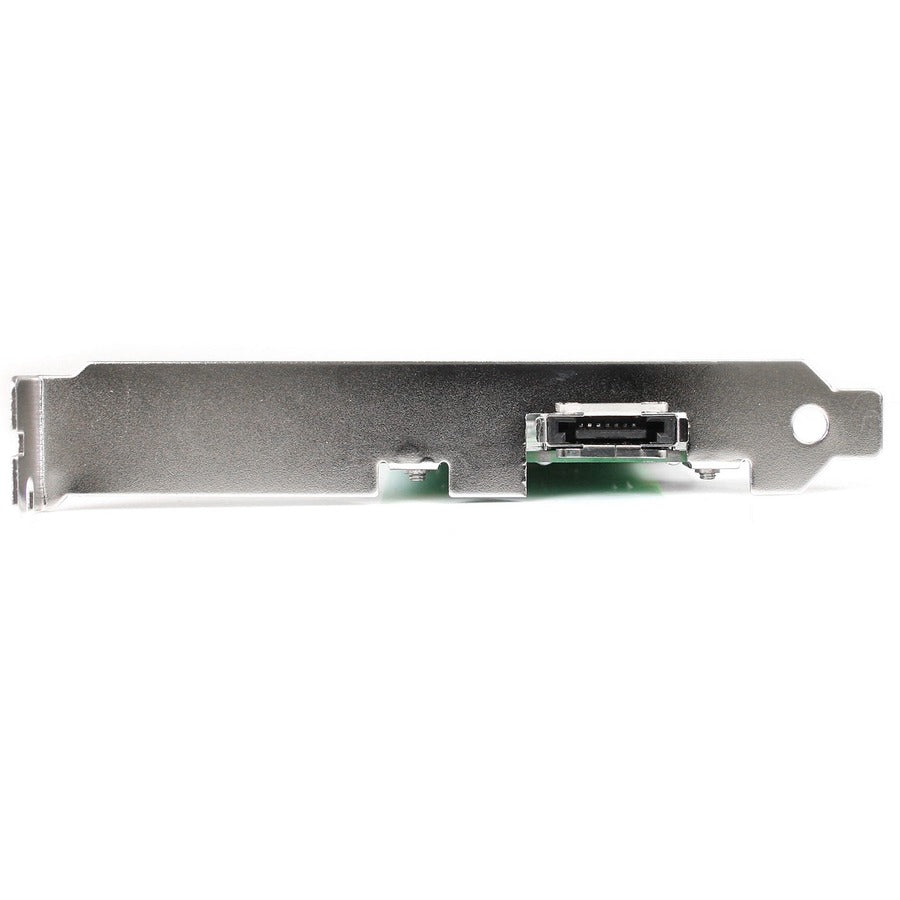

- 1 internal SATA port and 1 external eSATA port
- Environmental Certification : RoHS,WEEE,REACH
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Controller Type : Serial ATA/150
- Platform Supported : PC
- Limited Warranty : 2 Year
- Number of SATA Ports (Internal) : 1
- Form Factor : Plug-in Card
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 Port eSATA + 1 Port SATA PCI SATA Controller Card w/ LP Bracket
- 1 x SATA Data Cable
- 1 x Low Profile Bracket
- 1 x Software CD
- 1 x Instruction Manual
- Product Type : SATA Controller
- Card Height : Dual-profile
- Length : 4.80" (121.92 mm)
- Host Interface : PCI
- Total Number of SATA Ports : 2
- Number of SATA Ports (External) : 1
- Manufacturer : StarTech.com
- Country of Origin : Taiwan
