Description

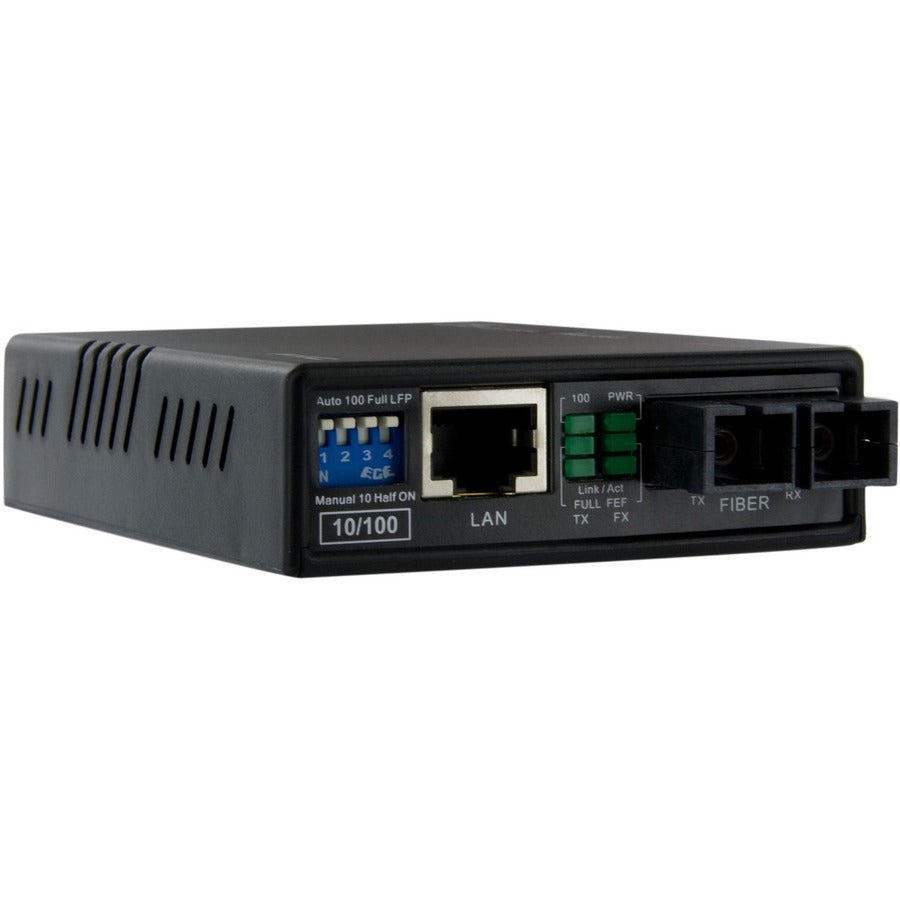

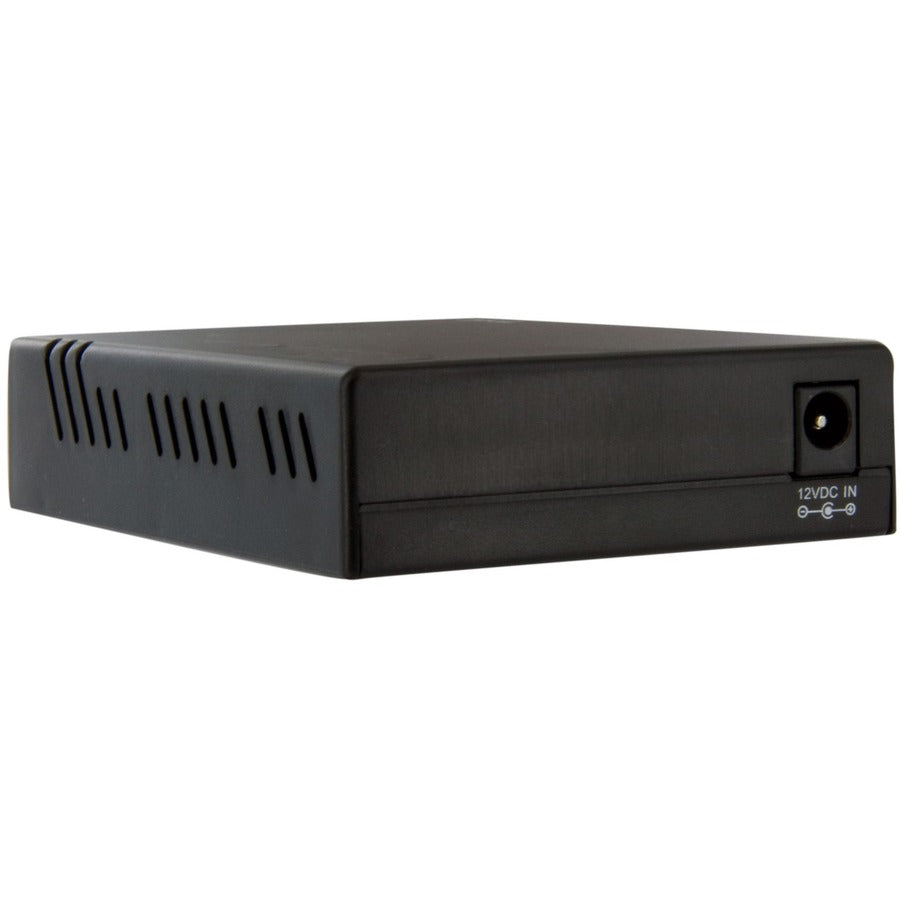

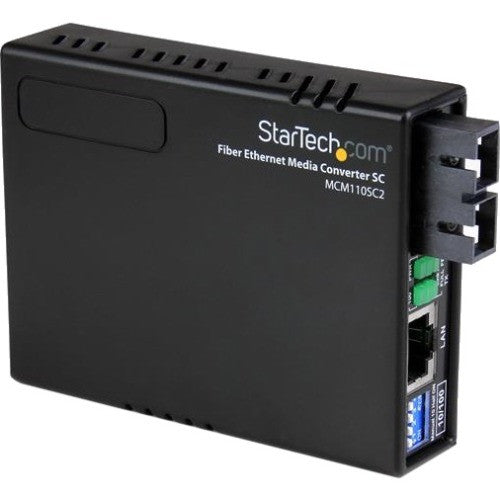

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Forward 9K jumbo packets in converter mode
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Provides switch configuration of half/full duplex transfer mode for FX port
- Supports flow control (Pause)
- Supports IEEE 802.1q Tag VLAN pass thru
- Supports Link Fault Pass through (LFP)
- Supports transparent Q-in-Q double tagged frames
- Compact design
- Compatible with most 3COM?, Cisco?, Lucent? and Nortel? networks
- Supports a maximum multi mode fiber optic cable distance of 2 km
- Environmental Certification : RoHS,REACH,WEEE
- Media Type Supported : Optical Fiber,Twisted Pair
- Network Technology : 10Base-T,100Base-FX,100Base-TX
- Fiber Optic Wavelength : 1310 nm
- Ethernet Technology : Fast Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- SC Port Type : Duplex
- Number of SC Ports : 1
- Power Source : AC Adapter
- Limited Warranty : 2 Year
- Form Factor : External
- Manufacturer Website Address : http://www.startech.com
- Network (RJ-45) : Yes
- Total Number of Ports : 2
- Plug/Connector Type : Type M
- Product Type : Transceiver/Media Converter
- Manufacturer : StarTech.com
- Power Consumption : 2.40 W
- Fiber Mode Supported : Multi-mode
- Number of Network (RJ-45) Ports : 1
- Country of Origin : Taiwan
