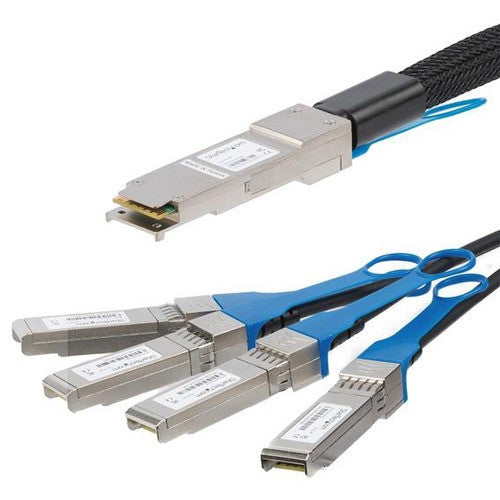

StarTech.com StarTech.com MSA Uncoded Compatible 2m QSFP+ to 4x SFP+ Direct Attach Breakout Cable - 40GbE - QSFP+ to 4x SFP+ Copper DAC 40 Gbps Low Power QSFP4SFPPC2M

The QSFP4SFPPC2M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.

At 2 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.

StarTech.com SFP Cables

All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

• MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
• TECHNICAL SPECS: 2m (6.6ft)
• 40 Gbps
• Passive Twinax (Copper)
• 1x QSFP+ to 4x SFP+ Pluggable Connector
• 100 Ohm Impedance
• 30 AWG Wire Gauge
• PVC Cable Jacket
• Hot swappable
• MSA Compliant
• DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
• OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
• WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers

. .

• Data Transfer Rate : 40 Gbit/s
• Environmental Certification : RoHS,WEEE
• Cable Type : Twinaxial
• Environmentally Friendly : Yes
• Device Supported : Network Device,Server,Switch,Transceiver,Router
• Limited Warranty : Lifetime
• Packaged Quantity : 1
• Manufacturer Website Address : http://www.startech.com
• Product Type : Network Cable
• Manufacturer : StarTech.com
• Features : Passive,Hot-swappable
• Cable Length : 6.6 ft
• Country of Origin : China
• American Wire Gauge : 30 AWG
• Product Material : Copper
• Connector on First End Details : 1 x QSFP+ Network - Male
• Jacket Material : Polyvinyl Chloride (PVC)
• Product Color : Black
• Connector on Second End Details : 4 x SFP+ Network - Male
• Connector Type on First End : QSFP+ Network - Male
• Connector Type on Second End : SFP+ Network - Male
