Description

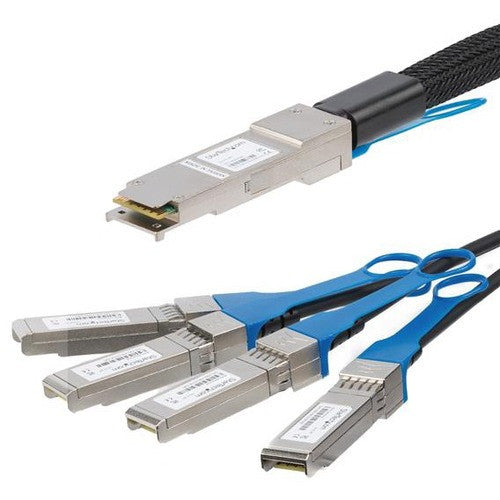

The QSFP4SFPPC3M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.
At 3 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Key features
- MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- 40 Gbps
- Passive Twinax (Copper)
- 1x QSFP+ to 4x SFP+ Pluggable Connector
- 100 Ohm Impedance
- 30 AWG Wire Gauge
- PVC Cable Jacket
- Hot swappable
- MSA Compliant
- DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
- StarTech.com SFP Cables
Specifications
- TECHNICAL SPECS: 3m (9.8ft)
- Data Transfer Rate: 40 Gbit/s
- Environmental Certification: RoHS,WEEE
- Cable Type: Twinaxial
- Environmentally Friendly: Yes
- Device Supported: Network Device,Server,Switch,Router,Transceiver
- Limited Warranty: Lifetime
- Packaged Quantity: 1
- Product Type: Network Cable
- Manufacturer: StarTech.com
- Features: Passive,Hot-swappable
- Cable Length: 9.8 ft
- Country of Origin: China
- American Wire Gauge: 30 AWG
- Product Material: Copper
- Connector on First End Details: 1 x QSFP+ Network - Male
- Jacket Material: Polyvinyl Chloride (PVC)
- Product Color: Black
- Connector on Second End Details: 4 x SFP+ Network - Male
- Connector Type on First End: QSFP+ Network - Male
- Connector Type on Second End: SFP+ Network - Male
