Description

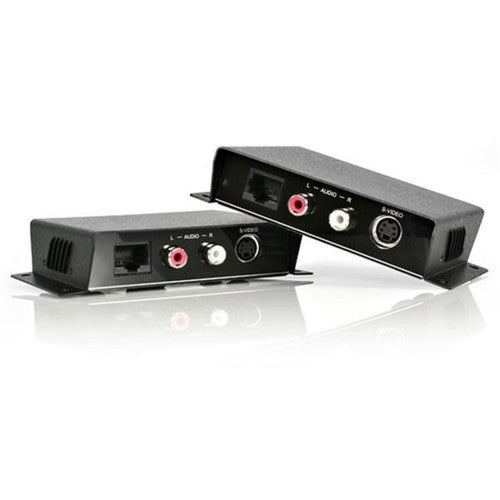

The SVIDUTPEXTA S-Video Extender over Cat 5 with Audio lets you extend an S-video source signal up to 200 meters (650 feet), using standard Cat 5 UTP cabling.
The S-Video over cat 5 extender is comprised of two extender units that can be used interchangeably - one is installed near the video signal source, the other to be placed near the desired display, up to an impressive 200m away. With no software or power adapter requirements, installation and setup is quick and hassle-free. The included installation/mounting kit, and 20cm S-Video cable offers added flexibility in the placement and usage of the device.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

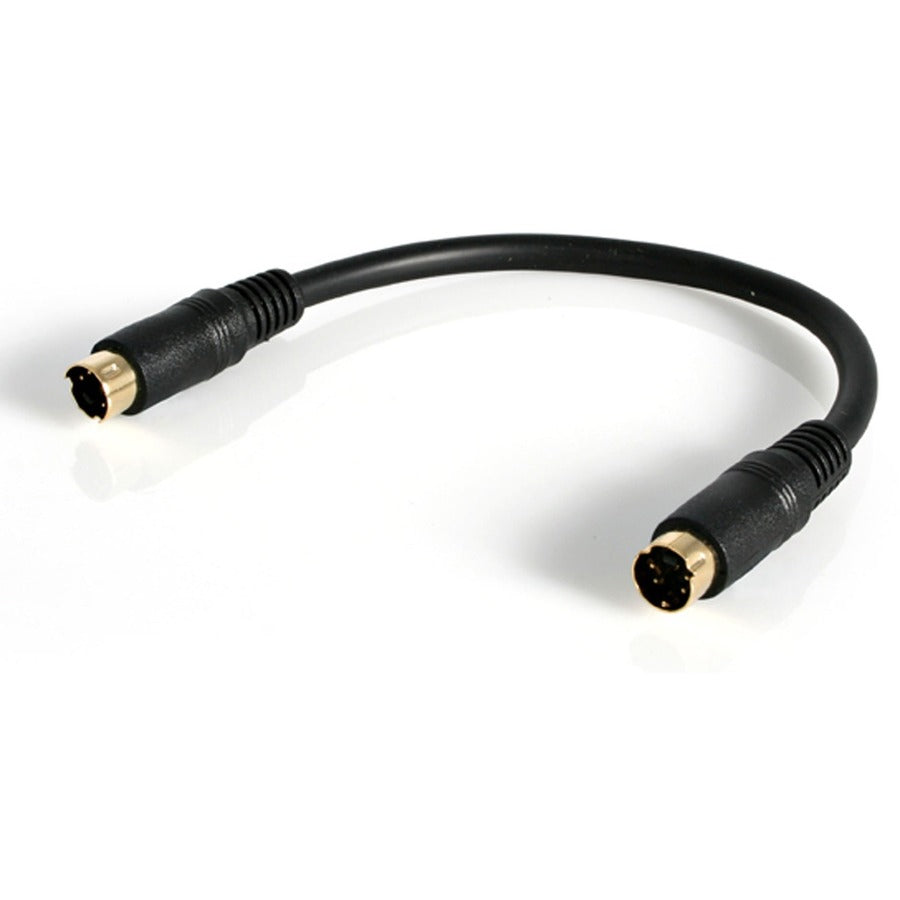

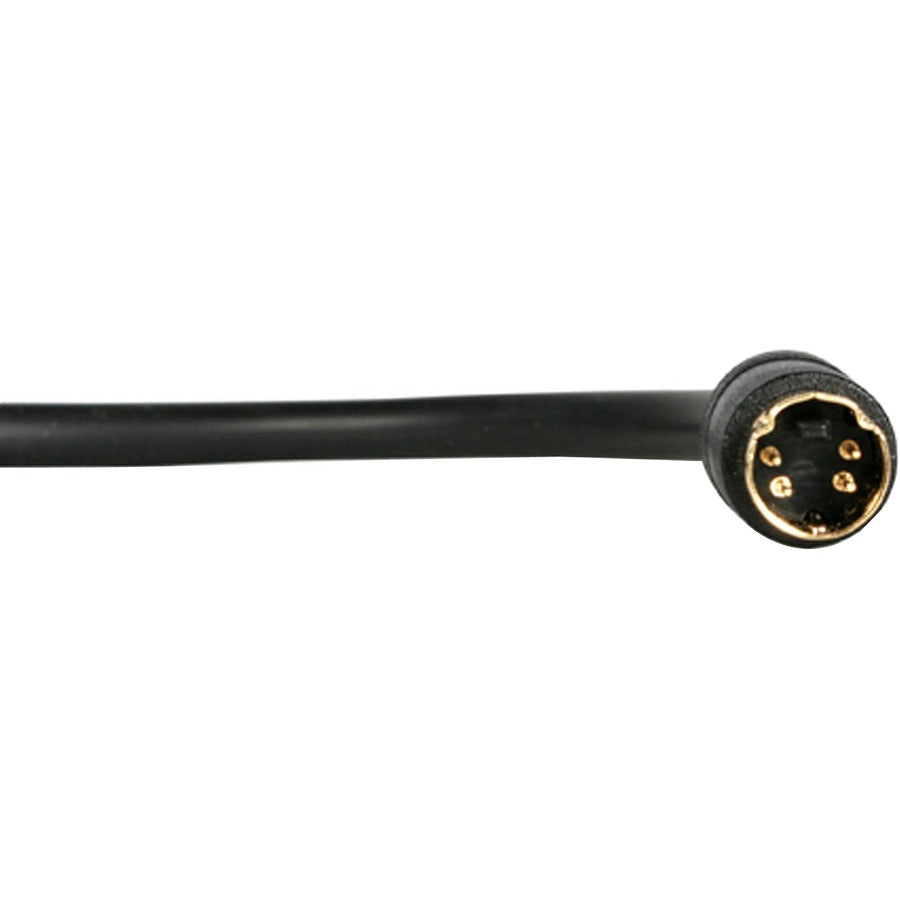

- Includes two 20cm s-video cables for quick setup and placing extender right next to your source and display
- Mounting kit included for wall installation
- Works with shielded twisted pair (STP) and unshielded twisted pair (UTP) cat5 cable
- Installation is a breeze, no software, and no power adapter required
- Extend video and stereo audio up to 200 meters using a cat5 cable
- Maximum Operating Distance : 656.17 ft (200000 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 3" (76.20 mm)
- Number of Output Devices Supported : 1
- Transmitter Weight (Approximate) : 460 g
- Receiver Width : 4.30" (109.22 mm)
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 x S-Video over Cat5 Transmitter
- 1 x S-Video over Cat5 Receiver
- 2 x S-Video Cables (8in)
- 2 x 1 Bag (Mounting Hardware)
- 1 x Instruction Manual
- Twisted Pair Cable Standard : Category 5
- Manufacturer : StarTech.com
- Receiver Weight (Approximate) : 460 g
- Transmitter Height : 0.90" (22.86 mm)
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 640 x 480
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Receiver Height : 0.90" (22.86 mm)
- Receiver Depth : 3" (76.20 mm)
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : VGA
- Transmitter Width : 4.30" (109.22 mm)
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 2
- Country of Origin : Taiwan
- Connectivity Technology : Wired
- Product Color : Black
