Description
The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.

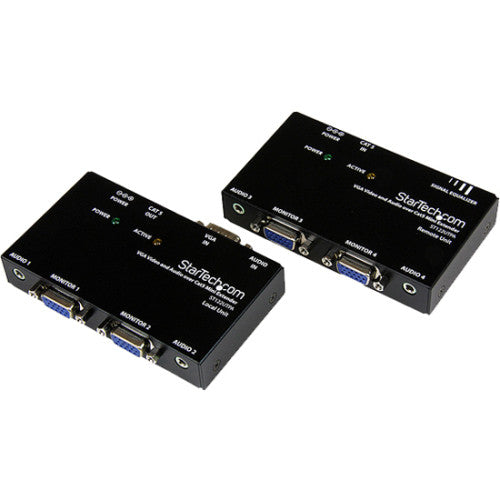

The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
- Pure hardware design, no software or drivers required
- Included mounting brackets
- Extends VGA and analog audio up to 500ft / 150m
- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Number of VGA Inputs : 2
- Maximum Operating Distance : 150 ft (45720 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 2.40" (60.96 mm)
- Number of Output Devices Supported : 4
- Transmitter Weight (Approximate) : 181.4 g
- Form Factor : Desktop
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 x Local VGA Extender Unit
- 1 x Remote VGA Extender Unit
- 1 x Mounting Bracket for Receiver (w/ screws)
- 2 x Sets Rubber Feet
- 2 x Power Adapter
- 1 x Instruction Manual
- Twisted Pair Cable Standard : Category 5
- Manufacturer : StarTech.com
- Transmitter Height : 0.80" (20.32 mm)
- VGA Out : Yes
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 1440 x 900
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Number of VGA Outputs : 2
- Limited Warranty : 2 Year
- VGA In : Yes
- Network (RJ-45) : Yes
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : XGA
- Transmitter Width : 3.30" (83.82 mm)
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 2
- Country of Origin : Taiwan
- Connectivity Technology : Wired
- Product Color : Black
