Description
Easily transformyourThunderbolt3equipped MacBook Pro or Windowslaptop intoa dual-4K workstationwith up to40Gbpsof throughput. The high-qualityTB3dockfeatures six USB 3.0 ports, 85W Power Delivery tocharge your laptop,andan SD card reader.

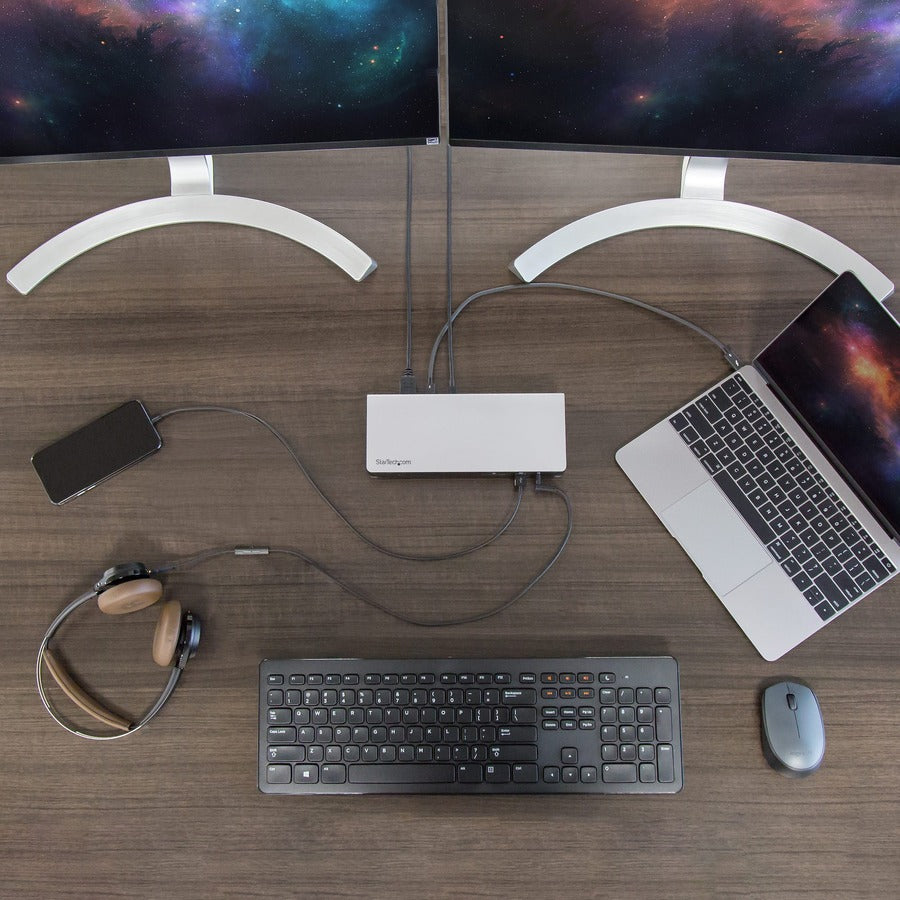

Create a Dual-4K 60Hz Workstation
Thisdual-monitor docking stationsupports40Gbpsspeeds and4K(4096 x 2160)resolution at60Hzon two monitors,enablingresource-demanding applications onindependent displays without draining system resources.The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hzon a single display.
Connect your laptop to:
- 1x4KmonitorviatheDP Port
- 1x4Kmonitor via the TB3USB-CPort(1.8 mcable included)
OR
- 1 x 5Kmonitorvia theDPandTB3 USB-C ports
Easy Installation & Deployment
Simply connect theTB3 dockto your laptop withtheincluded TB3 cable and start working immediately. Notime-consuming driver installations are required.Setup a secondmonitor using the includedUSB-C to DisplayPortcable adapter, eliminating the need for extra adapters.
Plenty of PortsIncluding SD Card Reader

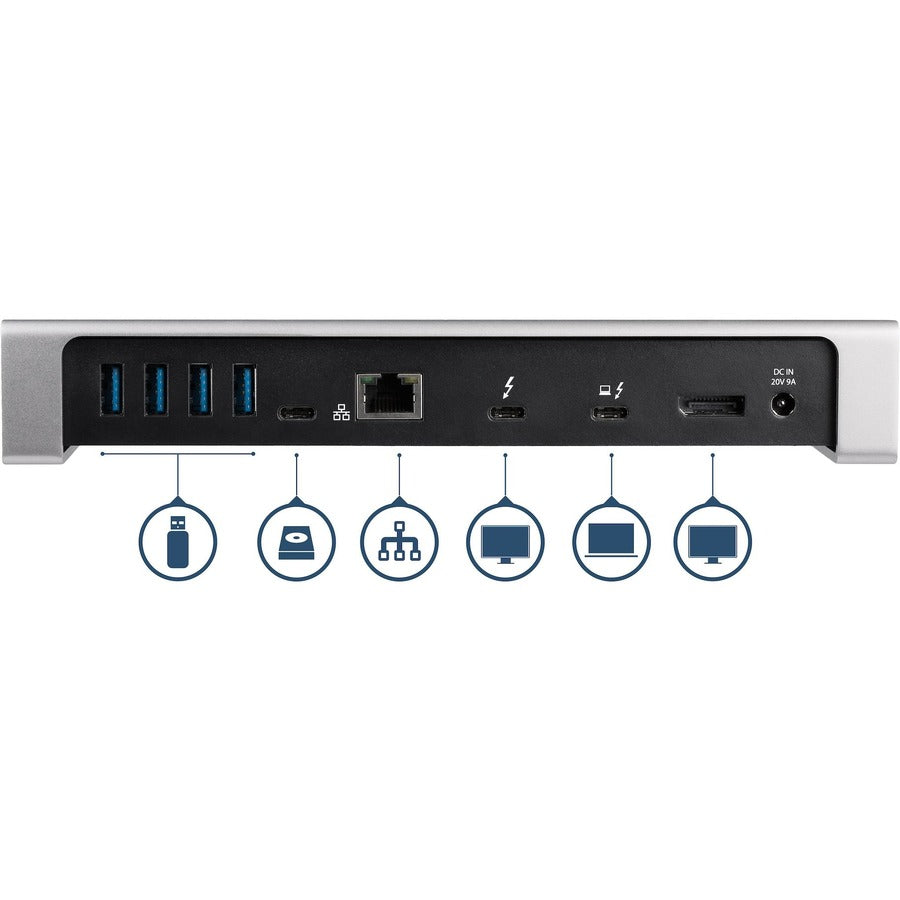

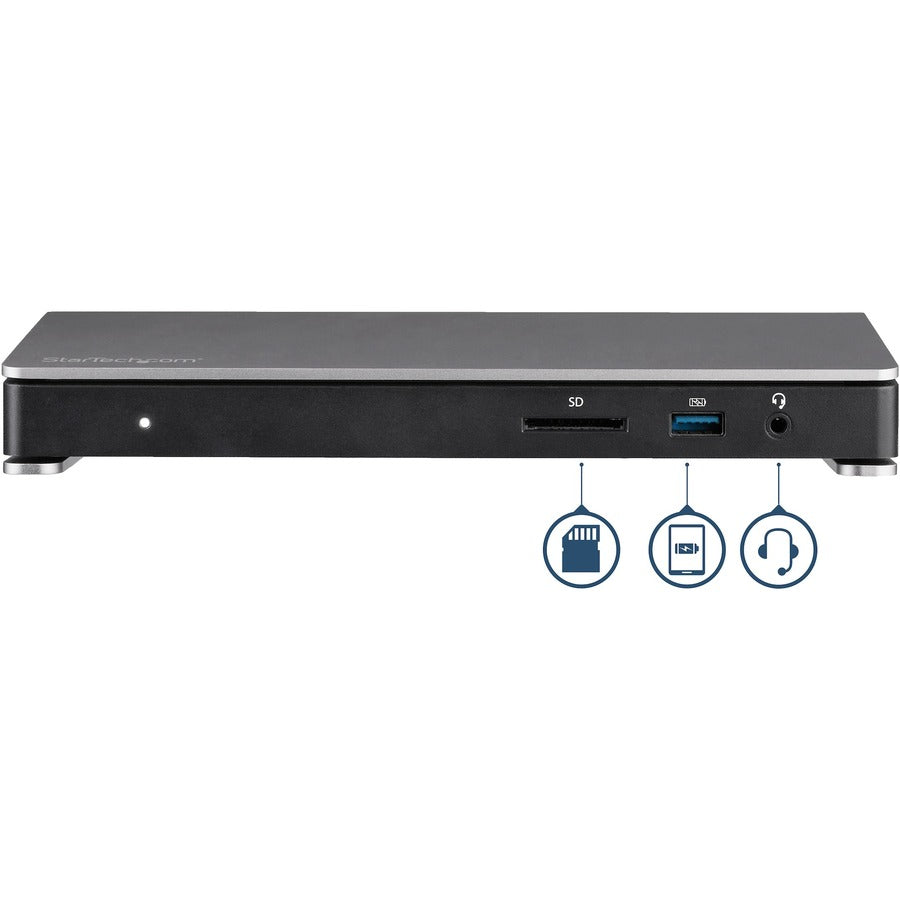

TheTB3 docking stationoffers six USB 3.0 ports,including a Fast-Charge portandUSB-C port,anGbEportandaudio/microphone port.Thebuilt-in SD card readeradds storage notusuallyavailableon mostdocking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
TB3DOCK2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
- THUNDERBOLT 3 CERTIFIED DOCK: Aluminum, 40Gbps dual 4K 60Hz DP & TB3 (USB-C) video output or single monitor 5K 30Hz, 85W PD, USB 3.0 Hub, SD 4.0 card reader, Gigabit Ethernet & Headset port
- 85W POWER DELIVERY: Thunderbolt 3 Dock can power and charge Ultrabooks & workstation laptops such as MacBook Pro (15 & 16), MacBook Air, HP, Lenovo ThinkPad & Dell XPS using macOS and Windows.
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected
- EASY TO USE: Universal Thunderbolt 3 dock w/ auto driver setup; incl. TB3 host cable and 6ft USB Type-C to DisplayPort cable for second DP monitor; extended dual display support on MacBook Pro/Air with Intel processor & single display with Apple M1 Chip
- FLEXIBLE THUNDERBOLT 3 PORT: Thunderbolt 3 port replicator w/ downstream TB3 port that supports 3 modes of operation: 2nd monitor, daisy chain up to 5 TB3 peripherals, or connect USB Type-C accessories
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
- Microphone : Yes
- USB Type-C Detail : 1 x USB Type-C (24 pin) USB 3.0 (5Gbps), 2 x Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
- Maximum Power Supply Wattage : 85 W
- Number of RJ-45 Ports : 1
- Total Number of USB Ports : 6
- Device Supported : Notebook
- Memory Card Reader : Yes
- Number of USB 3.0 Ports : 2
- Packaged Quantity : 1
- USB Type-C : Yes
- Operating System Supported : macOS,Windows
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- Thunderbolt 3 Dock with SD Card Reader - Dual-4K - 85W USB Power Delivery
- Thunderbolt 3 Cable
- USB-C to DisplayPort Cable
- Universal Power Adapter
- Power Cords (NA/JP, ANZ)
- Instruction Manual
- Screen Mode Supported : 4K
- DisplayPort : Yes
- USB Type-A : Yes
- Manufacturer : StarTech.com
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Number of Displays Supported : 2
- Number of DisplayPort Outputs : 1
- Limited Warranty : 3 Year
- Headphone/Microphone Combo Port : Yes
- Number of USB 3.1 Gen 1 Type-A Ports : 4
- Network (RJ-45) : Yes
- Product Type : Docking Station
- Host Interface : Thunderbolt 3
- Thunderbolt : Yes
- Compatibility :
- Apple MacBook Pro (15 & 16)
- Apple MacBook Air
- HP Notebooks
- Lenovo ThinkPad Notebooks
- Dell XPS Notebooks
- Country of Origin : China
- Connectivity Technology : Wired
- Product Color : Space Gray
- Supported Resolutions : 4096 x 2160,3840 x 2160
- Environmental Certification : RoHS,WEEE,REACH
- Memory Card Supported : SD,MultiMediaCard (MMC),SDHC,SDXC,microSD,microSDXC,microSDHC
