Station d'accueil StarTech.com Thunderbolt 4, alimentation 96 W, simple 8K / double moniteur 4K 60 Hz, 3 ports TB4/USB4, 4 ports USB-A, SD, GbE, câble de 0,8 m TB4CDOCK

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

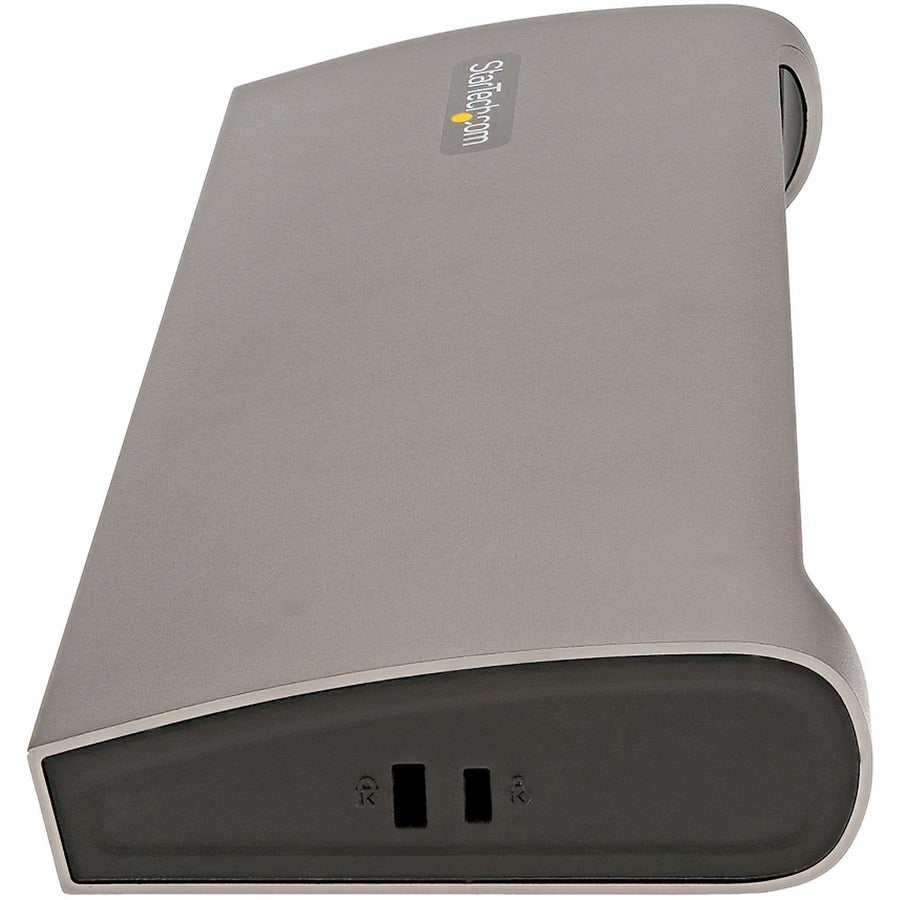

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.

High-Performance Port Connectivity

The docking station utilizes the high throughput available to your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports.

The dock features:

• 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port.

• 3x USB 3.2 Gen 2 (10Gbps) Type-A portsto connect USB peripheral devices.

• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones, or connecting USB Human Interface Device(s) (HID), such as a USB transceiver, to minimize signal interference.

• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).

• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards.

• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.

High-Resolution Display Connectivity

Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors, Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required, each sold separately).

On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 8K/6K/5K/4K 60Hz.

On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K/5K/4K 60Hz.

On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 5K/4K 60Hz.

On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K/6K/5K/4K 60Hz.

96W USB Power Delivery Certified

The Thunderbolt 4 docking station includes a 135W power adapter and supports 96W USB power delivery. This enables the dock to charge your MacBooks and Thunderbolt 4 and USB4 Windows laptops. Plus, the added power provides downstream TB4/USB4 ports with 15W (3A) for device charging, and enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.

More from the Manufacturer

• COMPATIBILITY: Features 3x downstream Thunderbolt 4 (40Gbps) ports to connect TB4, TB3, USB4 & USB 3.2 peripherals & display(s); Compatible w/Windows Thunderbolt 4/USB4 laptops or M1 Max/M1 Pro & Intel Thunderbolt 3 MacBooks (macOS 11 Big Sur or higher)
• CERTIFIED 96W POWER DELIVERY: Charge most laptops including high performance MacBooks and Thunderbolt 4/USB4 Windows laptops; Downstream TB4/USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging tablets & smartphones
• PORT FLEXIBILITY: 3x TB4 ports for peripherals, up to 2 extended displays (w/USB-C video adapters), daisy chain up to 5 devices; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD 4.0 card reader; Gigabit Ethernet (w/PXE Boot/WoL); 3.5mm headset port
• DISPLAY COMPATIBILITY: Up to single 8K30Hz/6K60Hz/5K60Hz or dual monitors at 4K60Hz on Thunderbolt 4 or USB4 Windows laptops supporting multiple monitors
• Single 4K/5K/6K60Hz on M1 MacBooks
• Dual 4K60Hz/Single 5K/6K on TB3 Intel/TB4 M1 Pro/Max MacBooks
• THUNDERBOLT CERTIFIED: Fully compatible w/Intel Evo, Tiger Lake (11th gen) & up TB4 laptops (Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, Lenovo X1 Carbon 9th Gen); Also compatible w/M1/M1 Max/Pro & TB3 MacBooks (11.0 & up)
• EASY DEPLOYMENT: Dock includes 2.6 ft (0.8 m) Thunderbolt 4 cable; Front host port; Kensington-style security slots; Auto driver setup
• CONNECTIVITY TOOLS: Provided with this docking station, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

. .

• Operating System Supported : Windows 11,Windows 10
• Maximum Power Supply Wattage : 96 W
• Number of RJ-45 Ports : 1
• Number of USB 2.0 Ports : 1
• Device Supported : Notebook/Tablet PC/Desktop PC/Smartphone/Monitor
• Memory Card Reader : Yes
• Package Contents :
  • Docking Station
  • Thunderbolt 4 Cable
  • Universal Power Adapter (NA/JP)
  • Quick-Start Guide
• Manufacturer Website Address : http://www.startech.com
• Screen Mode Supported : 4K,8K,5K,6K
• USB Type-A : Yes
• Manufacturer : StarTech.com
• Supported Resolutions : 3840 x 2160,5120 x 2880,7680 x 4320
• Ethernet Technology : Gigabit Ethernet
• Number of USB Type-A Ports : 4
• Number of Displays Supported : 2
• Product Color : Black,Gray
• Limited Warranty : 3 Year
• Headphone/Microphone Combo Port : Yes
• Number of USB 3.2 Gen 2 Type-A Ports : 3
• Network (RJ-45) : Yes
• Host Interface : Thunderbolt 4
• Product Type : Docking Station
• Compatibility :
  • Intel Evo Tiger Lake (11th gen)
  • Lenovo X1 Carbon 9th Gen
  • Apple M1 & TB3 MacBooks (11.0 & up)
  Dell Notebooks:

  • Precision 5560
  • Precision 5760
  • XPS 13 9310
  HP Notebooks:

  • EliteBook 850 G8
  • ProBook 450 G8
• Thunderbolt : Yes
• Memory Card Supported : SD,MultiMediaCard (MMC),SDHC,SDXC,microSD,microSDHC,microSDXC
• Kensington Security Slot : Yes
• Country of Origin : Thailand
• Connectivity Technology : Wired
