Description

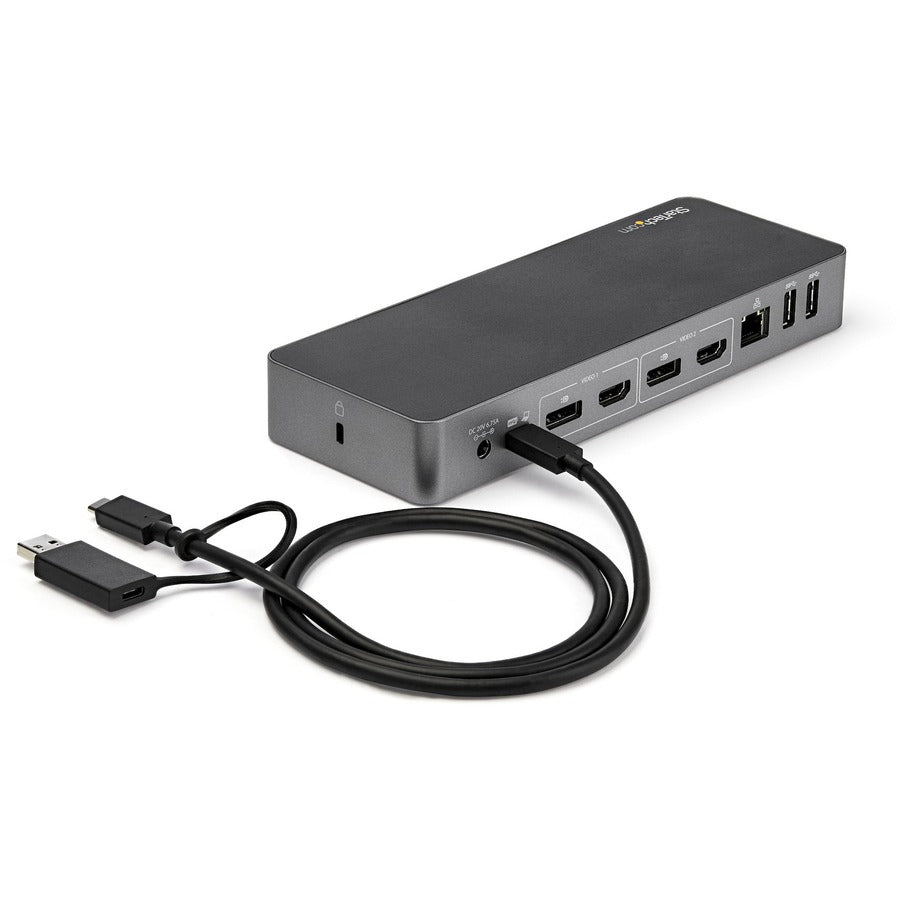

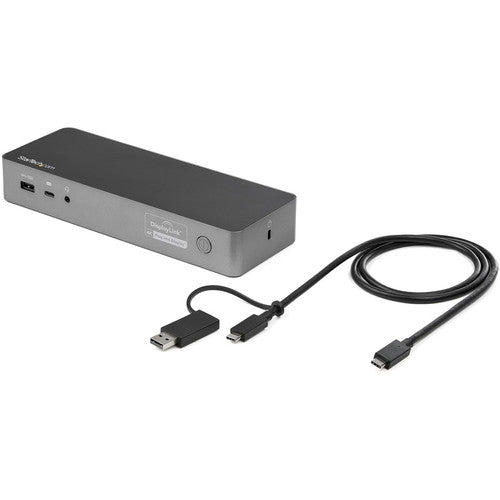

Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

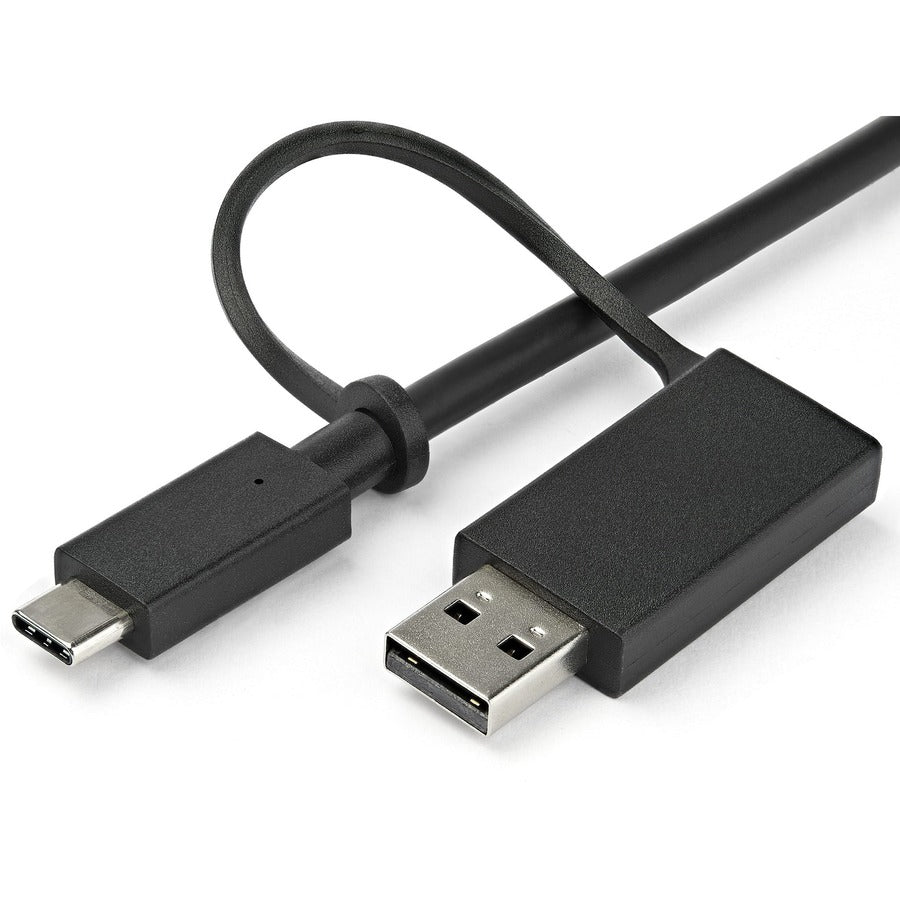

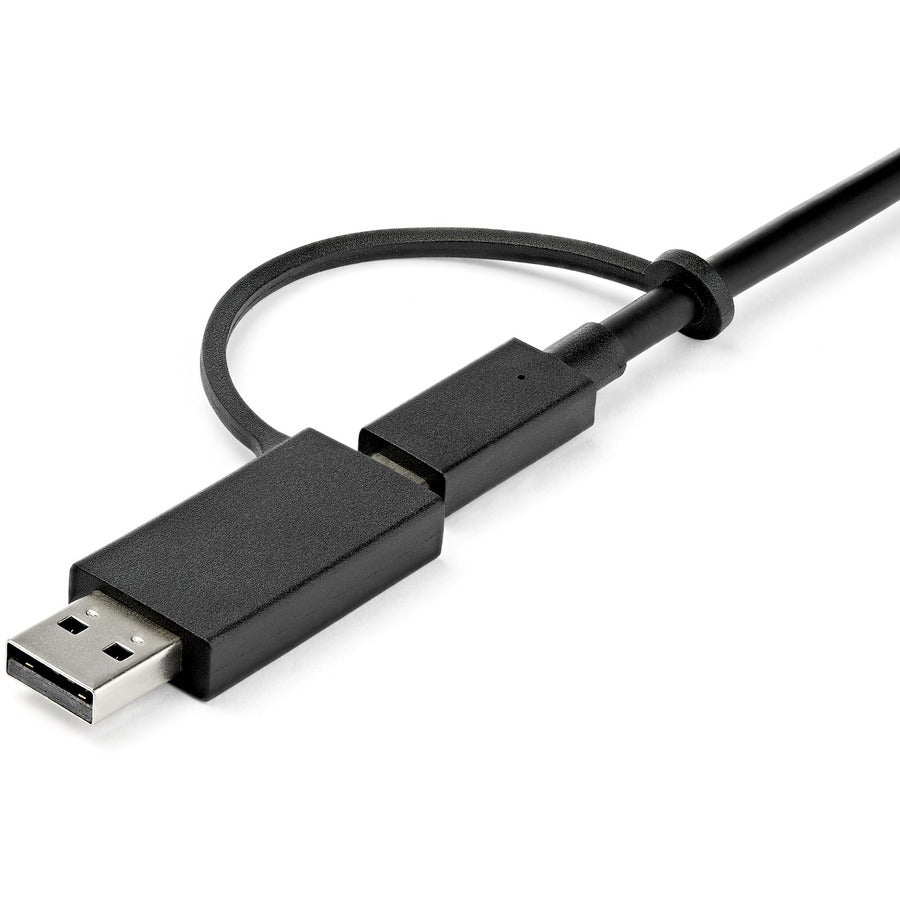

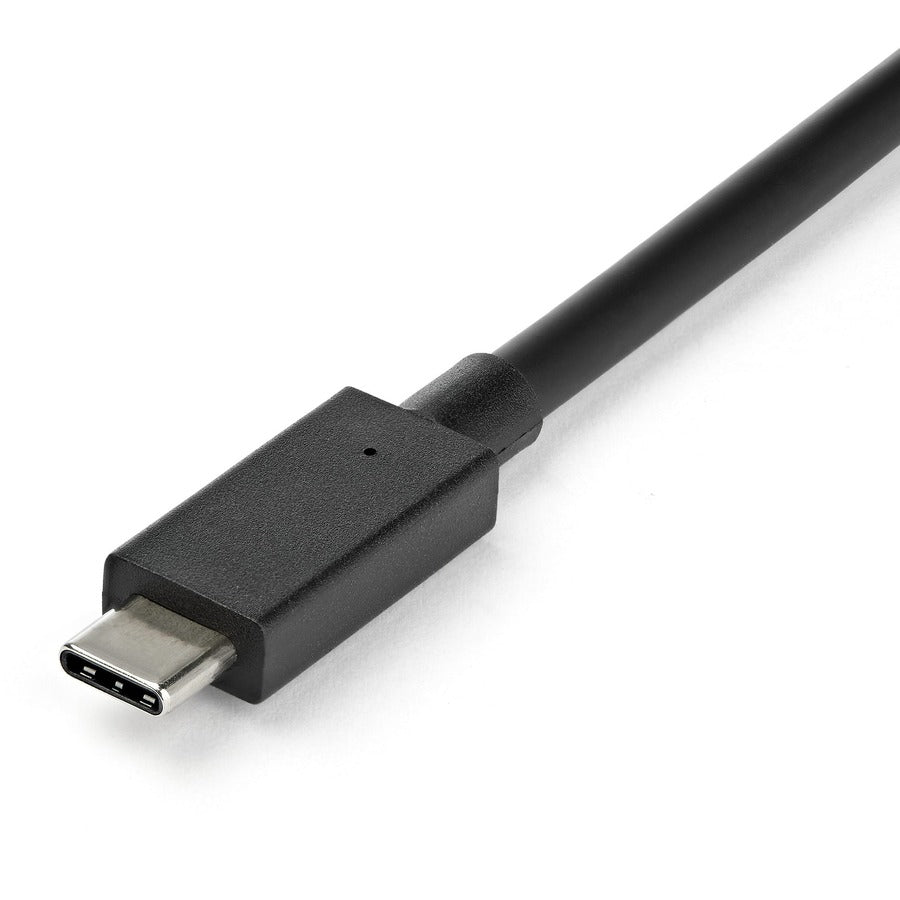

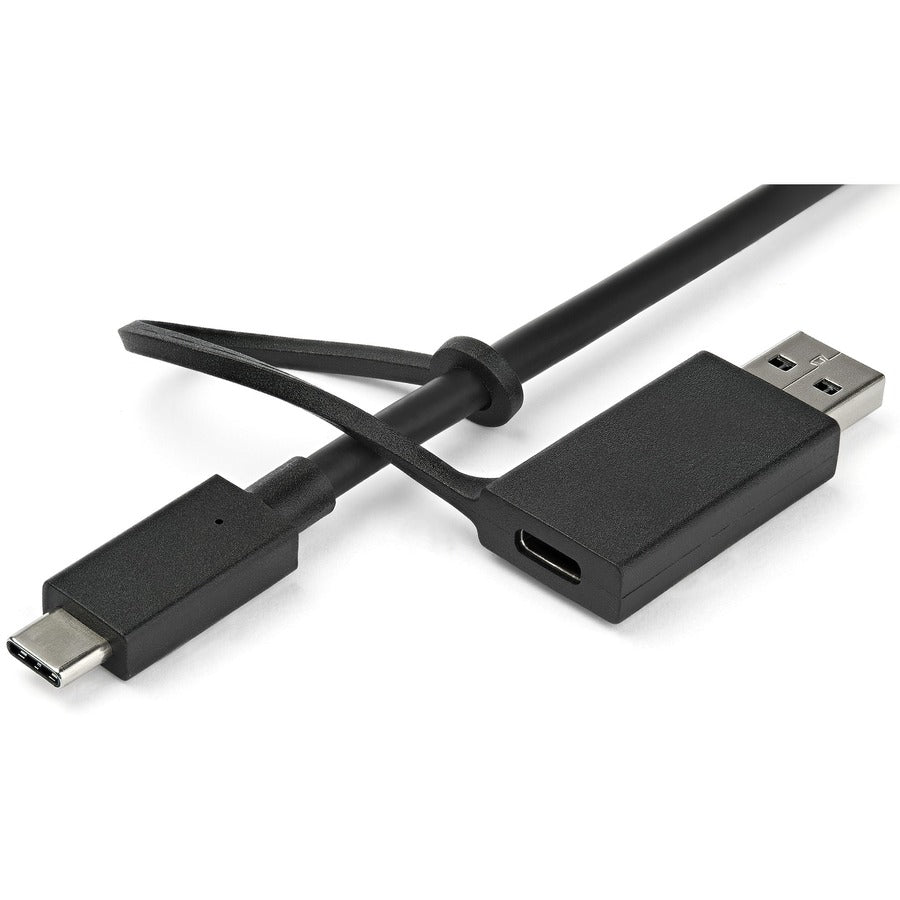

The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
-
Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
-
Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
-
Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
-
Single 5K DisplayPort * | Up to 5120 � 2880
*Requires monitor support for 5K using two DP ports
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.
60W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

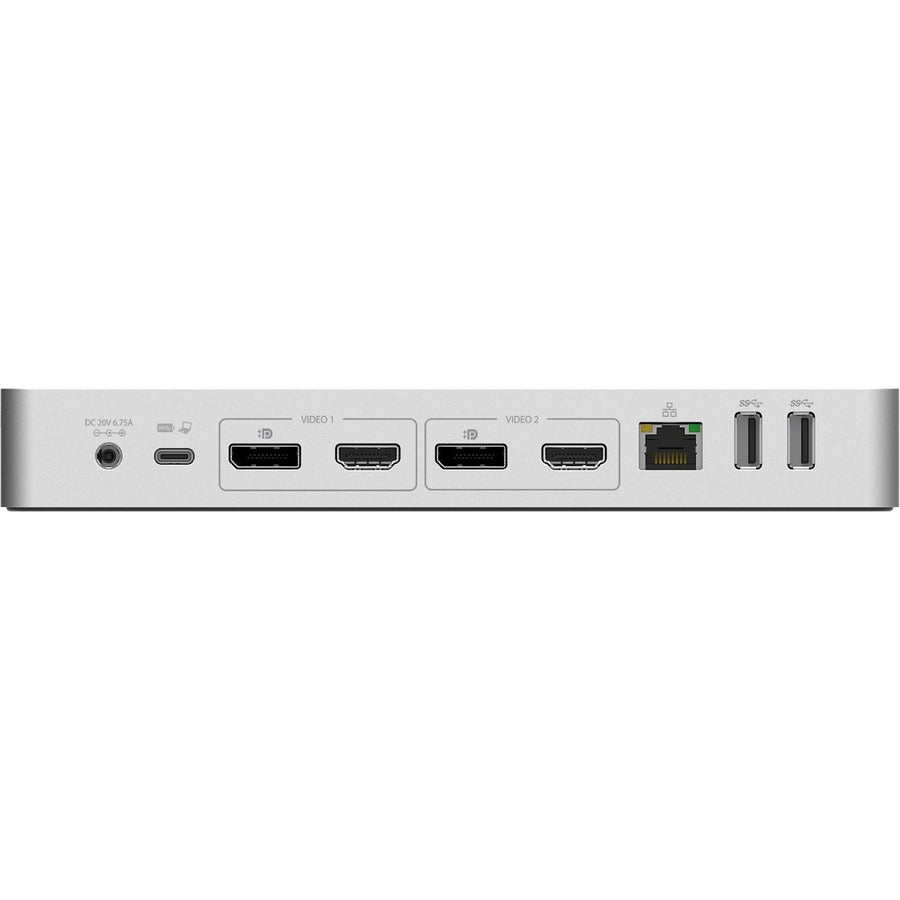

The Connections You Need

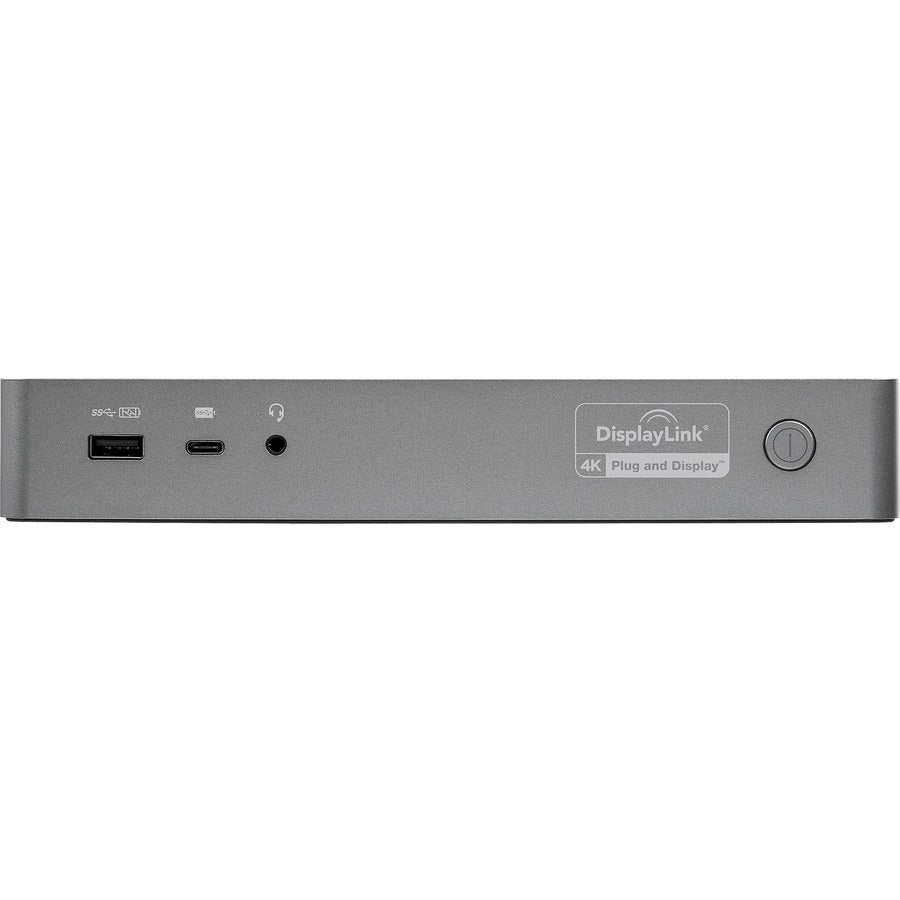

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.
The IT Pro's Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
DK30C2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
- HYBRID DOCK: Universal docking station works with USB Type-C, Thunderbolt 3, Thunderbolt 4, and USB Type-A laptop computers, using a 2-in-1 USB-C/USB-A 3.1 Gen 1 cable, ideal for hoteling or shared workspace setup
- GUARANTEED COMPATIBILITY: USB-C & USB-A hybrid dock is USB-IF, VESA & DisplayLink certified for max performance & universal compatibility w/ Dell, HP, Lenovo & Apple where mixed laptop brands deployed
- FLEXIBLE DUAL MONITOR VIDEO OUTPUTS: This Dual 4K60Hz UHD USB-C & USB-A docking station supports multiple screens: Dual DisplayPort / Dual HDMI / DP + HDMI displays; supports dual extended displays on MacBook Pro/Air with Intel CPU or Apple M1/M2 chip
- FULL FEATURED DOCK: 1 USB-C, 3 USB-A (2 fast charge), Gigabit Ethernet & audio ports, k-slot for security & holes for optional mounting bracket; incl. DisplayLink update utility
- 60W POWER DELIVERY 3.0: Power & charge USB-C & Thunderbolt 3 and 4 workstation laptops & ultrabook incl. Thinkpad T Series, X1 Carbon, Surface Pro7, MacBook & USB-C Chromebooks w/ this USB-C port replicator
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
- USB Type-C Detail : 1 x USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female
- Maximum Power Supply Wattage : 60 W
- Number of HDMI Outputs : 2
- Total Number of USB Ports : 4
- Device Supported : Notebook
- Number of USB 3.0 Ports : 4
- Packaged Quantity : 1
- USB Type-C : Yes
- Manufacturer Website Address : http://www.startech.com

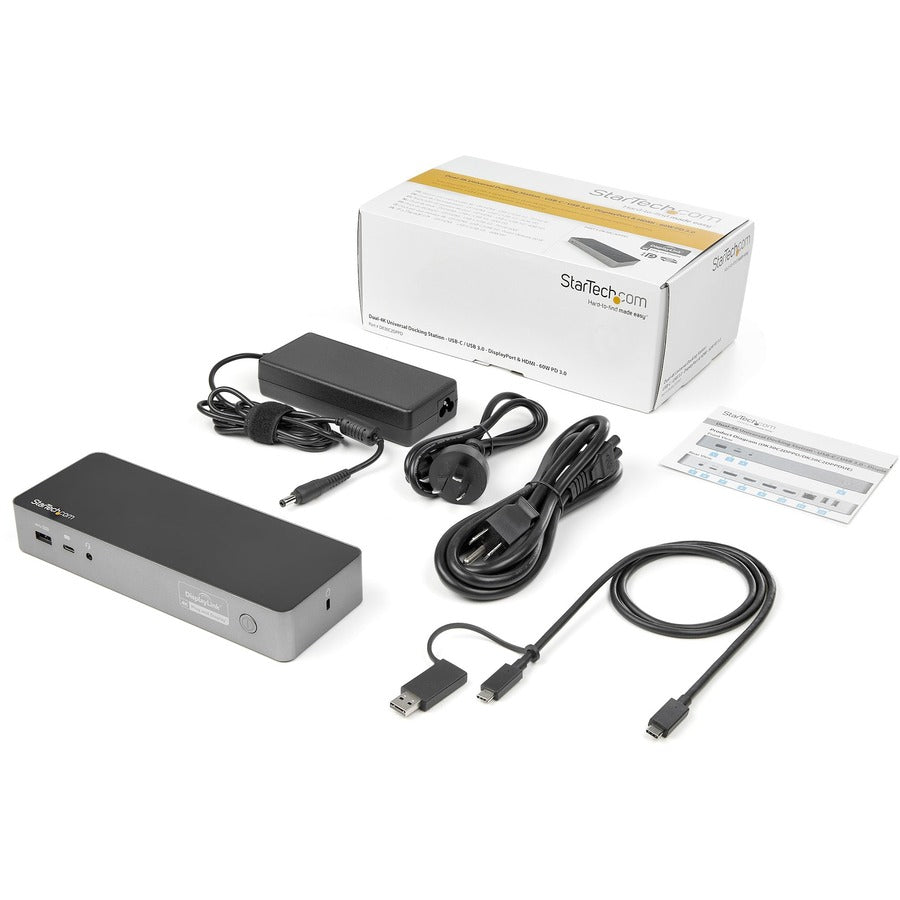

- Package Contents :
- Dual 4K Universal Laptop Docking Station - USB- C/USB 3.0 - 60W PD
- 1 x USB-C Cable (with Attached USB-C to USB-A Adapter)
- 1 x Universal Power Adapter (NA/JP, ANZ)
- 1 x Quick-Start Guide
- Screen Mode Supported : 4K
- DisplayPort : Yes
- USB Type-A : Yes
- Manufacturer : StarTech.com
- Supported Resolutions : 4096 x 2160,5120 x 2880
- Environmental Certification : RoHS,WEEE
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Number of USB Type-A Ports : 3
- Number of Displays Supported : 2
- Number of DisplayPort Outputs : 2
- Audio Line Out : Yes
- Number of USB Type-C Ports : 1
- Limited Warranty : 3 Year
- Network (RJ-45) : Yes
- Product Type : Docking Station
- Host Interface : USB Type C
- HDMI : Yes
- Compatibility :
- Lenovo Thinkpad T Series
- Lenovo X1 Carbon
- Microsoft Surface Pro7
- Apple MacBook
- Apple MacBook Pro
- Apple MacBook Air
- USB-C Chromebooks
- Country of Origin : China
- Connectivity Technology : Wired
- Product Color : Black,Space Gray
