Description

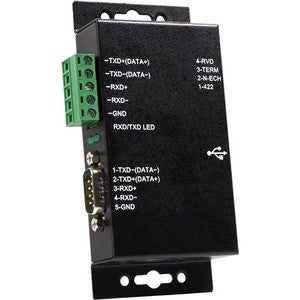

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Optical Isolation and Surge Protection (2500 Vrms)
- Supports 4-wire RS422 and 2-wire RS485 applications
- RS422/485 Baud rate up to 921.6 Kbps

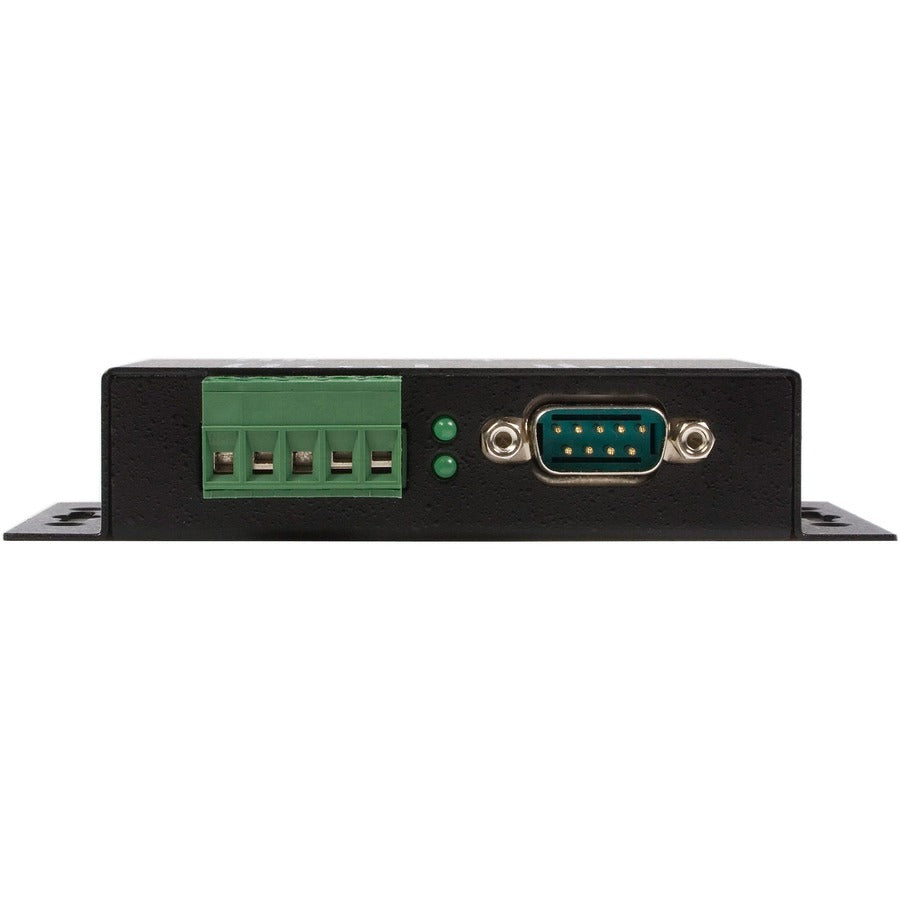

- Supports DB9 and terminal block connector
- Compatible with both USB 2.0 and USB 1.1
- RS-485 mode supports Auto Transceiver Turn Around (ATTA)
- Provides one RS422/485 port while powering the device through USB
- Environmental Certification : RoHS,WEEE,REACH
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Limited Warranty : 2 Year
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
- 1 x 6ft USB A to B Cable
- 1 x Driver CD
- 1 x User Manual
- Product Type : Serial Adapter
- Manufacturer : StarTech.com
- Product Model : ICUSB422IS
- Country of Origin : Taiwan
- Packaged Quantity : 1
- Platform Supported : PC,Linux,Mac
- Number of Serial Ports (External) : 1
- Host Interface : USB 2.0 Type B
