Description
Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology's 5-year limited warranty.
Powerful NAS Solution in 1U Form Factor

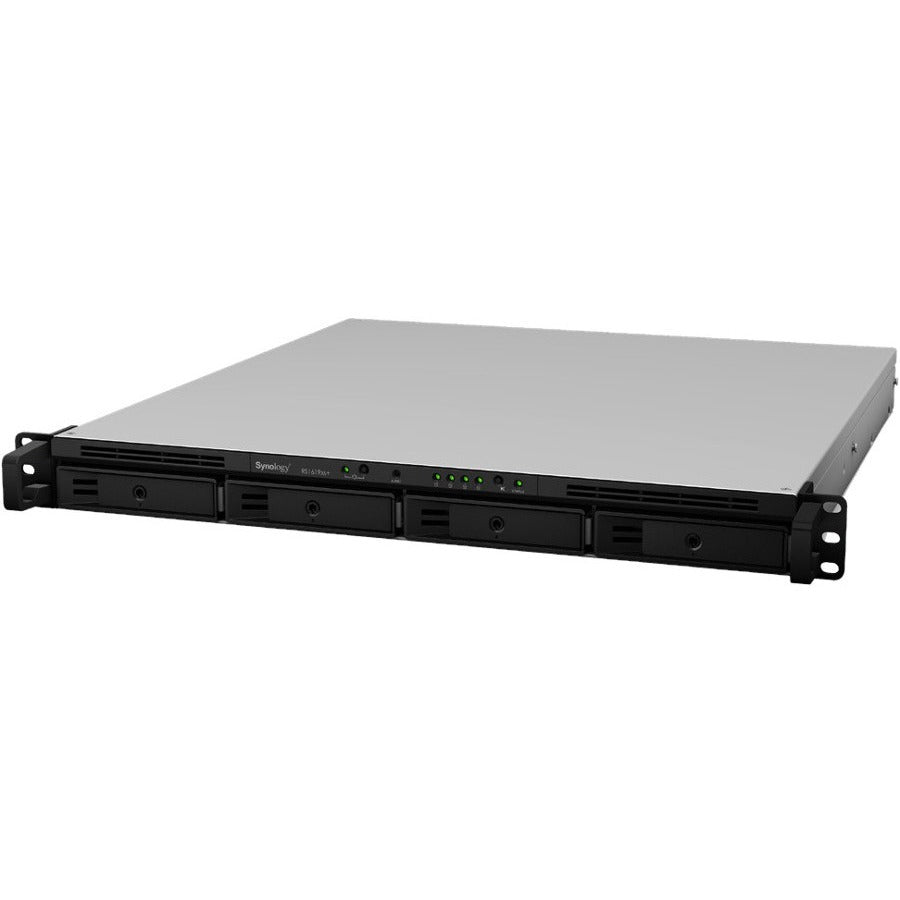

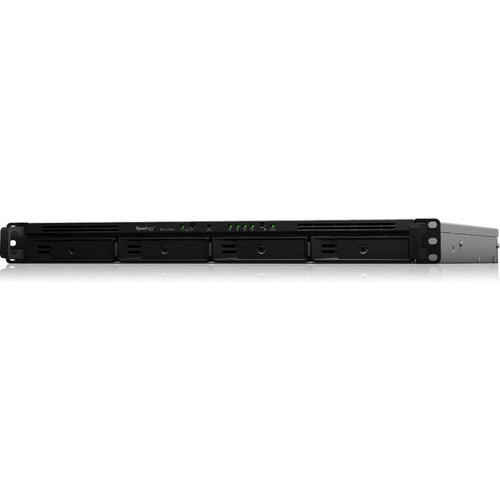

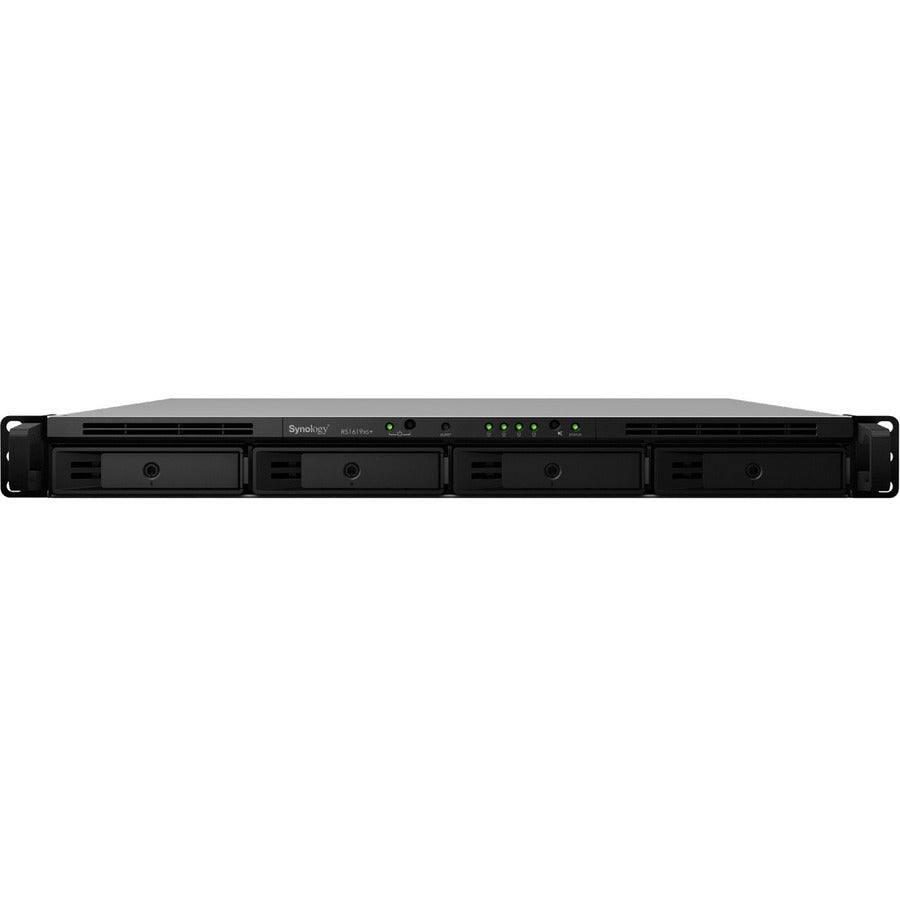

Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.
RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit2. Storage capacity can be expanded according to your business needs with minimal effort.
Enterprise-Grade Applications
Powered by the innovative Synology DiskStation Manager (DSM), RS1619xs+ comes fully-equipped with applications and features designed specifically for large-scale businesses:
RS1619xs+ introduces the Btrfs file system, bringing the most advanced storage technologies to meet the management needs of modern businesses:
Powerful NAS Solution in 1U Form Factor
Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.
RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit2. Storage capacity can be expanded according to your business needs with minimal effort.
Enterprise-Grade Applications
Powered by the innovative Synology DiskStation Manager (DSM), RS1619xs+ comes fully-equipped with applications and features designed specifically for large-scale businesses:
- Windows® AD and LDAP support allows easy integration with existing business directory services.
- Windows ACL support provides fine-grained access control and efficient privilege settings, allowing RS1619xs+ to fit seamlessly into existing infrastructure.
- Internet file access is simplified by the encrypted FTP server and the web-based file explorer Synology File Station. HTTPS, firewall, and IP auto-block support ensures file sharing over the Internet is protected with a high level of security.
- Application Privileges controls access to applications and packages based on each individual account, user group, or IP address.
RS1619xs+ introduces the Btrfs file system, bringing the most advanced storage technologies to meet the management needs of modern businesses:
- Advanced snapshot technology with customizable backup schedule allows shared folders to be backed up in a minimum 5-minute interval, without consuming heavy system resources.
- File and folder level data restoration brings huge conveniences and saves time for users who wish to restore only a specific file or folder.
- Flexible Shared Folder and User Quota System provides comprehensive quota control on all user accounts and shared folders.
- File self-healing: Btrfs file system is able to auto-detect corrupted files with mirrored metadata and recover broken data using the supported RAID volumes, which include RAID1, 5, 6, and 10.
- A cutting-edge iSCSI service built for IT administrators that offers advanced LUN and provides lightning-fast snapshot creation, recovery, and cloning.
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.20 ghz processor
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Memory Technology : DDR4 SDRAM
- Standard Memory : 8 GB
- Manufacturer Website Address : http://www.synology.com
- Number of Power Supplies Installed : 2
- Number of Total Expansion Bays : 4
- Country of Origin : Taiwan

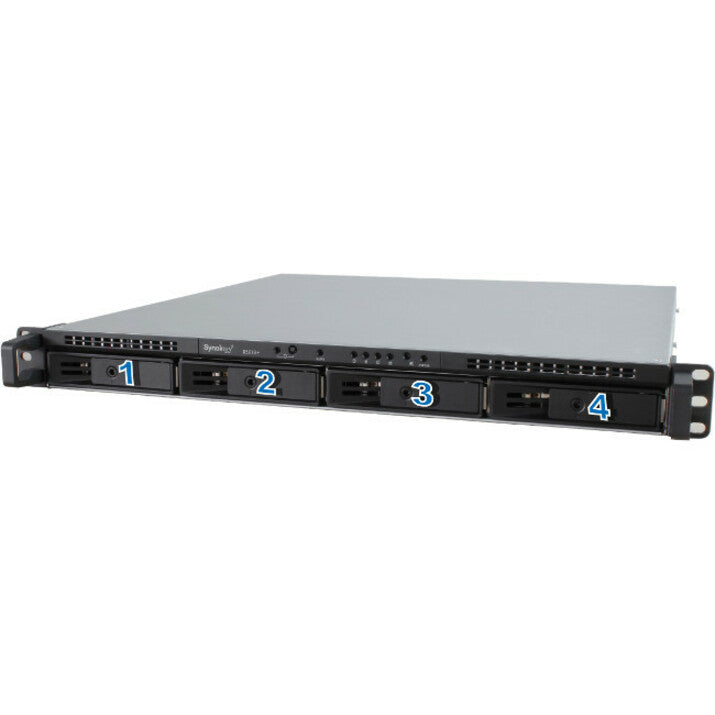

- Number of 2.5"/3.5" Bays : 4
- Processor Core : Quad-core (4 Core)
- Processor Manufacturer : Intel
- Product Series : XS+
- Controller Type : Serial ATA
- RAID Supported : Yes
- Operating System : DiskStation Manager
- Rack Height : 1U
- Processor Type : Xeon
- Number of Solid State Drive Supported : 4
- Expansion Slot Type : PCI Express 3.0 x8
- Number of Solid State Drive Installed : No
- Product Line : RackStation
- Protocols : iSCSI,LDAP,HTTP,HTTPS,SMB,AFP,NFS,WEBDAV,CalDAV,Telnet,SSH,SNMP,PPTP,L2TP,SSL/TLS,SFTP,FTP,TFTP,TCP,IP,SMTP,POP3,IMAP,DNS
- Number of Hard Drives Supported : 4
- Number of Hard Drives Installed : No
- Number of Total Expansion Slots : 1
- Form Factor : Rack-mountable
- Manufacturer : Synology, Inc
- Product Type : SAN/NAS Storage System
- Limited Warranty : 5 Year
- Ethernet Technology : Gigabit Ethernet
- Product Model : RS1619XS+
- Network (RJ-45) : Yes
- Maximum Power Supply Wattage : 150 W
- Processor Model : D-1527
- Processor Speed : 2.20 GHz
- Total Number of USB Ports : 2

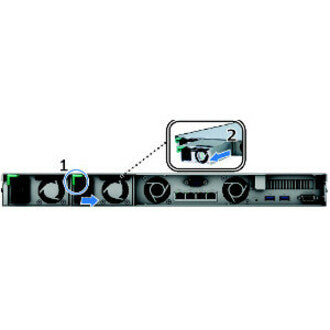

- Redundant Power Supply : Yes
