Description

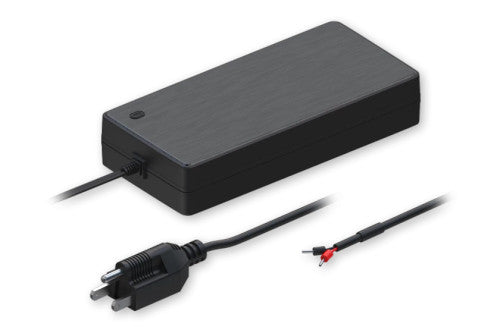

US 2-PIN POWER SUPPLY, 250W PR320USA
-
GENERAL
-
Input voltage
100 – 240 VAC
-
Input frequency
50 / 60 Hz
-
Input current
3.9 A
-
Input connector
US (Type A)
-
Output voltage
54 VDC
-
Output current
4.62 A
-
Output connector
2-pin, with cord end terminals
-
Weight
910 g
-
ADDITIONAL
-
Input voltage range
90 – 264 VAC
-
Input frequency range
47 – 63 Hz
-
Maximum input inrush current
60 A
-
Output voltage maximum deviation
51.3 – 56.7 VDC
-
Short circuit protection
✓
-
HIPOT (dielectric withstand test)
Primary to Secondary: 1500 VAC
-
Certification
Safety: IEC62368-1 (CB Scheme), UL 62368-1:2014, CAN/CSA-C22.2 No. 62368-1-14
EMC: FCC Part 15:2019 / ANSI C63.4:2014
