Description

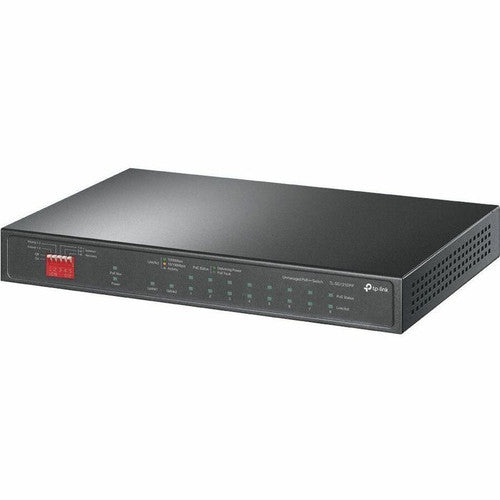

TL-SG1210PP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. They can automatically detect and supply power with those IEEE 802.3af/at/bt compliant Powered Devices (PDs) at port 1-2 and IEEE 802.3af/at compliant Powered Devices (PDs) at port 3-8.
Overload Arrangement
TL-SG1210PP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ? 123 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 ......> port 8): This function will help protect the system when the system power is overloaded. For example, port 3, 4, 5 and 6 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 1 with 35 W, and then the system will cut off the power of port 6 because of the overloaded power, this means port 3, 4 and 5 will use 25 W respectively and port 1 will use 35 W, no power will be supplied to port 6.
- Cascade to other network devices through the uplink port to expand your local area network
- Expand your network capacity with the help of 10 networking ports and transfer your data quickly and easily
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Power Source : DC,Power Adapter,PoE++
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : Desktop,Wall Mountable
- Manufacturer Website Address : http://www.tp-link.com
- Uplink Port : Yes
- Manufacturer : TP-LINK Technologies Co., Ltd
- Product Model : TL-SG1210PP
- Features : Fanless
- Manageable : No
- Network Technology : 1000Base-X,10/100/1000Base-T
- Ethernet Technology : Gigabit Ethernet
- Layer Supported : 2
- Shared SFP Slot : Yes
- PoE Budget : 123 W
- Input Voltage : 53.5 V DC
- Port/Expansion Slot Details : 2 x Gigabit Ethernet PoE++,6 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Combo,1 x Gigabit Ethernet Network Port
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 1
- Networking Standards : IEEE 802.3af,IEEE 802.3at,IEEE 802.3x,IEEE 802.1p,IEEE 802.3bt,IEEE 802.3i,IEEE 802.3u
- Total Number of Network Ports : 10
- Power Consumption : 144.10 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Number of SFP Slots : 1
- Expansion Slot Type : SFP (mini-GBIC)
