Description

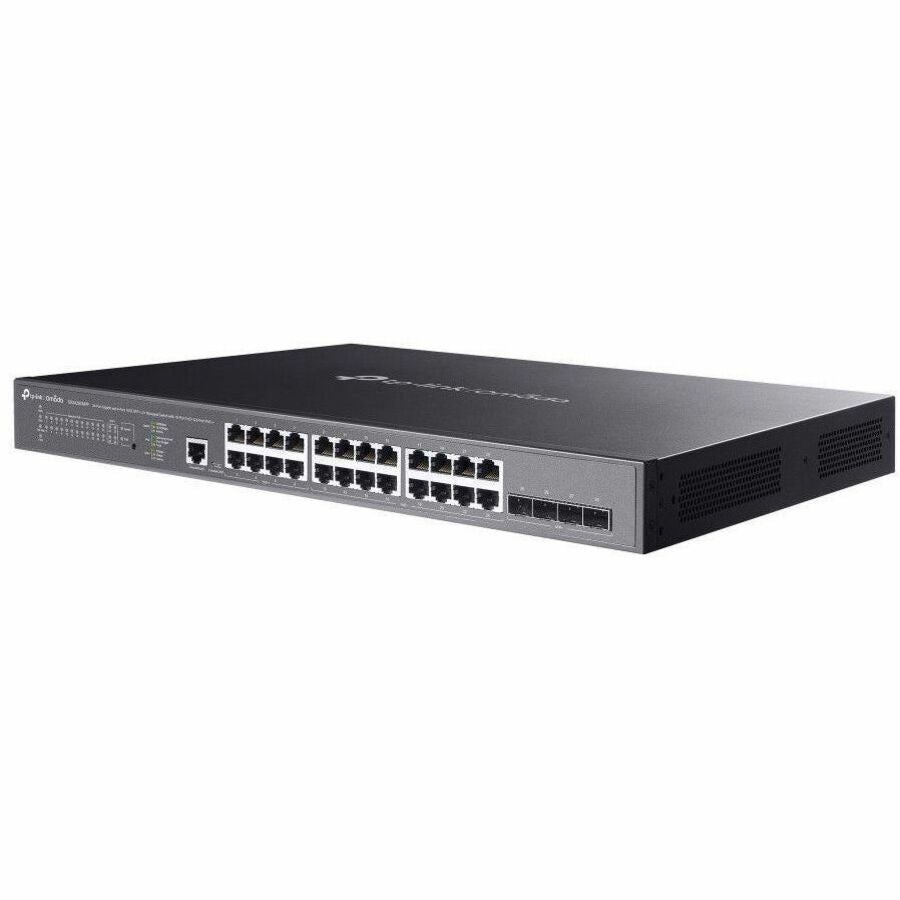

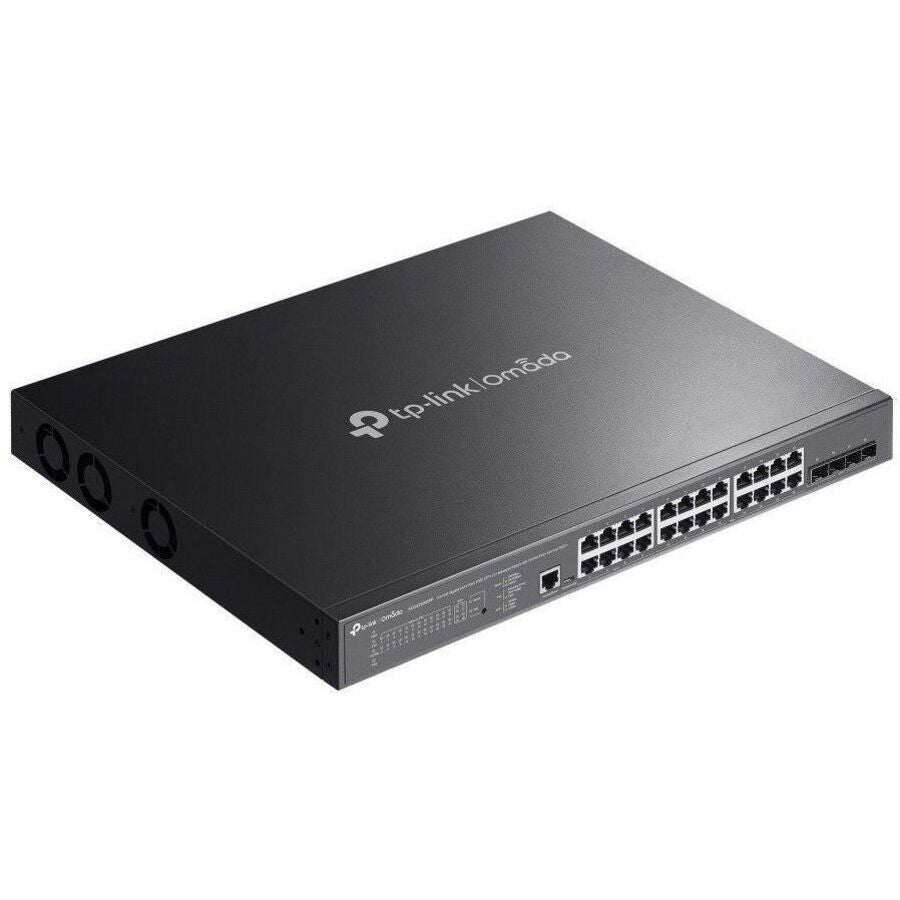

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
- 4 SFP+ 10 Gbps slots
- 8 � Gigabit 802.af/at/bt PoE++ ports (90W maximum PoE budget for each port)
- 16 � Gigabit 802.3af/at PoE+ ports (30W maximum budget for each port)
- Total PoE budget of 500W*
- Centralized cloud management via web or Omada app
- Autonomous management via Web, CLI, SNMP and RMON
- Static routing, VLAN, ACL, QoS, IGMP snooping, OAM and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal housing and rack-mountable design
- 24 � Gigabit RJ45 ports
- (8 � PoE++, 16 � PoE+)
- 4 SFP+ 10 Gbps slots
- Total PoE budget of 500W (maximum 90W for each PoE++ port)
- Centralized administration
- Omada app
- Zero-touch provisioning
- Ethernet Ring Protection Switching
- Static routing
Software-defined networking (SDN) with cloud access
Remotely manage your access points, switches and gateways across multiple sites from a single interface.
Multiple application scenarios
Monitoring
Works with IP cameras
Conference call
Works with IP phones
WiFi coverage
Works with hotspots
Wired Connections
Works with non-PoE devices such as PCs and printers
- 4� 10 Gbps SFP+ slots
- 8� Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 16� Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 500 W total PoE budget*
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
